Temperature Controller

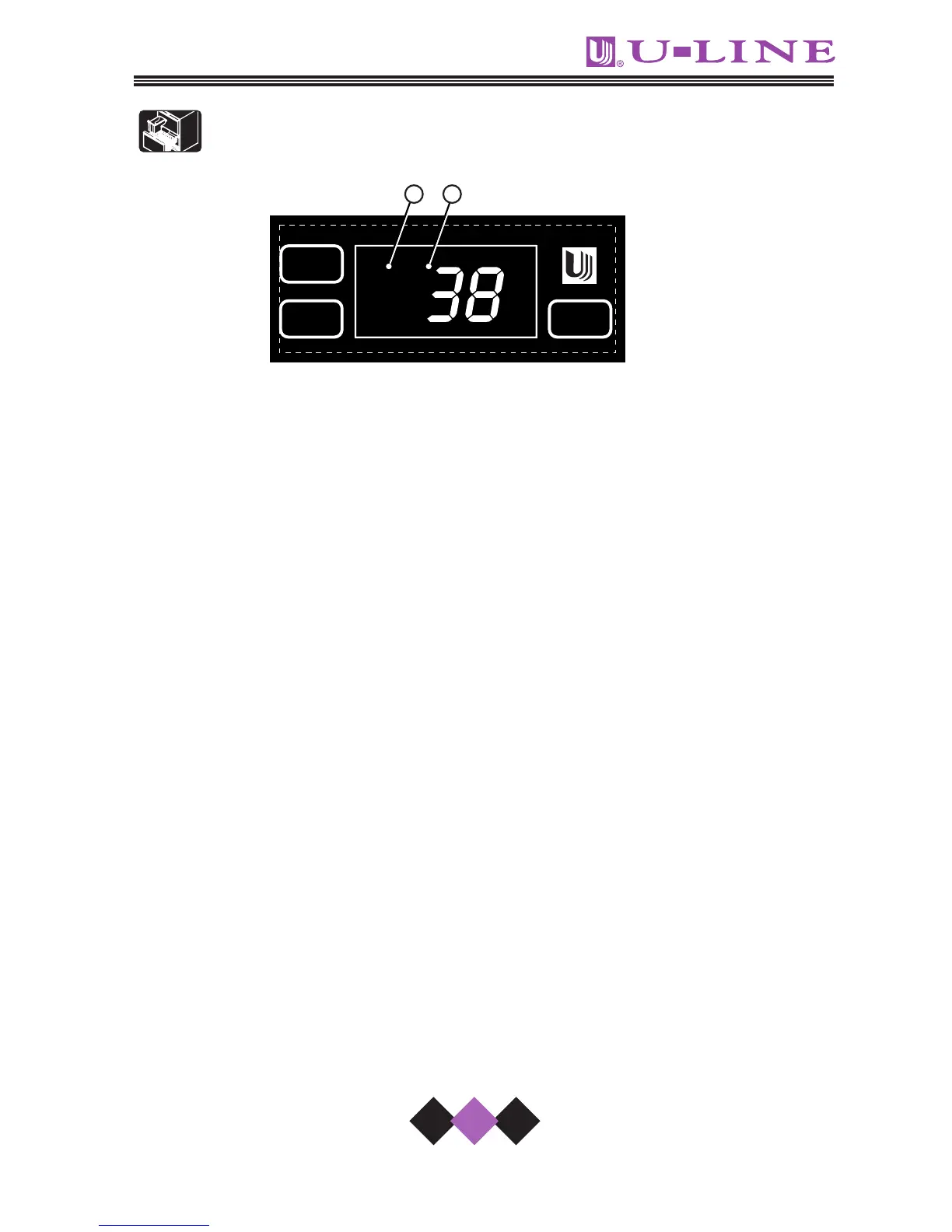

Figure 22
The temperature controller (Figure 22) is located in the top
drawer. It consists of an LED display, two LED status indicator lights and
three touch pad buttons. The LED display shows the refrigerator
temperature set point and is calibrated in degrees Fahrenheit. The
controller is factory programmed for a set point of 38°F for the top drawer
which will show when the unit is first powered up. The factory set point
for the ice compartment is 0°F.
To display actual refrigerator temperature, press the “WARMER” button
momentarily. A solid status indicator light (1, Figure 22) will show the air
temperature reading in the cabinet for approximately 10 seconds.
To adjust the temperature set point, press the “SET TEMP”
button momentarily; the display will flash. Press the “WARMER” or
“COOLER” button as desired to change the set point. When the desired
set point shows on the display, you can press the “SET TEMP” again or
wait 10 seconds and the new set point will be saved and the display will
stop flashing. Wait 24 hours for the temperature to stabilize before
checking the actual temperature again. The refrigerator set point range
is 34°F to 45°F.
To Next Page
