11

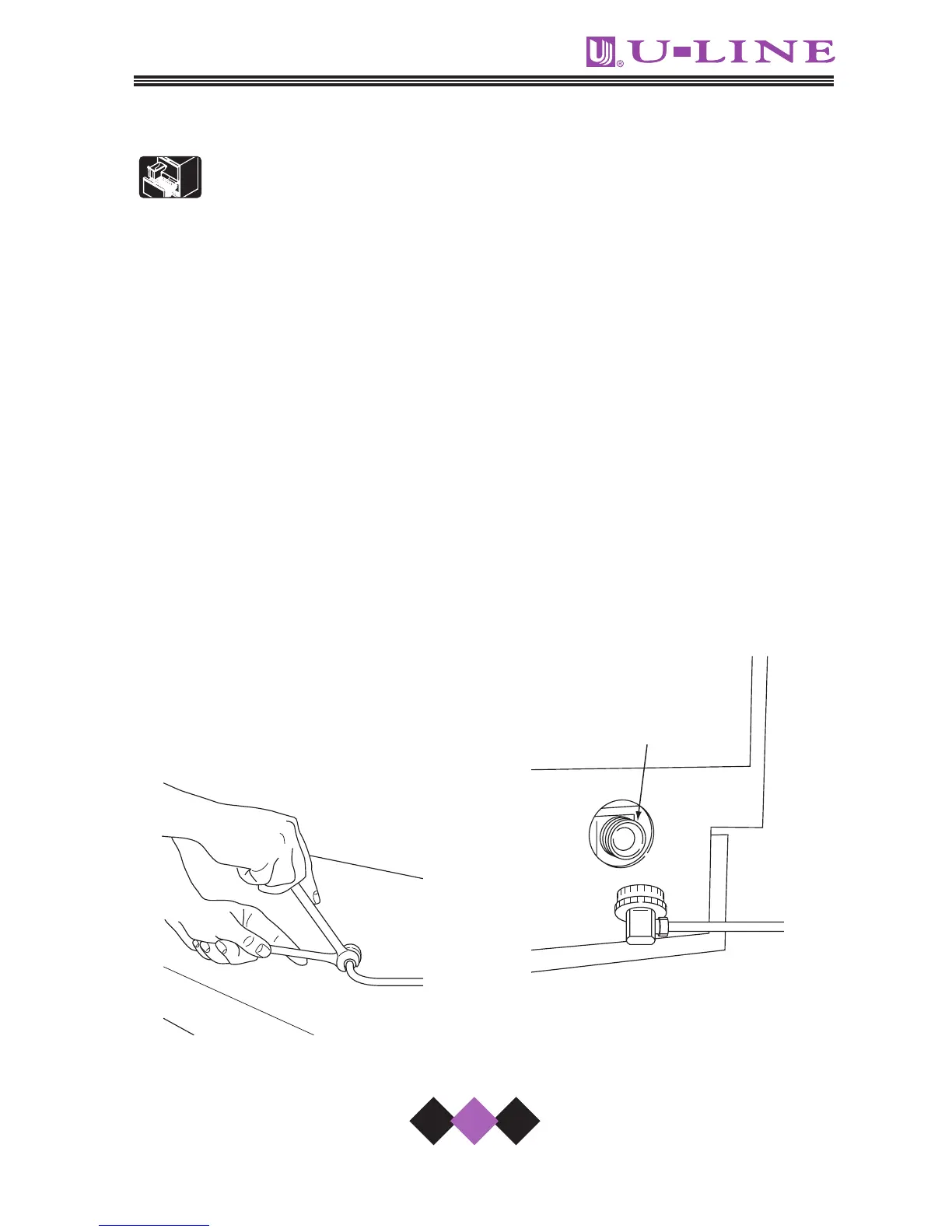

CONNECTING THE WATER SUPPLY
Install a 1/4 inch outside diameter copper water line (not
supplied with unit) from the nearest COLD water pipe. When
connecting the water supply, follow these guidelines:
• Review the local plumbing codes before you install the unit.
• In most instances, the cold water supply will come from the base-
ment through a hole in the floor.
• The water pressure should be between 15 and 150 psi.
• Install a shut-off valve in the 1/4 inch outside diameter supply line
(not supplied with unit).
• Connect sufficient tubing to the unit to allow the unit to be moved
for cleaning and servicing. However, make certain that the tubing
is not pinched or damaged during installation.
• U-Line recommends the use of copper tubing for installation.
1. Locate the compression fitting
and ferrule packed in the unit.
Slide the compression fitting
and ferrule over the 1/4 inch
outside diameter water supply
line. Do not use thread seal-
ing compound or tape. Using
two wrenches, tighten the
compression fitting on the
supply line (see Figure 7). Do
not overtighten.
Figure 7
2. Carefully bend the water supply
line into position and connect
the line to the solenoid valve
(see Figure 8). Avoid kinking
the water supply line.
Figure 8
