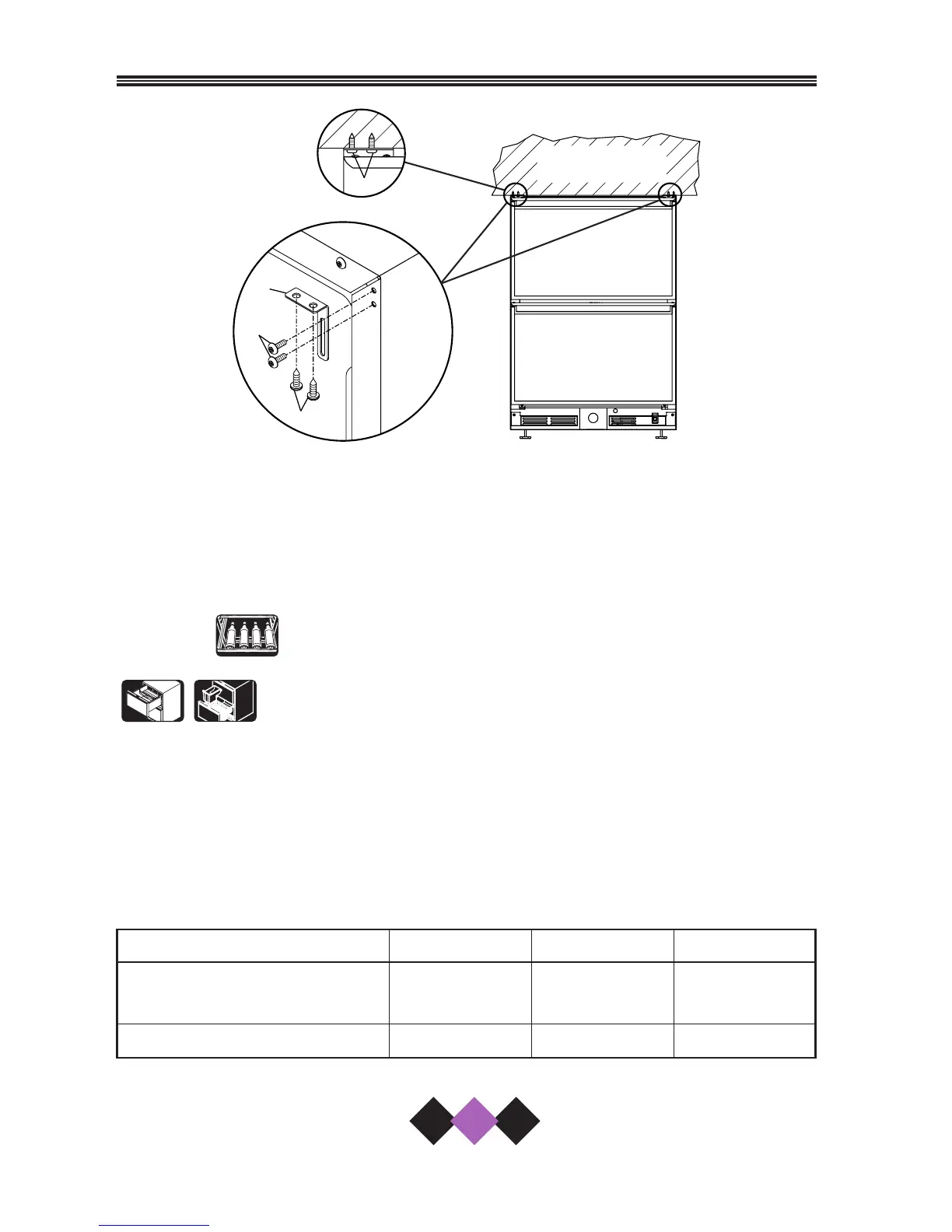

Figure 11
CUSTOM DRAWER PANELS
NOTE
The is not designed to accept custom drawer panels.
Two types of custom drawer panels can be installed on
your U-Line unit to harmonize with or accent the
surrounding decor.
FULL OVERLAY DRAWER PANEL
Full overlay drawer panels completely cover the drawer frames and han-
dle to give a built-in appearance. See Table 1 for full overlay drawer panel
dimensions (Figure 15, see page 15).
Table 1. Full Overlay Panel Dimensions
A
1
B
2
C
1
Top panel with 1/2" gap
11-13/16" 14-3/4" 1"
between drawers
All bottom panels 11-13/16" 14-3/4" 1"
1
Screw hole location
2
Overall panel height
COUNTER TOP
OR WALL HEADER
ATK001a
C
C
B
A
