User’s Manual
Temperature Controller

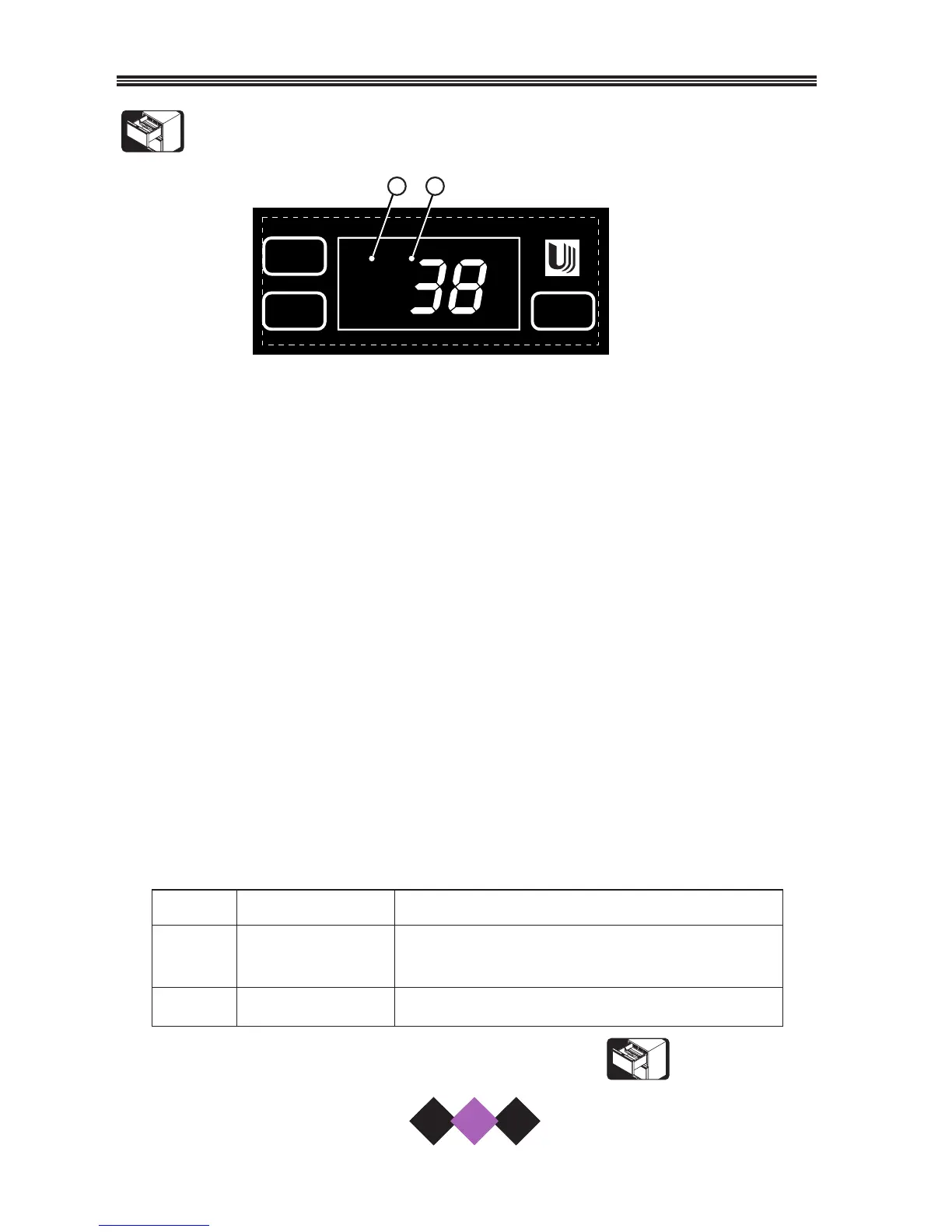

Figure 21
The temperature controller (Figure 21) is located in the top
drawer. It consists of an LED display, two LED status indicator lights and
three touch pad buttons. The LED display shows the temperature set
point and is calibrated in degrees Fahrenheit. The controller is factory
programmed for a set point of 38°F which will show when the unit is first
powered-up.
To display actual temperature, press the “WARMER” button momentari-
ly. A solid status indicator light (1, Figure 21) will show the air tempera-
ture reading in the cabinet for approximately 10 seconds.
To adjust the temperature set point, press the “SET TEMP”
button momentarily; the display will flash. Press the “WARMER” or
“COOLER” button as desired to change the set point. When the desired
set point shows on the display, wait 10 seconds and the new set point
will be saved. Wait 24 hours for the temperature to stabilize before
checking the actual temperature again. The refrigerator set point range
is 34°F to 60°F.
Refer to Table 1 to determine indicator light status.
LED Status Indicates
1• Solid • Refrigerator Temperature displayed
• Flashing • Not Applicable
2• Flashing • Open Thermistor – call for service
Table 1. Indicator Light Status -
