15
OVERLAY PANEL KIT PARTS
• The total weight of both drawer panels must not weigh
more than 20 lbs.
• The thickness of the drawer panel must be 3/4".

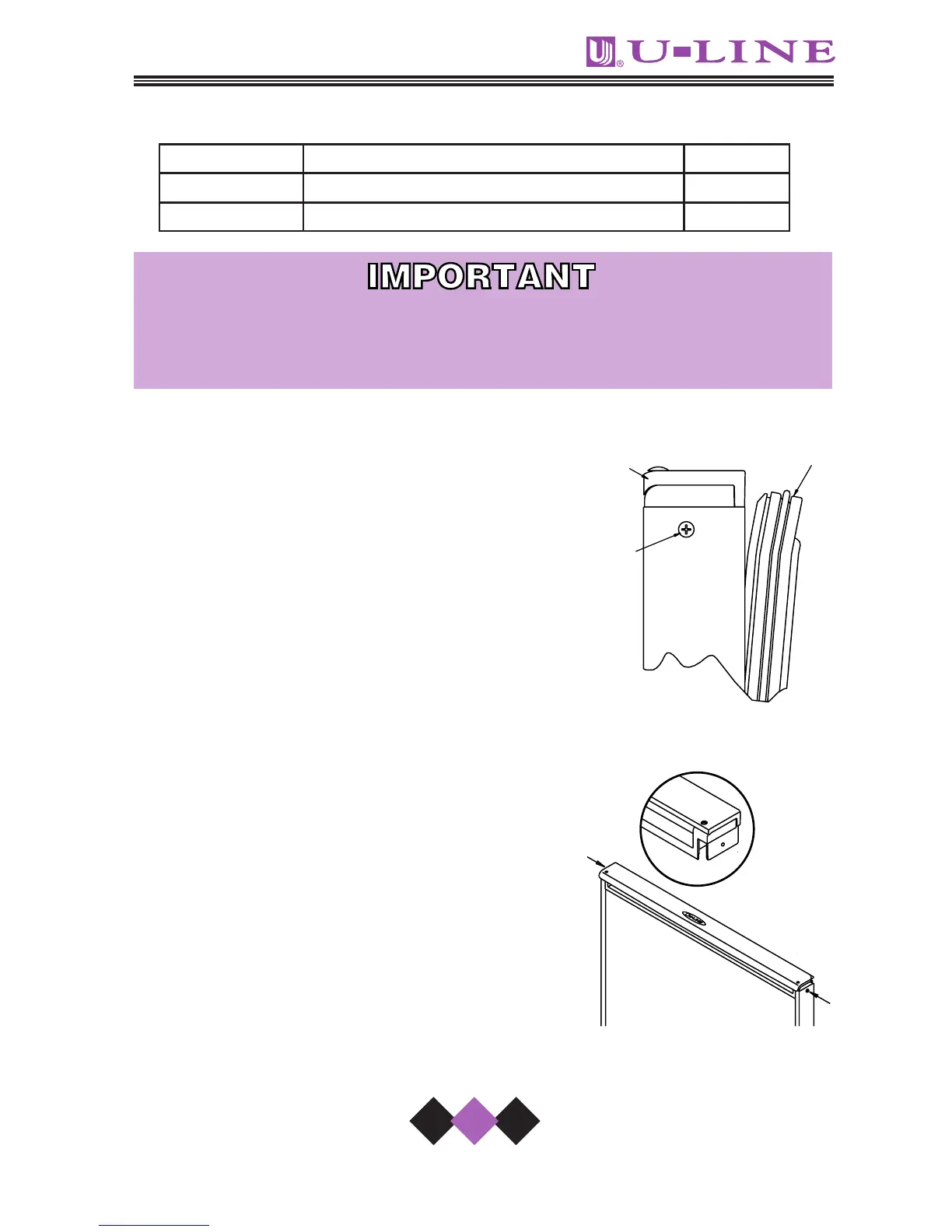

Remove existing drawer front from cabinet:
1. Open drawer. Pull door gasket
(Figure 12) out of the groove (top
edge of door only). Start in the mid-
dle and pull outward, moving
toward the edge. This may take
some force.
2. Remove the two screws located on
both sides of the lower handle.
Remove the handle (Figure 13).
3. Slide the existing drawer panel and
cardboard spacer out of the
drawer frame. Discard the spacer.
Attaching the full overlay panel:
4. If required, attach optional cabinet
handle hardware to the overlay panel
at this time. If an optional cabinet
handle is installed, make sure the
mounting screw heads are counter-
sunk.
Part Number Description Quantity
42120 Spacer Nylon 3/8 OD x .19 ID 10
42121 Screw #10 x 5/8 Round Head 10
