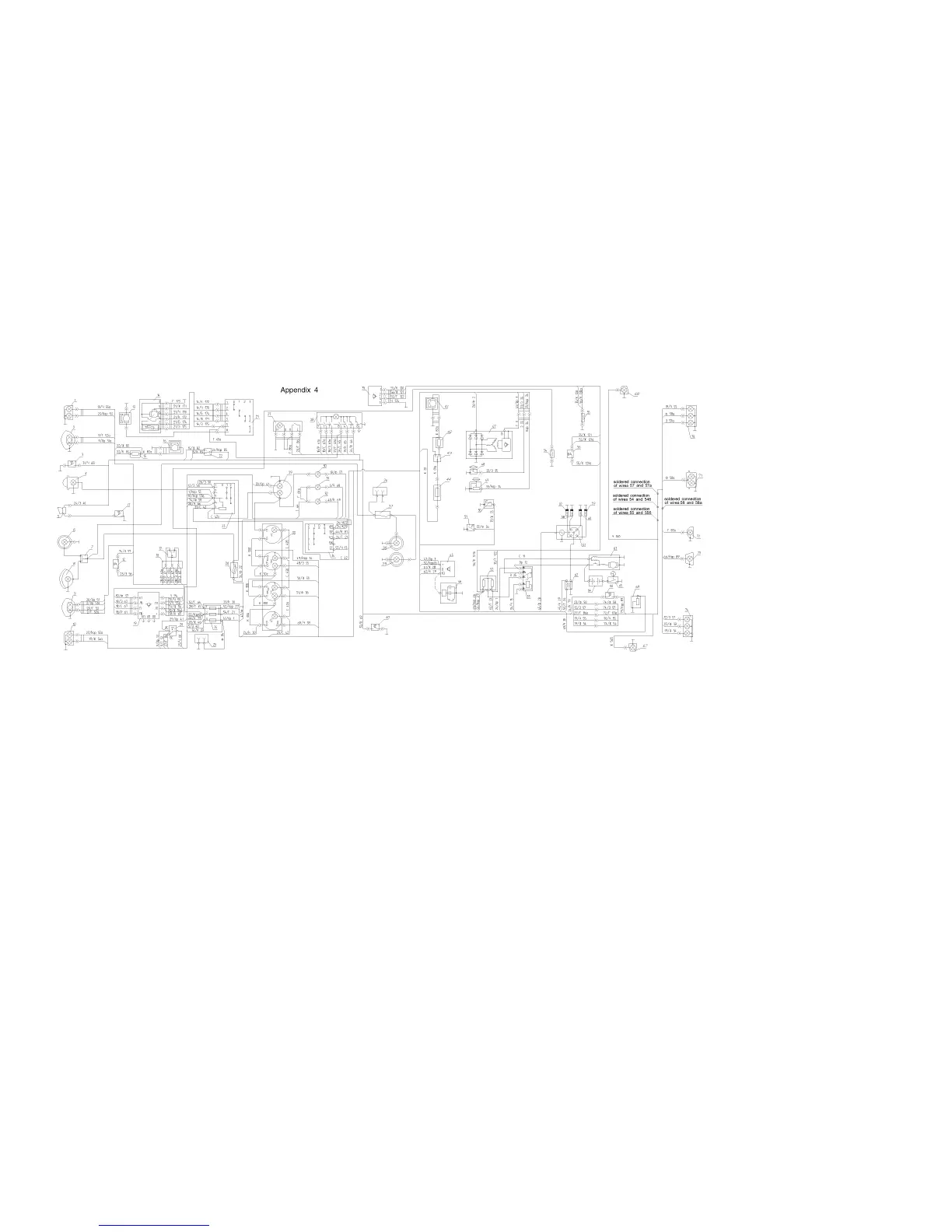

Fig. 2. Wiring Diagram of Automobiles ÓÀÇ-3962, ÓÀÇ-2206, ÓÀÇ-3909:
1 -front lamp; 2 -headlamp; 3 -brake failure warning lamp switch; 4 -special mark lamp; 5 -horn; 6 -cab dome lamp; 7 -switch; 8 -swivelling headlamp; 9 -headlamp; 10 -front
lamp; 11 -horn button; 12 -stop-light switch; 13 -windshield washer; 14 -windshield wiper; 15 -heater resistor; 16 -heater motor; 17 -turn indicator switch; 18 -connection panel;
19 -turn indicators and emergency warning lamp relay; 20 -headlamp switch; 21 -windshield wiper switch; 22 -heater switch; 23 -main light switch; 24 -fuse unit; 25 -receptacle;
26 -thermal circuit breaker; 27 -rear fog lamp switch; 28 -emergency warning lamp switch; 29 -speedometer; 30 -turn indicator warning lamp; 31 -brake failure warning lamp;
32 -parking brake warning lamp; 33 -instrument panel; 34 -ignition switch; 35 -carburettor electronic control unit; 36 -receptacle; 37 -dome lamp switch; 38, 39 -interior dome
lamp; 40 -parking brake warning lamp switch; 41 -heater motor; 42 -heater resistor; 43 -heater switch; 44 -fuse; 45 -transistor commutator; 46 -emergency vibrator; 47 -alternator;
48 -oil emergency pressure transmitter; 49 -oil pressure transmitter; 50 -coolant temperature transmitter; 51 -coolant emergency temperature transmitter; 52 -auxiliary resistor;
53 -starter relay; 54 -carburettor solenoid valve; 55 -carburettor electronic control solenoid valve; 56 -microswitch; 57-60 -spark plug; 61 -pickup-distributor; 62 -ignition coil;
63- starter; 65 -storage battery; 66 -ground switch; 66 -backing lamp switch; 67, 68 -side repeater; 69 -fuel level transmitter; 70 -rear lamp; 71 -licence plate lamp; 72 -rear fog
lamp; 73 -backing lamp; 74 -rear lamp
Positions 4 and 8 are not installed on the automobiles ÓÀÇ-2206, ÓÀÇ-3909
Wire Colour Code:
Á - white; Ã- blue; Æ - yellow; Ç - green; Ê- red; Êîð - brown; Îð - orange; Ñ - grey; Ô - violet; × - black
Wire designation denotes: the first one or two numerals (before a slant line) denote the instrument number in the diagram to which this wire is connected; one or several letters
(after a slant line) denote the wire colour; the last one or four signs denote the wire conventional number in the diagram
