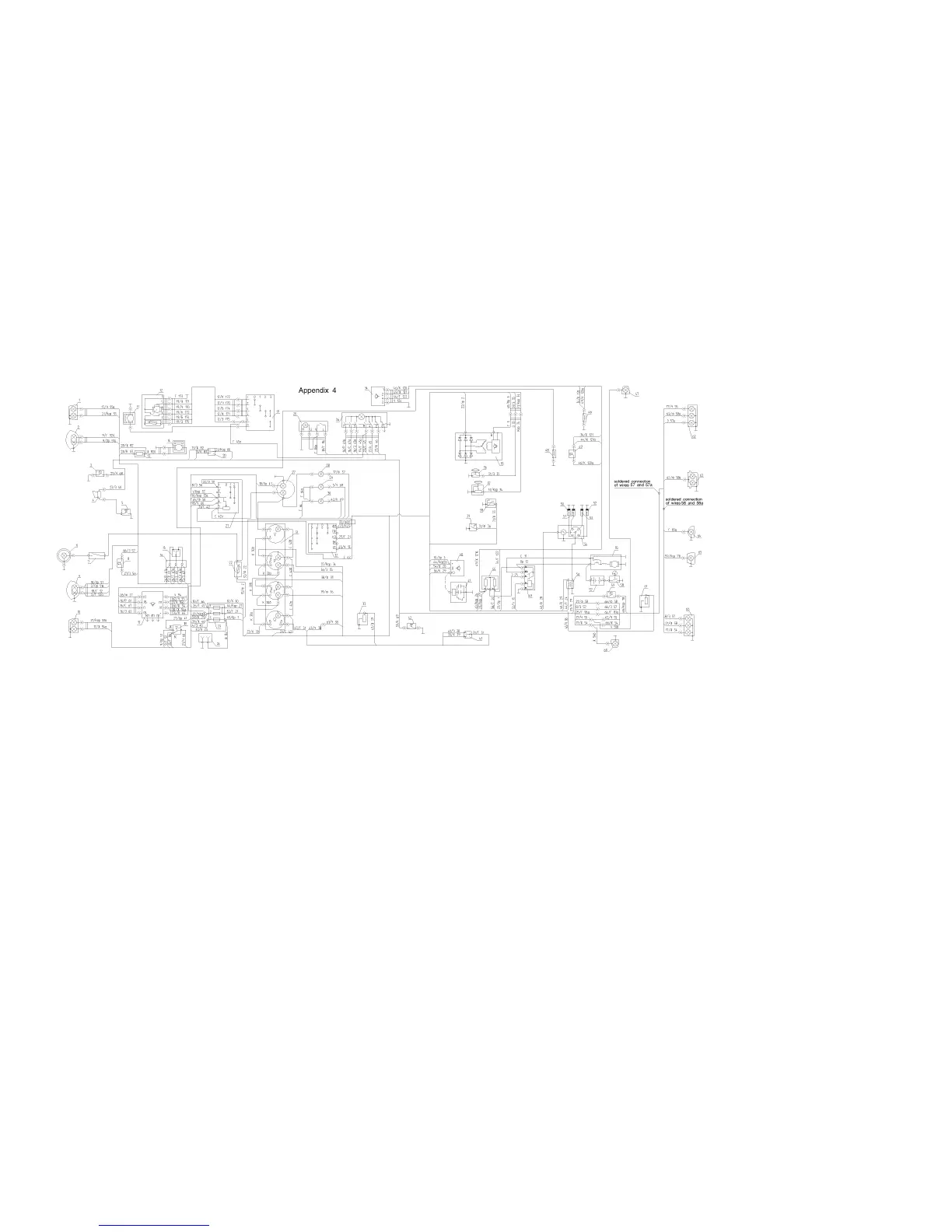

Fig. 3. Wiring Diagram of Automobile ÓÀÇ-3303:
1 -front lamp; 2 -headlamp; 3 -brake failure warning lamp switch; 4 -horn; 5 -horn button; 6 -cab dome lamp; 7 -dome lamp switch; 8 -stop-light switch; 9 -headlamp;
10 -front lamp; 11 -windshield washer; 12 -windshield wiper; 13 -heater resistor; 14 -heater motor; 15 -turn indicator switch; 16 -connection panel; 17 -turn indicators and
emergency warning lamp relay; 18 -headlamp switch; 19 -windshield wiper switch; 20 -heater switch; 21 -main light switch; 22 -thermal circuit breaker; 23 -fuse unit;
24 -receptacle; 25 -emergency warning lamp switch; 26 -rear fog lamp switch; 27 -speedometer; 28 -turn indicator warning lamp; 29 -brake failure warning lamp; 30 -parking brake
warning lamp; 31 -instrument panel; 32 -ignition switch; 33 -fuel level transmitter; 34 -carburettor electronic control unit; 35 -alternator 665.3701 or 161.3771; 36 -oil emergency
pressure transmitter; 37 -oil pressure transmitter; 38 -coolant temperature transmitter; 39 -coolant emergency temperature transmitter; 40 -transistor commutator; 41 -emergency
vibrator; 42 -parking brake warning lamp switch; 43 -fuel level gauge switch; 44 -additional resistance; 45 -starter relay; 46 -carburettor electronic control solenoid valve; 47 -side
repeater; 48 -carburettor solenoid valve; 49 -microswitch; 50-53 -spark plug; 54 -pickup-distributor; 55 -starter; 56 -ignition coil; 57 -storage battery; 58 -ground switch;
59 -backing lamp switch; 60 -side repeater; 61 -oil level transmitter; 62 -rear lamp; 63 -licence plate lamp; 64 -rear fog lamp; 65 -backing lamp; 66 -rear lamp
Wire Colour Code:
Á - white; Ã- blue; Æ - yellow; Ç - green; Ê- red; Êîð - brown; Îð - orange; Ñ - grey; Ô - violet; × - black
Wire designation denotes: the first one or two numerals (before a slant line) denote the instrument number in the diagram to which this wire is connected; one or several letters
(after a slant line) denote the wire colour; the last one or four signs denote the wire conventional number in the diagram
