59

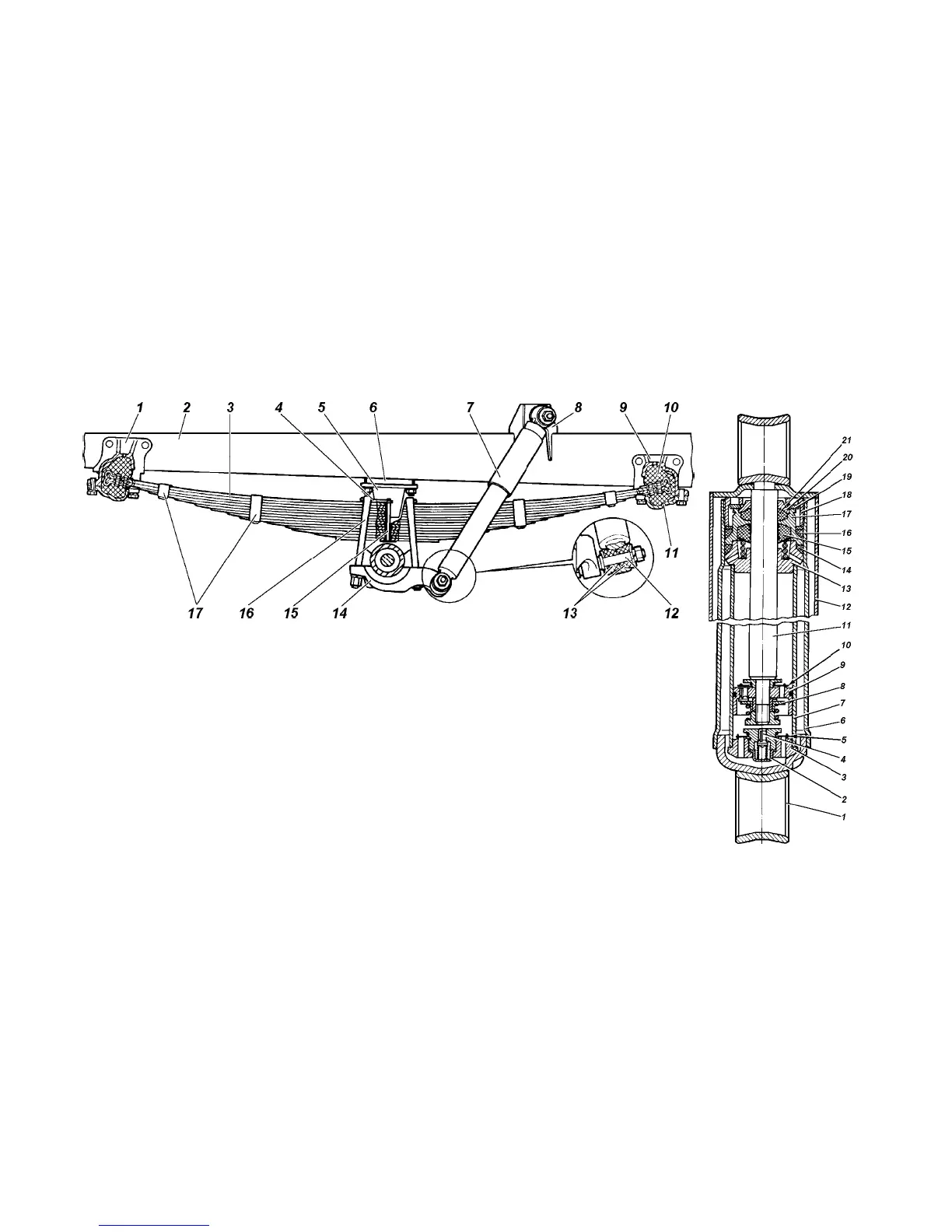

Fig. 49. Shock absorber:
1 -eye; 2 -compression valve stop; 3 -com-
pression valve body; 4 -compression valve;
5 -intake valve; 6 -reservoir; 7 -cylinder; 8 -
rebound valve; 9 -piston; 10 -by-pass valve;
11 -rod; 12 -dust shield tube; 13 -rod guide
bushing; 14 -lower sealing ring; 15 -seal; 16 -
upper sealing ring; 17 -seal holder; 18 -
reservoir nut; 19 -washer; 20 -protective ring;
21 -rod seal
Fig. 48. Front suspension:
1 -spring front hanger; 2 -frame; 3 -spring; 4 -cover plate;
5 -buffer; 6 -buffer liner; 7 -shock absorber; 8 -shock
absorber bracket; 9 -spring rear hanger; 10 -rubber pad;
11 -bracket cover; 12 -shock absorber pin; 13 -rubber
bushings; 14 -U-bolt liner; 15 -contracting bolt; 16 -U-
bolt; 17 -yokes
Note. Rear suspension design is the same
