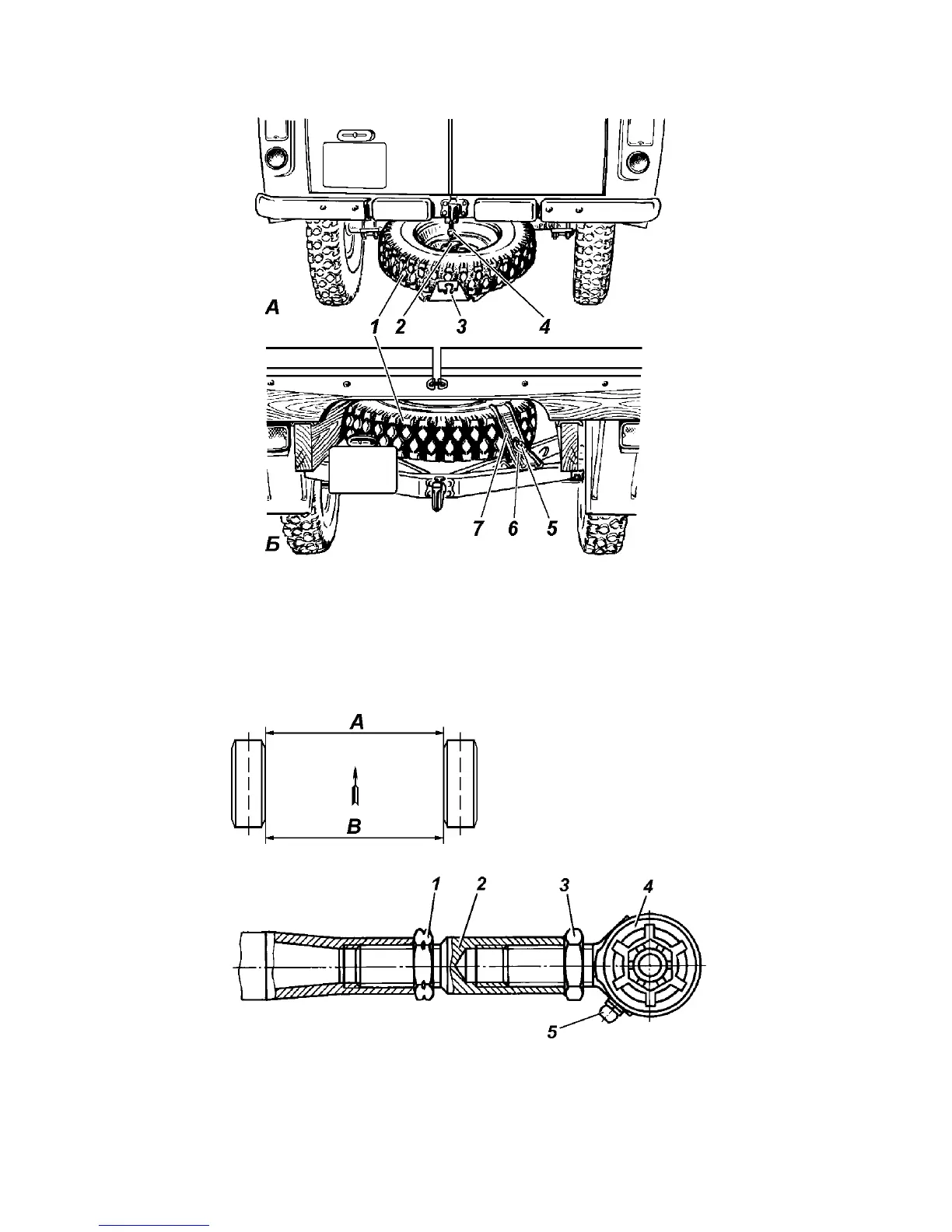

Fig. 50. Spare wheel attachment:
À - automobiles ÓÀÇ-3741, ÓÀÇ-3962, ÓÀÇ-3909, ÓÀÇ-2206, ÓÀÇ-33036,
ÓÀÇ-39094, ÓÀÇ-39095;
Á - automobile ÓÀÇ-3303;
1 -spare wheel; 2 -sector; 3 -carrier; 4 -nut; 5 -bolt; 6 -washer;
7 -bracket
Fig. 51. Wheel toe-in
Fig. 52. Steering rod end :
1 -locknut with l.h. thread; 2 -adjusting sleeve; 3 -locknut with r.h. thread; 4 -
joint; 5 -grease fitting
