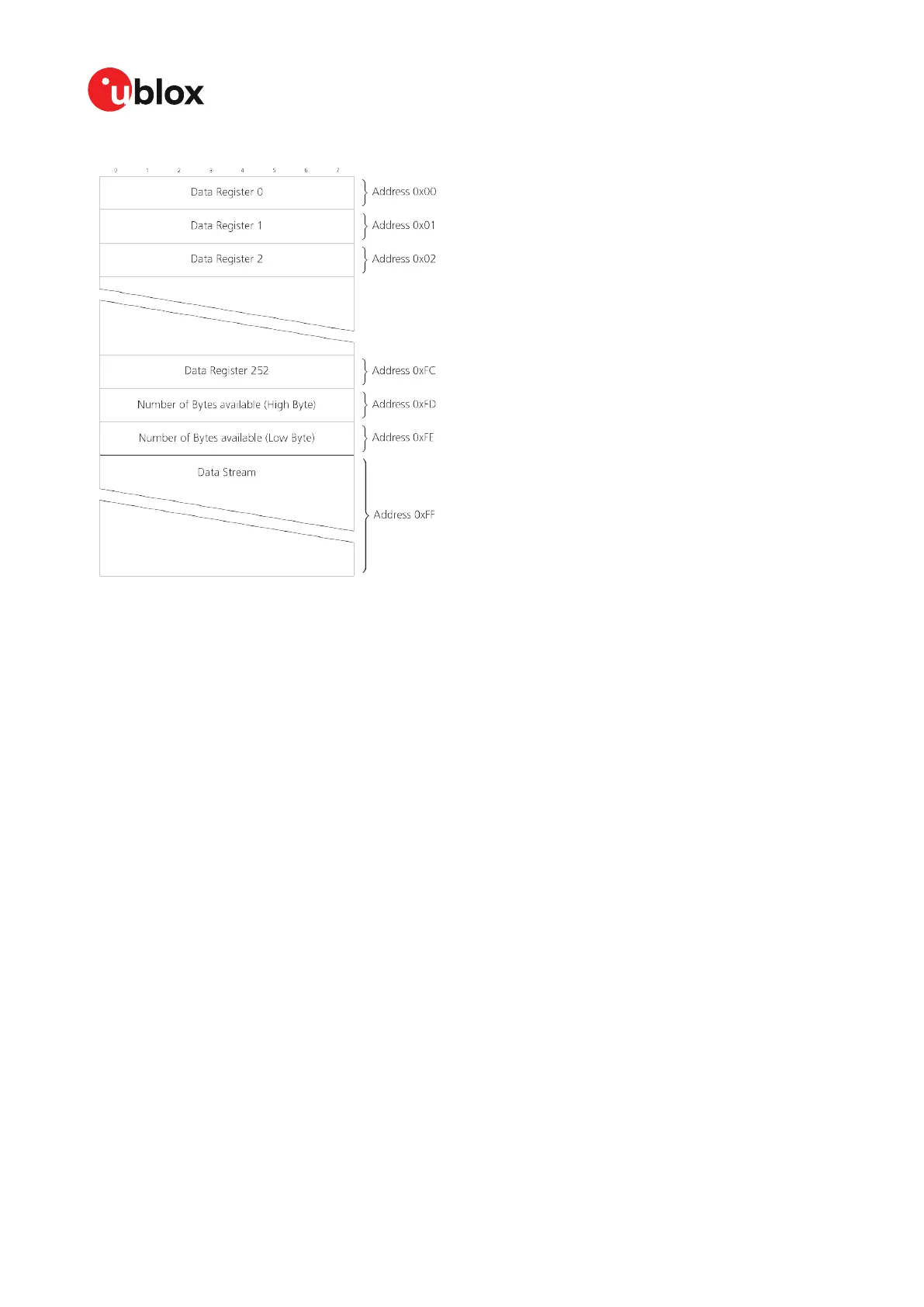

Figure 12: I2C register layout
3.4.2.2 Read access types
There are two I2C read transfer forms:
• The "random access" form: includes a slave register address and allows any register to be read.
• The "current address" form: omits the register address.
Figure 13 shows the format of the first one, the "random access" form of the request. Following
the start condition from the master, the 7-bit device address and the RW bit (which is a logic low
for write access) are clocked onto the bus by the master transmitter. The receiver answers with an
acknowledge (logic low) to indicate that it recognizes the address.
Next, the 8-bit address of the register to be read must be written to the bus. Following the receiver's
acknowledgment, the master again triggers a start condition and writes the device address, but this
time the RW bit is a logic high to initiate the read access. Now, the master can read 1 to N bytes
from the receiver, generating a not-acknowledge and a stop condition after the last byte being read.
