ZED-F9K-Integration manual

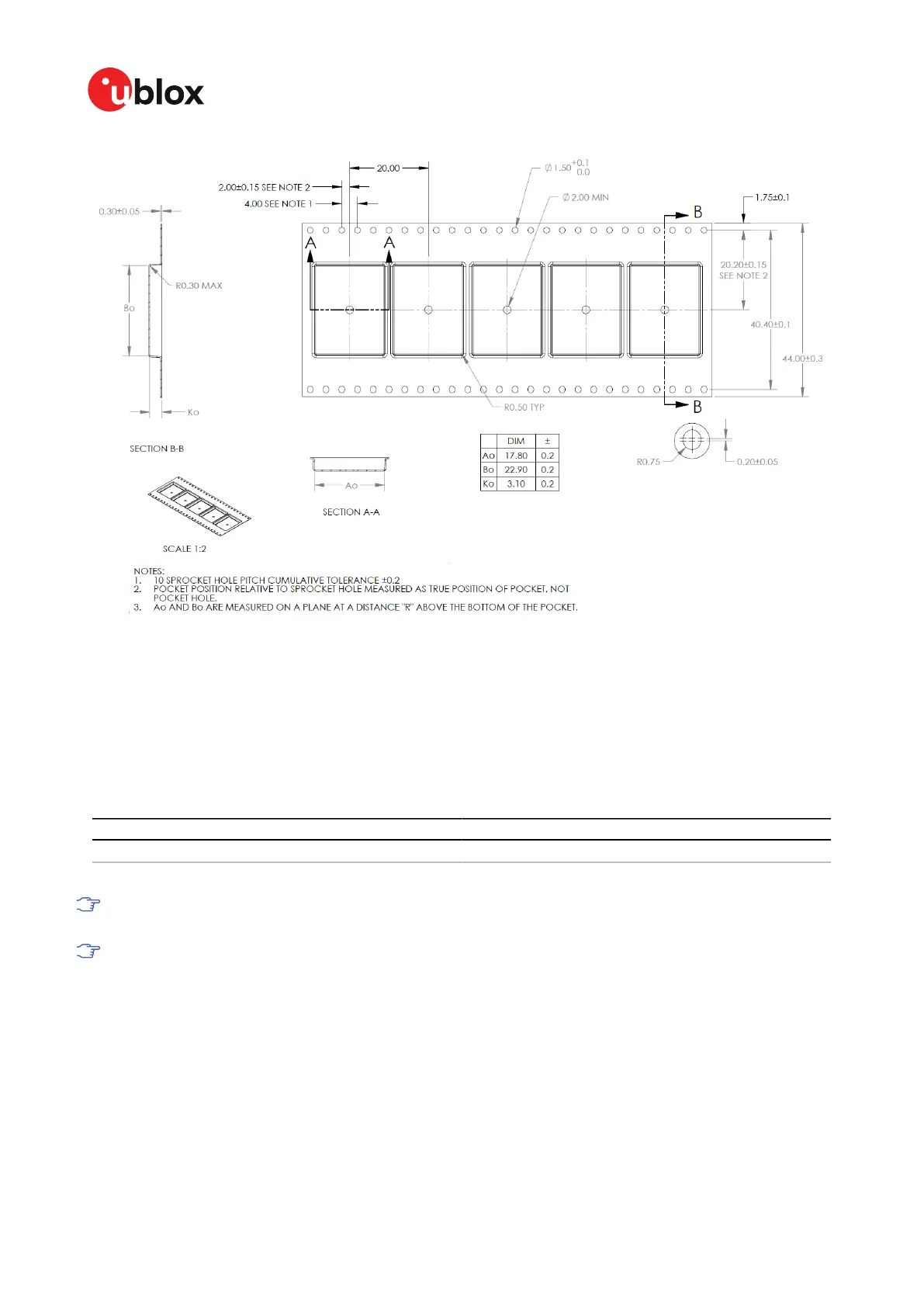

Figure 49: ZED-F9K tape dimensions (mm)
5.4 Reels
The ZED-F9K receivers are deliverable in quantities of 250 pieces on a reel. The receivers are shipped
on reel type B, as specified in the u-blox Package Information Guide [3].
5.5 Moisture sensitivity levels
The moisture sensitivity level (MSL) for ZED-F9K is specified in the table below.
Package MSL level
LGA 4
Table 26: MSL level
For MSL standard see IPC/JEDEC J-STD-020, which can be downloaded from
www.jedec.org.
For more information regarding moisture sensitivity levels, labeling, storage and drying, see
the u-blox Package Information Guide [3].
UBX-20046189 - R01
5 Product handling Page 95 of 105
C1-Public Early production information
