CONNECTING THE BATTERY
Before connecting a battery it is absolutely essential to check one
last time that you have set the parameters correctly. If the settings
are incorrect, the battery may be damaged, and could even burst
into flames or explode. To avoid short circuits between the banana
plugs, always connect the charge leads to the charger first, and
only then to the battery. Reverse the sequence when disconnecting
the pack.
Balance socket:
The balance wire attached to the battery must be connected to the
charger with the black wire aligned with the negative marking. Take
care to maintain correct polarity! (See the wiring diagram below.)

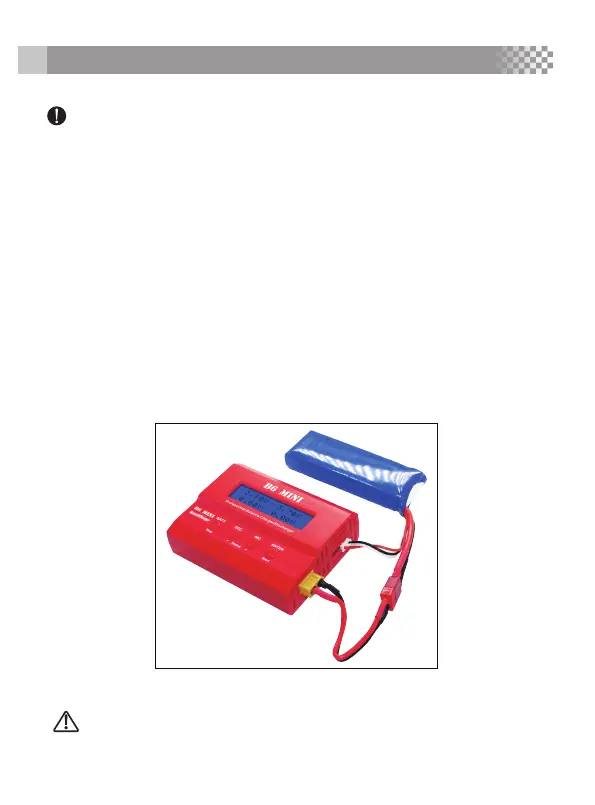

LITHIUM BATTERY CONNECTION DIAGRAM
11
This diagram shows the correct way to connect your battery to the B6
mini while charging in the balance charge program mode only.
WARNING:
Failure to connect as shown in this diagram will damage this
charge
