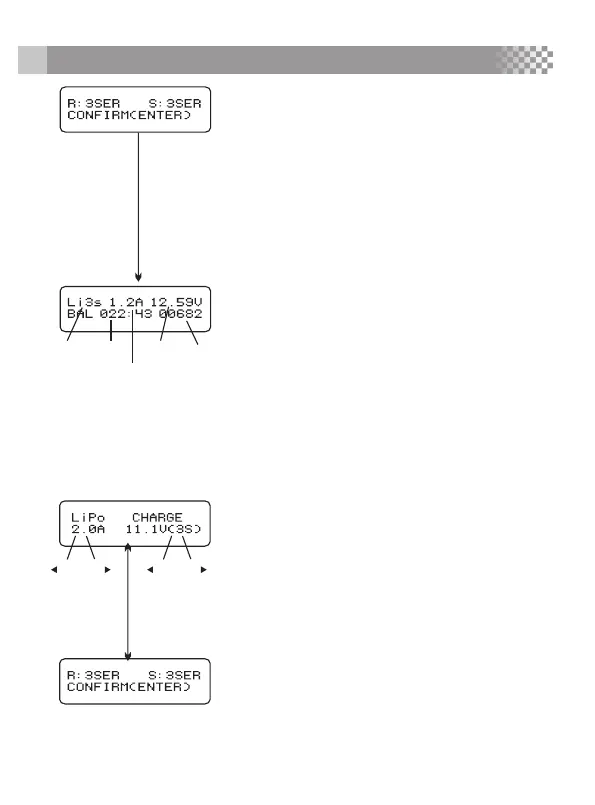

This screen displays the number of cells you
set up and the processor detects.
R=Number of cells detected by charger.
S=Number of cells set by you at the previous
screen.
If both numbers are identical you can start
charging process. If not, press BATT TYPE/
STOP button to go back to previous screen
to recheck the number of cells of the battery
pack before going ahead.
This screen shows the real-time status during
charge process. Press BATT TYPE/STOP
button once to stop the charge process.
The left side of the first line shows the type
of battery you choose. The value on the left
of the second line of the charger is current
the user sets. After setting the current and
voltage, press the START/ENTER button for
more than 3 seconds to start the process.
This displays the number of cells you set up
and the processor detects.
R=Number of cells detected by charger.
S=Number of cells set by you at the previous
screen.
Start
Enter
Batt type
Stop
>3 seconds
DEC. INC. DEC. INC.
Number
of
cells
Battery
voltage
Charging
time
Charged
capacity
Charging
current
Start
Enter
CHARGING OF LITHIUM BATTERY
This charging mode is for charging LiPo/LiFe/LiIon/LiHV battery in normal
mode.
Note: We recommend charging lithium batteries with a balance lead
in the balance mode only.
-
-
+
+
LITHIUM BATTERY(LiPo/LiFe/LiIon/LiHV)PROGRAM
14
