Ultra Power B6 mini User Manual

Set up the charge current on the left and
nominal voltage on the right.
Range of current is 0.1-5.0A, the voltage
should match the battery being charged.
Press START/ENTER button for more than 3
seconds to start charging.
The screen display the real-time charging
status. Press START/ENTER button again to
store the parameter value you set. Press
BATT TYPE/STOP button to end the
program.
Set up the discharge current on the left and
nominal voltage on the right. Range of
discharge current is 0.1-1.0A, the voltage
should match the battery being discharged.
Press ENTER/START button for more than 3
seconds to start discharging.
This program is only suitable for charging Pb lead-acid battery with
nominal voltage from 2 to 20V, Pb lead-acid battery is a completely
different from NiMH/NiCD battery. These batteries can only deliver
current lower in comparison to their capacity. The same restriction
applies to the charging process consquently, the optimum charge
current can only be 1/10 of the capacity. Pb battery can not be used for
fast-charging. Please follow the instructions provided by the battery
manufacturer.

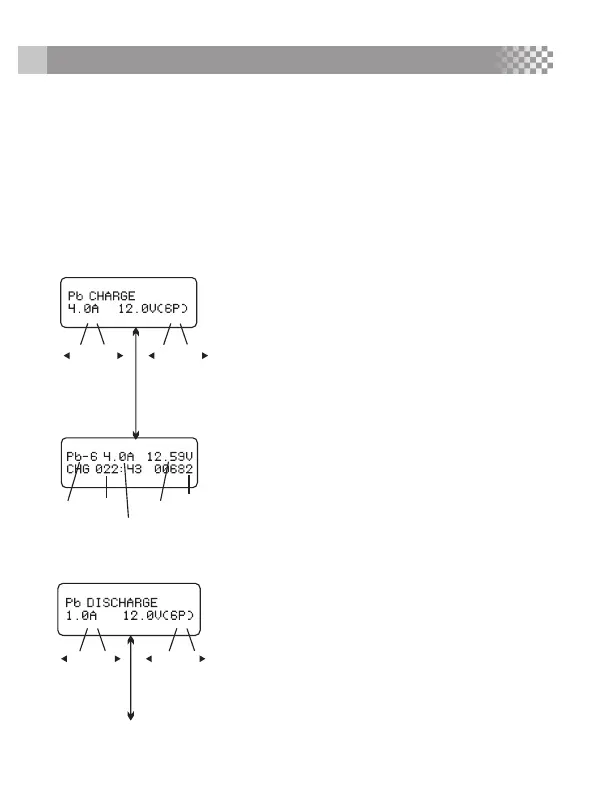

CHARGING OF PB BATTERY
DISCHARGING OF PB BATTERY
Start
Enter
Batt type
Stop
>3 seconds
DEC. INC. DEC. INC.
Start
Enter
Batt type
Stop
>3 seconds
DEC. INC. DEC. INC.
Battery
type
-
Elapsed
time
+
Charge
current
Battery
voltage
-
+
Charged
capacity
-
+
-
+
PB BATTERY PROGRAM
18
