Ulvac G-TRAN Series User Manual

3

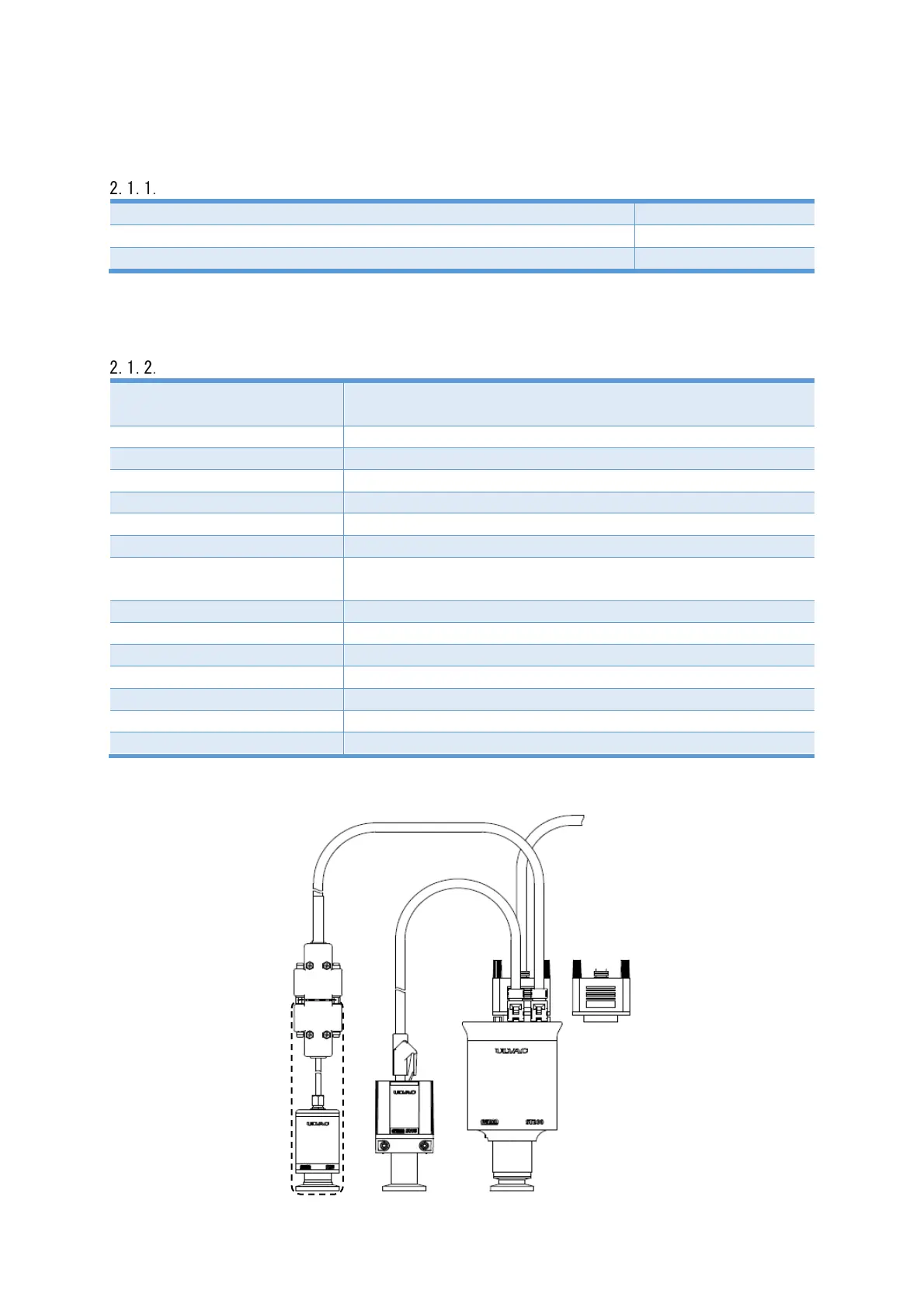

2.1. Unpacking and checking accessories
When the product arrives, please unpack, and check the product. Also, please check
for any damage from transportation and make sure that there are all accessories.
Accessories
Multi ionization gauge sensor unit ST200 (main unit) 1
Sensor for ST200
※
1
Quick manual (regular paper) 1
※ Depending on the order, the sensor for ST200( SWT-16,SWT-25 ) may or
may not be included.
Items that need to be ordered separately
Sensor for ST200
(flange size)
SWT-16 (NW16), SWT-25 (NW25)
Baffle for sensor for SWT-16, for SWT-25 (Installed inside the sensor)
Connector for ST200 D-sub15pin connector (female), M2.6 screw ※unwired
Calibration certificate Calibration certificate, JCSS calibration certificate
Inspection certificate
Traceability certificate
Display unit Model ISG1 (DC24V power supply)
Display cable Cable between ST200 and display unit
2m, 5m, 10m, 15m, 20m, 25m, 30m, 35m, 40m
Pirani gauge SWU SWU and SPU cannot operate at the same time.
Sensor for SWU SWP-16, SWP-25, SWP-R1/8, SWP-P18, SWP-P15, SWP-CF16
Pirani gauge SPU SWU and SPU cannot operate at the same time.
Sensor for SPU WP-01, WP-02, WP-03, WP-16
Pressure sensor unit SAU
Unit cable GUC-200P Between ST200 and SWU/SPU 0.5m, 1m, 2m
Unit cable GUC-200A Between ST200 and SAU 0.5m, 1m, 2m
→
Display unit
Display Cable
Sensor
f
or SWU
※ SWU can be replaced with SPU.
GUC
-200A
GUC
-200P
SAU
SWU
ST200
Connector
f
or ST200
(unwired)
Sensor
f
or ST200
