UNI-T UTG1000X Series User Manual

User’s Manual UTG1000X Series
Instruments.uni-trend.com 12 / 74
2.3 Panel and Key
2.3.1 Front Panel

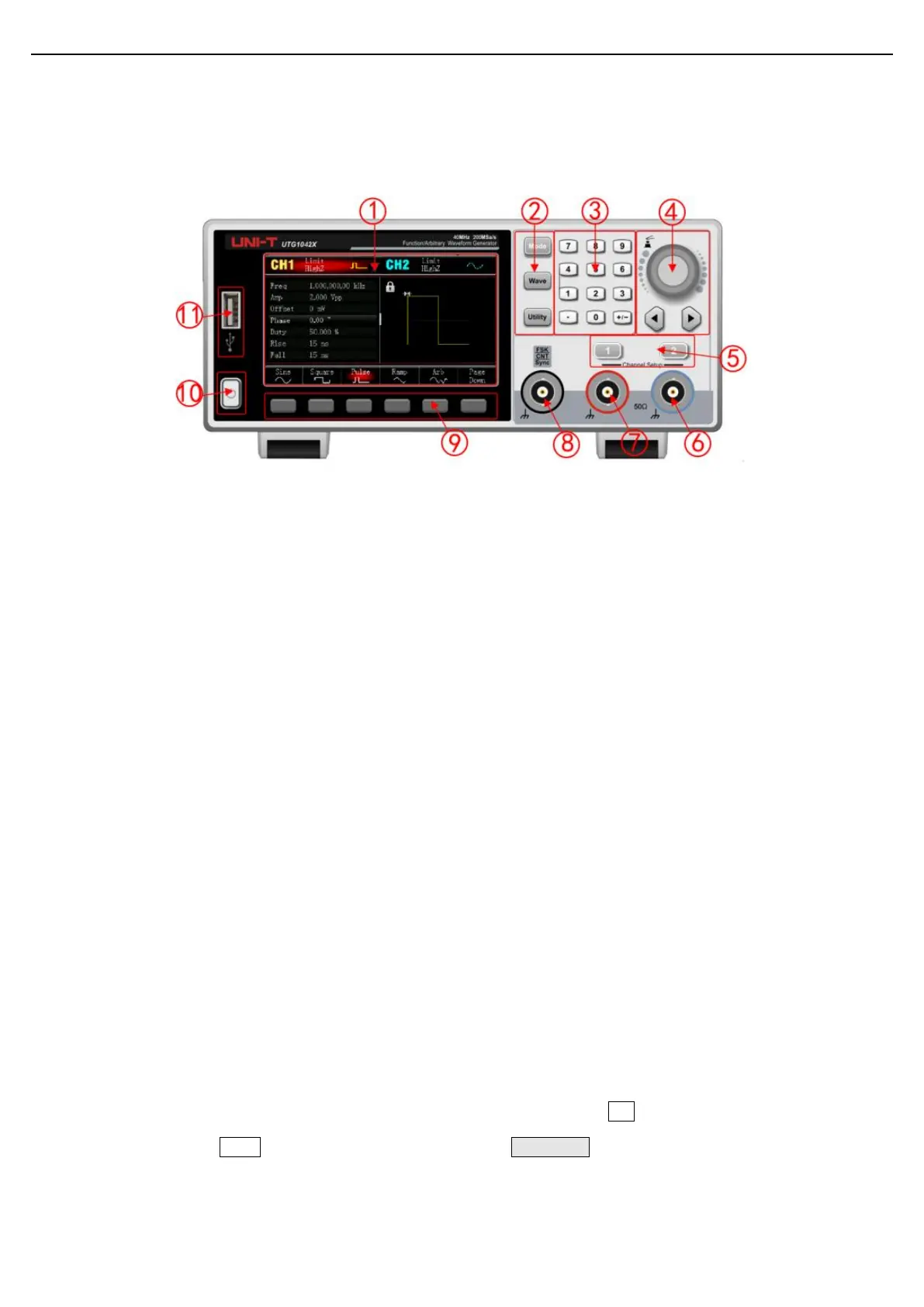

The product has a front panel of simple, intuitive and easy to use, as shown in the following figure.
1．Display Screen
4.3 inch high resolution TFT color LCD is clearly distinguishes the output status of channel 1 and channel 2,
function menu and other important information through different colors. The humanized system interface to
make human-computer interaction become easier and to improve work efficiency.
2．Function Key
Using Mode, Wave, Utility key to set the modulation, fundamental wave selection and auxiliary function.
3．Numerical Keyboard
Digit key 0-9, decimal point “.”, symbol key “+/-” for input the parameter. The left key is used for backspace and
delete the previous bit of the current input.
4．Multifunction Knob / Arrow Key
Multifunction knob is used for changing number (rotate clockwise to increase number) or as the arrow key,
press the knob to select the function or to confirm the setup parameter.
When using multifunction knob and arrow key to set the parameter, it is used to switch the digital bits or clear
the previous bit or move (to left or right) cursor position.
5．CH1/CH2 Output Control Key
Quickly to switch the current channel display on the screen (The highlighted CH1 info bar indicates the current
channel, the parameter list displays the relevant information of CH1, so as to set the waveform parameters of
channel 1.) If CH1 is the current channel (CH1 info bar is highlighted), press CH1 key to quickly turn on/off CH1
output, or press Utility key to pop out the bar and then press CH1 Setting soft key to set. When channel output
is enabled, the indicator light will be illumined, the info bar will display the output mode (“Wave”, “Modulate” or
