UNI-T UTG1000X Series User Manual

User’s Manual UTG1000X Series
Instruments.uni-trend.com 31 / 74

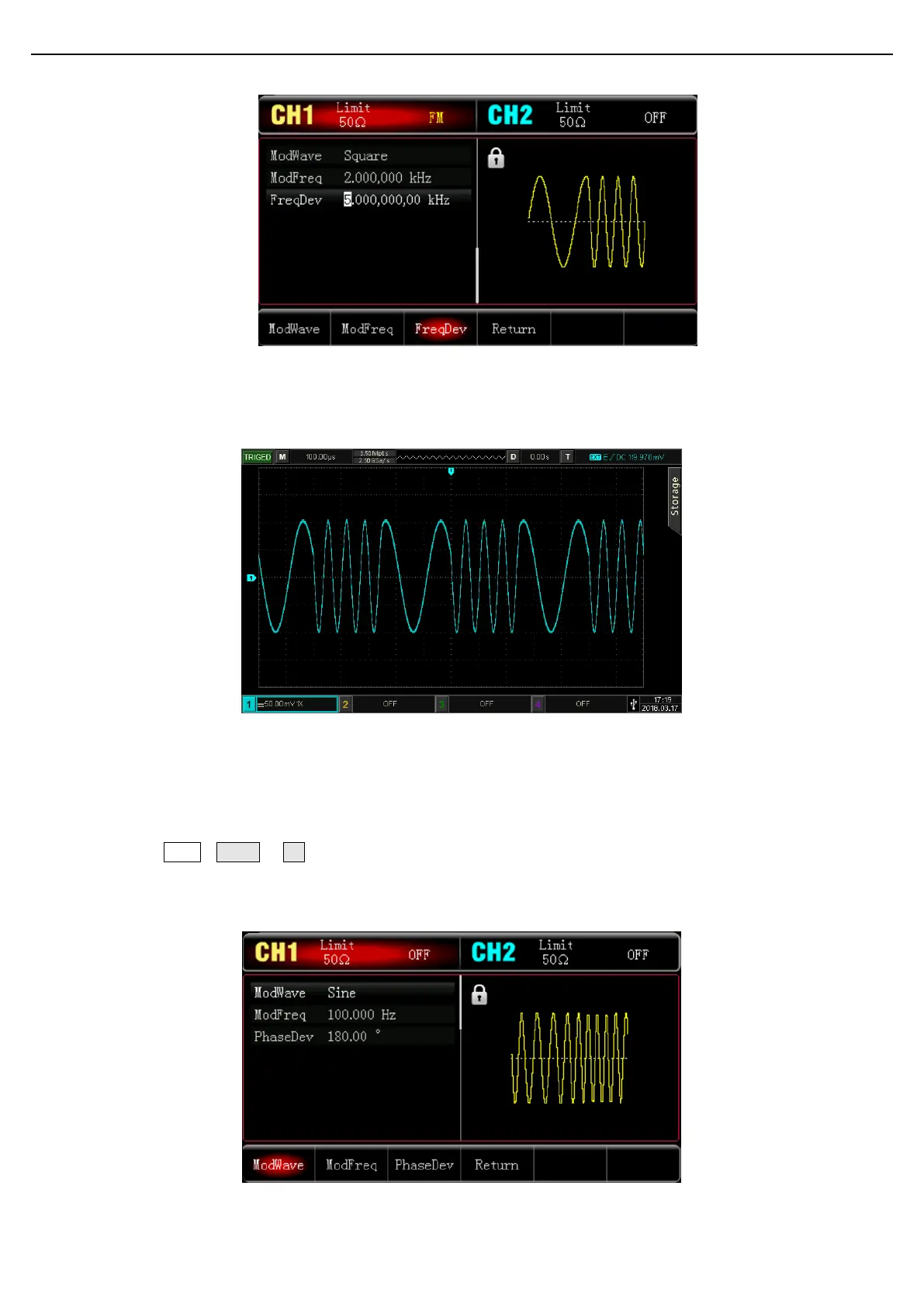

To view the shape of the FM through an oscilloscope as shown in the following figure.
4.1.3 Phase Modulation（PM）
In PM mode, modulated wave is consist of the carrier wave and the modulation wave. The phase of the
carrier wave will changed with the amplitude of the modulation wave.
Press ModeShape PM to turn on PM mode, the instrument will output the modulated waveform
according to the currently modulation wave and the carrier wave.
Select Carrier Wave
