User’s Manual UTG1000X Series
Instruments.uni-trend.com 14 / 74
2.3.2 Rear Panel

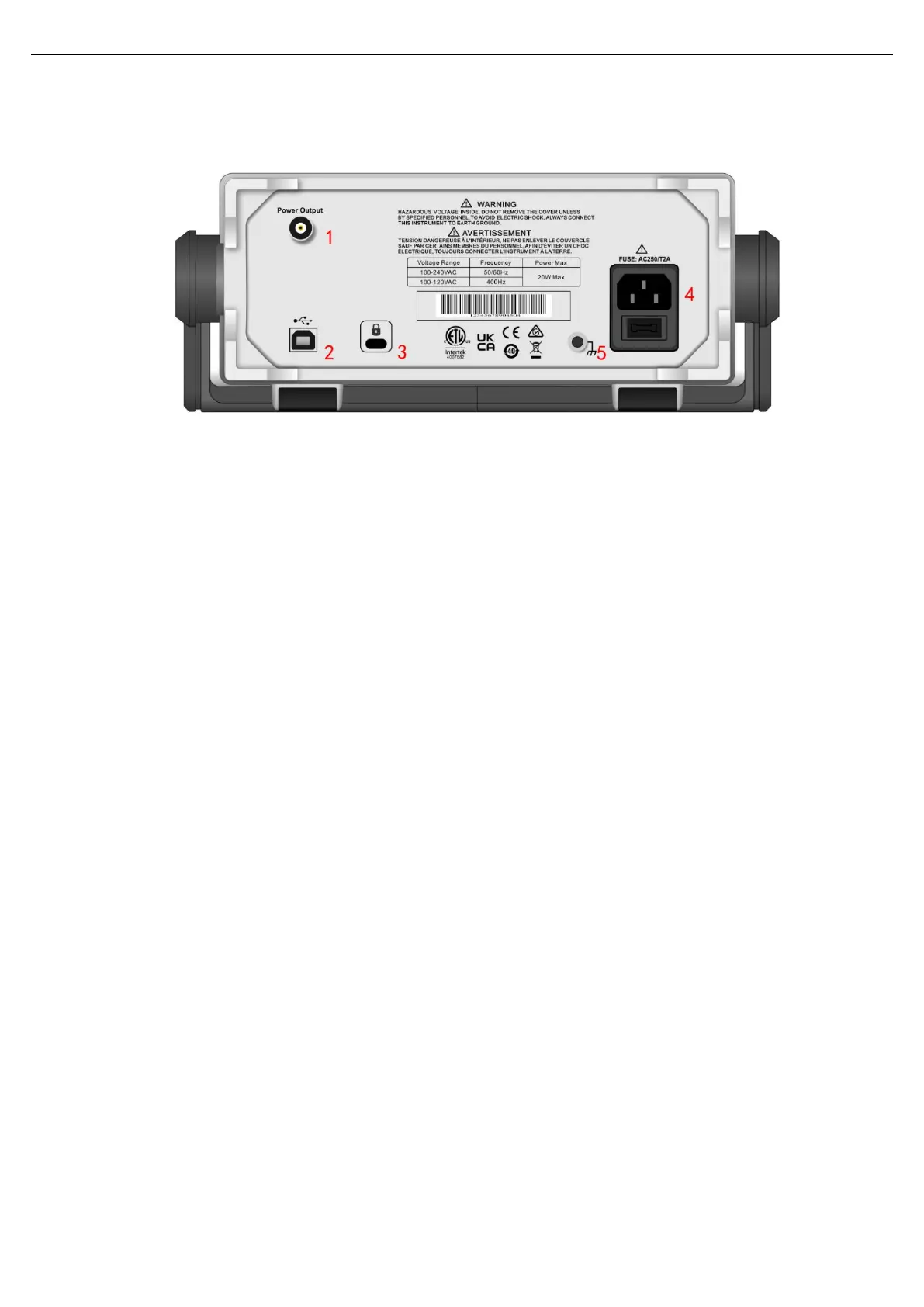

As shown in the following figure,
1．Power Output (- PA models only)
Output interface of power.
2．USB Interface
The USB interface is used to connect to the host computer software to control the instrument (e.g., upgrade
the system program to ensure that the current function/arbitrary waveform generator program is the latest
version released by the company).
3．Safety Lock
Safety lock (sold separately) can be used for the instrument stay at fixed position.
4．AC Power Input Interface
AC power specification of UTG1000X function/arbitrary waveform generator is 100-240VAC（fluctuant ±10%）,
50/60Hz; 100-120VAC（fluctuant ±10%）, 400Hz; Power fuse: 250V, T2A. If the waveform generators needs
to output high SNR signal, it is recommended use the official standard power adaptor.
5. Grounding Connector
It provides an electrical ground connection point for attaching an antistatic wrist strap to reduce electrostatic
damage (ESD) while you are handling or connecting the DUT
