UNI-T UTG1000X Series User Manual

User’s Manual UTG1000X Series
Instruments.uni-trend.com 22 / 74

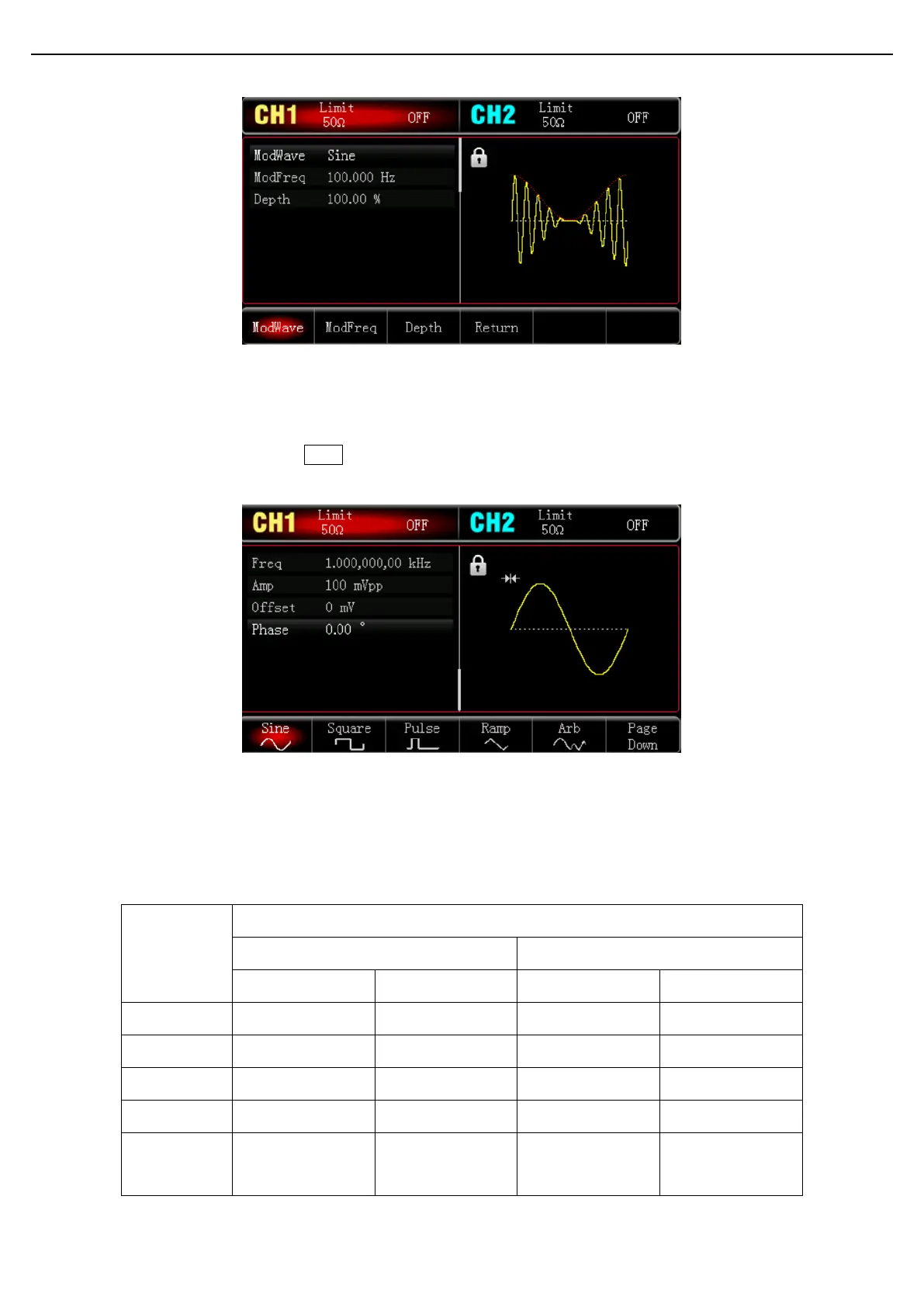

Select Carrier Wave
The carrier wave can be sine wave, square wave, ramp wave or arbitrary wave. The default is sine wave. After
AM mode is selected, press Wave key to enter the carrier wave interface.
Set Frequency for Carrier Wave
The frequency range of the carrier wave can be set differently. The default frequency of the carrier wave is 1
kHz. The frequency of each carrier wave can refer to the table as follows.
Carrier Wave
Frequency
UTG1042X
UTG1022X/-PA
Minimum Value
Maximum Value
Minimum Value
Maximum Value
Sine Wave
1 μHz
40 MHz
1 μHz
20 MHz
Square Wave
1 μHz
20 MHz
1 μHz
10 MHz
Ramp Wave
1 μHz
1 MHz
1 μHz
400 kHz
Pulse wave
1 μHz
20 MHz
1 μHz
10 MHz
Arbitrary
Wave
1 μHz
10 MHz
1 μHz
5 MHz
