UTL8200 User Manua
17

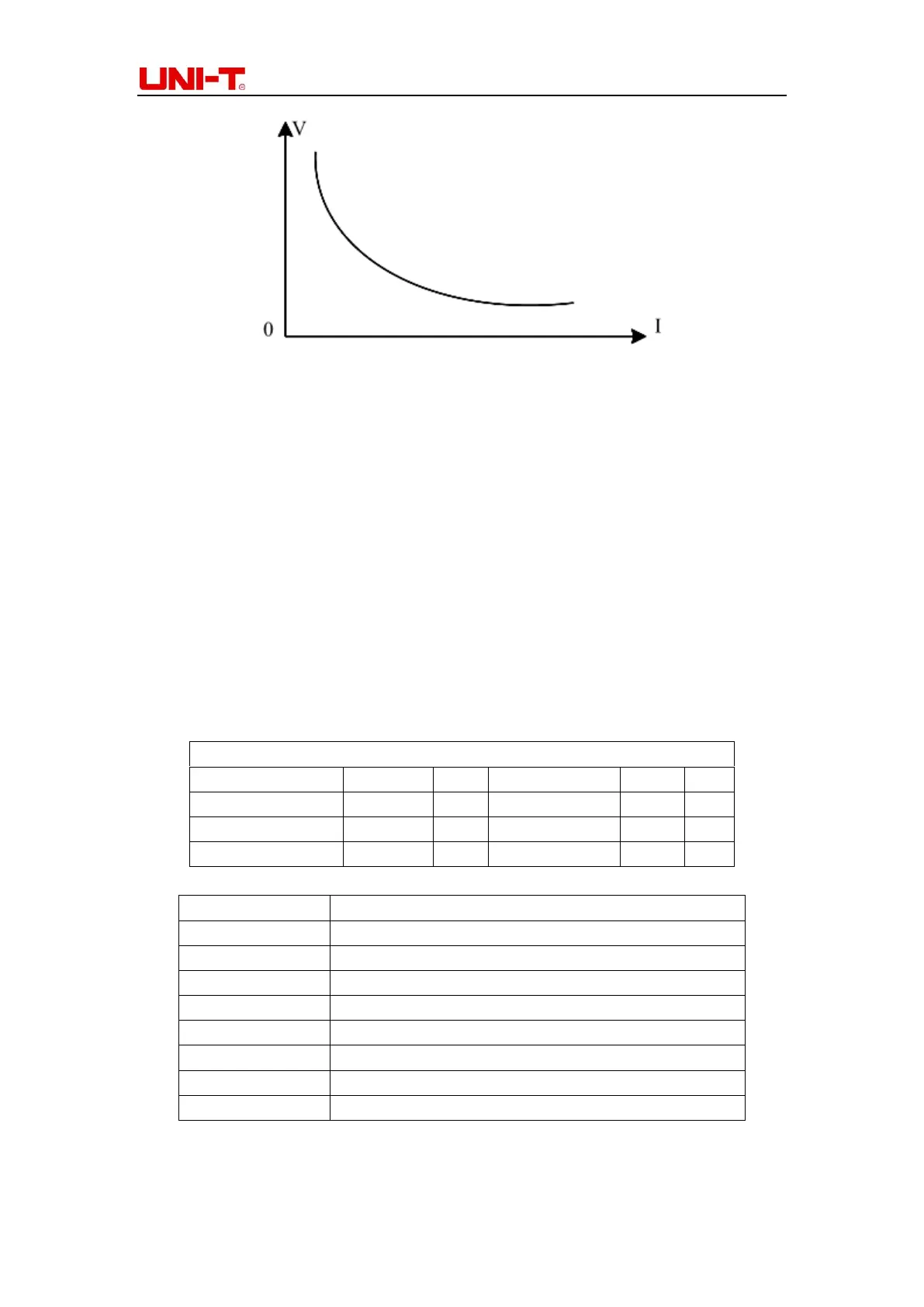

Figure 4-1-4 Relationship of Voltage and Current in CP Mode
Operation steps:
1. After starting up, first press the CH button to select the operating channel. The yellow
wireframe area is the selected channel. And CH1 or CH2 will be displayed at the top
of the screen (UTL8212 only).
2. Press the Mode button to enter the mode selection interface, select the CP mode with
the pulse knob or direction buttons, and then press Enter to enter the test interface.
3. Adjust the power setting value (constant power value) with the knob.
4. Press the ON button to start the operation, and press the ON button again to stop it.
4.1.5 Dynamic Test
In the dynamic mode, the users can set two fixed-value parameters. Through the set
operation mode, the load is switched back and forth between the two values.
Table 4-1-5-1 Dynamic Mode CC Setting Interface
[Dynamic] [Local]
Operating mode
Continues
Repeat
01000
Lower value
1.000
A
Lower duration
100.0
ms
Upper value
5.000
A
Upper duration
100.0
ms
Rise slope
0.100
A/us
Fall slope
0.100
A/us
Parameters of dynamic mode:
Dynamic mode
Description
Operating modes
Continues/Pulse/Reverse
Lower value
Set the lower parameter value
Lower duration
Set the lower on-loading time
Upper value
Set the upper parameter value
Upper duration
Set the upper on-loading time
Rise slope
Set the rise slope
Fall slope
Set the fall slope
Repeat
Set the frequency of repetition cycles for an operation
Operating modes:
1. Continues: The load will automatically and continuously switch between two set
high/low values till the operation reaches the set repeating times, and then the test
Constant Power
