Unic Tango Ace User Manual

52

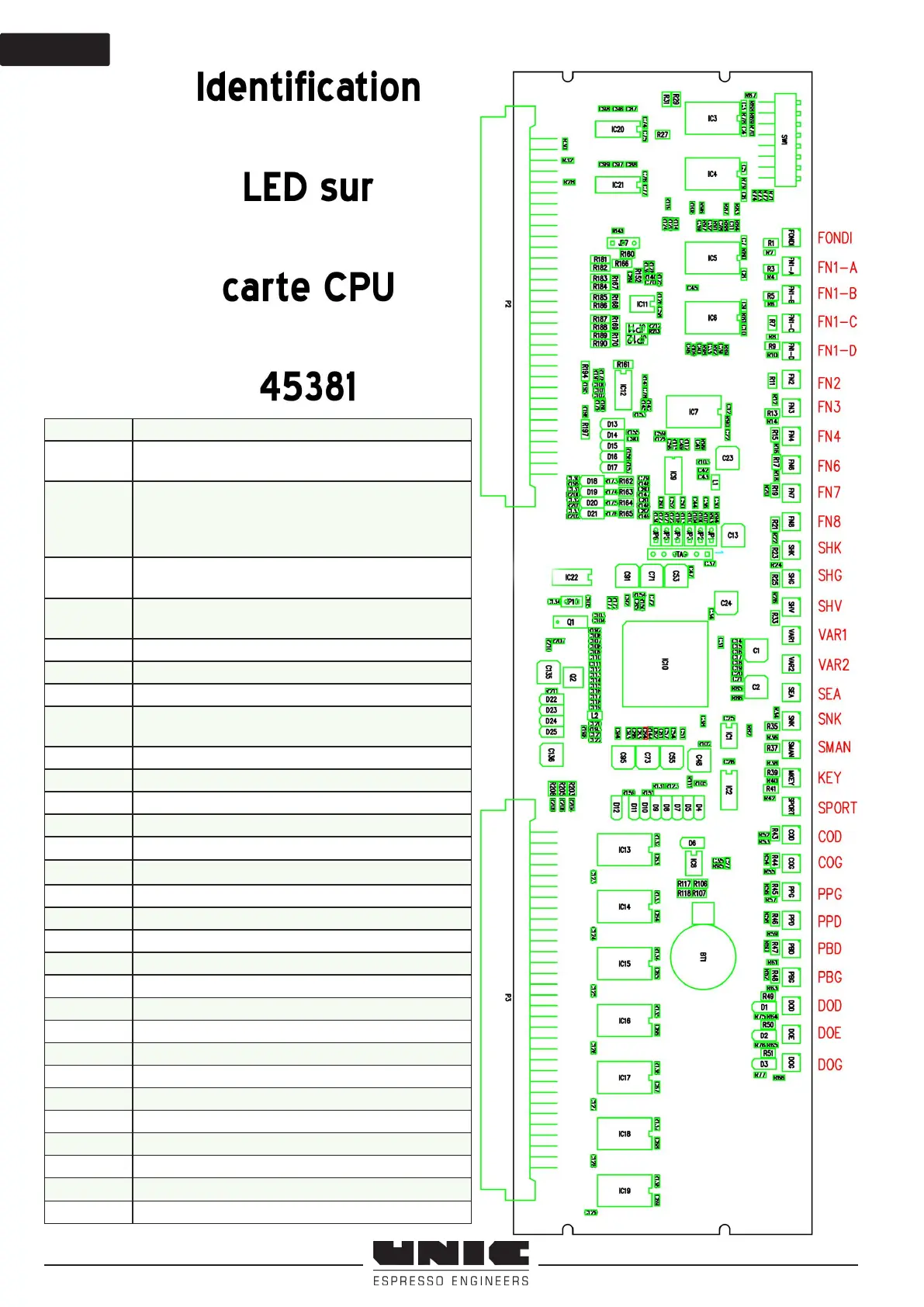

FONDI Co󰀨ee grounds tray
FN1A
MODULE 24V: EVRE - EVSE – EVSV – EVNC –
EVNK/EVNC – EVA - EVV
FN1B
MODULE SOLUBLE: MT1 – MT2 – FAN SOL –
EVKD/EVM1 – EAED/EVM2
MODULE CAFE DX: EVKD/EVM1 – EAED/EVM2 –
EVCD – EVP2 – EVLD – EVS2
FN1C
MODULE 24V: EVNKG – EVAEG – EVLG – EVCG
–EVP1 – EVS1
FN1D
MODULE 24V: EVAL1 – EVNL1 – EVVL1 – EVAL2 –
EVNL2 – EVLL2
FN2 Piston and tray motor supply
FN3 +24V
FN4 Main switch
FN6
MAC1 - MAC2 - MAC3 - GET1 - GET2 - GET3 -
POMPA - AUX1 - CHGR
FN7 Tray motor
FN8 Piston motor
SHK Heater element safety system, co󰀨ee boiler
SHG Heater element safety system, group
SHV Heater element safety system, steam boiler
VAR1
VAR2
SEA Water presence safety system
SNK Plug safety system for the group cleaning circuit
SMAN Manual door safety system
KEY
SPORT
COD Encoder, right cylinder
COG Encoder, left cylinder
PPG Tray position to the left
PPD Tray position to the right
PBD Right cylinder low position
PBG Left cylinder low position
DOD Right volumetric meter
DOE Hot water outlet volumetric meter
DOG Left volumetric meter
