Unic Tango Ace User Manual

51
ace

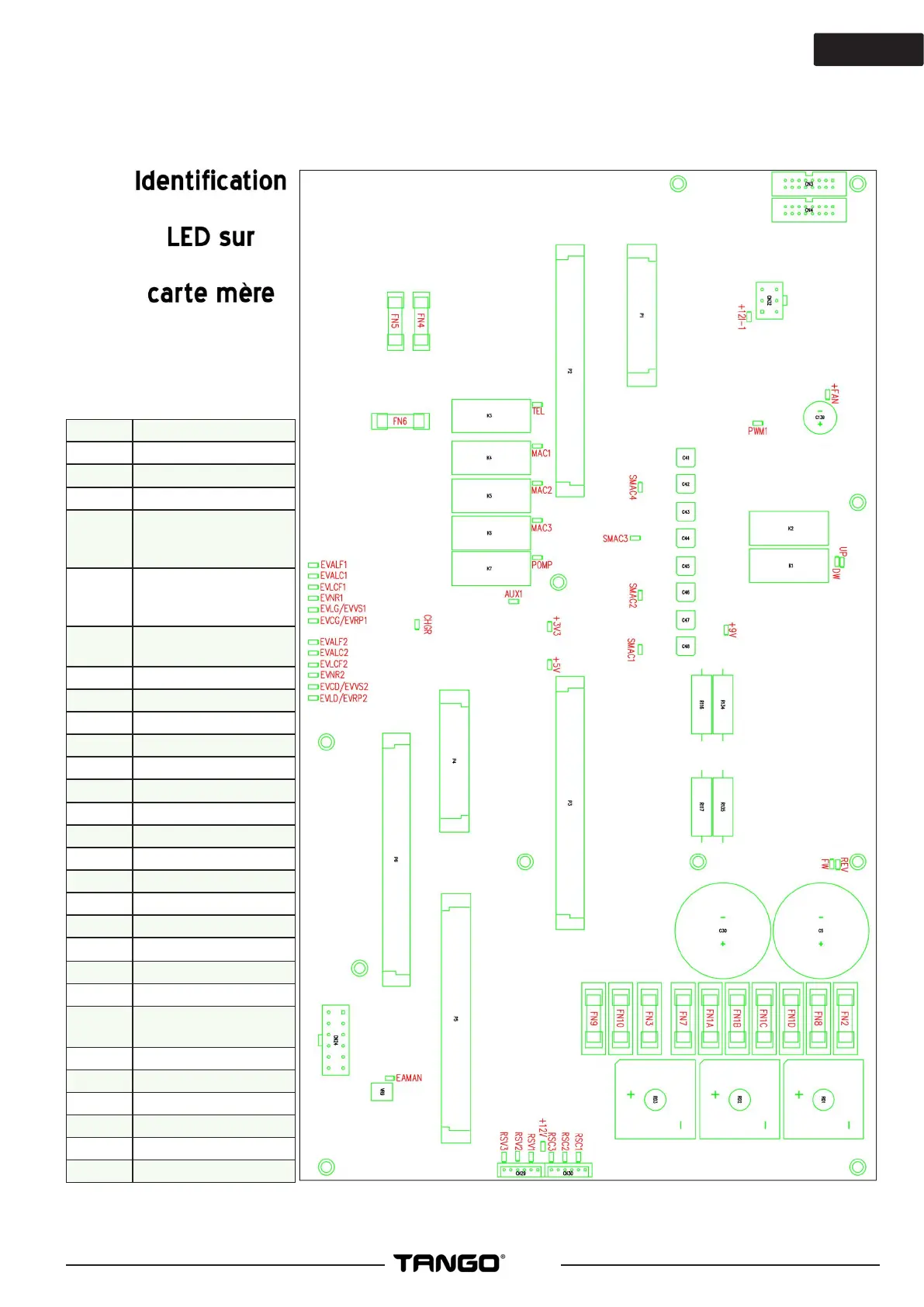

►LED Identication on card
EVALF1 Cold milk air SV
EVALC1 Hot milk air SV
EVLCF1
EVNR1
EVLG /
EVVS1
SV, latte from the LC
outlet, left / steam coil
SV
EVCG /
EVRP1
SV, cappu. LC Output
left / Cleaning steam,
purge and ush SV
EAMAN
Electro-magnet manual
door
RSC1 Static co󰀨ee relay 1
RSC2 Static co󰀨ee relay 2
RSC3 Static co󰀨ee relay 3
RSV1 Static steam relay 1
RSV2 Static steam relay 2
RSV3 Static steam relay 3
POMP Electric pump
MAC1 Grinder no 1 (purple)
MAC2 Grinder no 2 (green)
MAC3 Grinder no 3 (orange)
TEL Main switch
SMAC1 Co󰀨ee safety no 1
SMAC2 Co󰀨ee safety no 2
SMAC3 Co󰀨ee safety no 3
SMAC4 Not used
CHGR
Heating element of the
Group
AUX1
+3V3
+5V 5V supply on light
+9V 9V supply on light
+12V 12V supply on light
+FAN Fan supply light
