TECHNICAL FEATURES AND DIMENSIONS
2.1 - TECHNICAL FEATURES
NOTE!
Further details in the section
‘‘Technical Information’’ on the boiler
page of the www.unicalag.it website

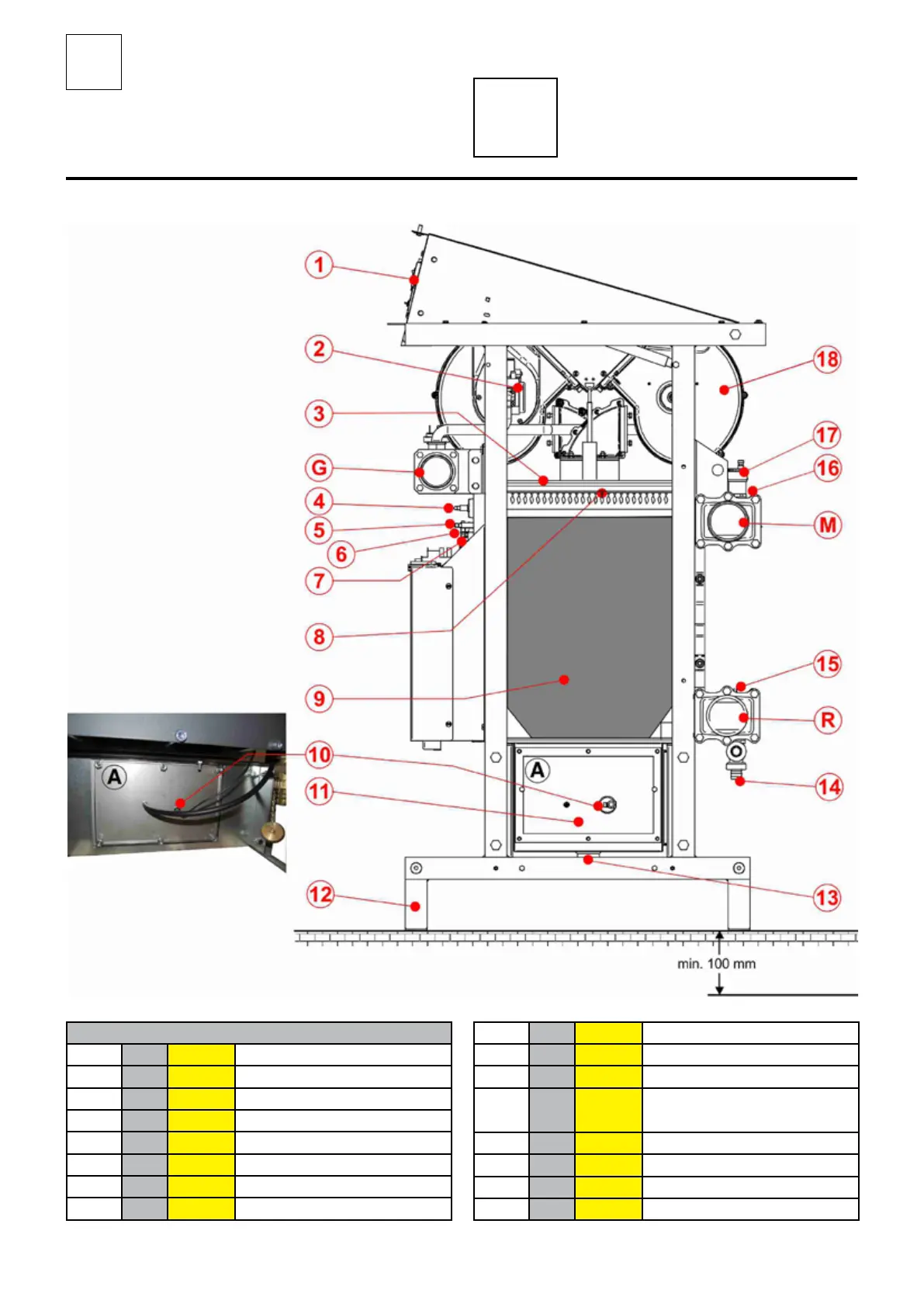

2.2 - INTERNAL VIEW WITH THE INDICATION OF THE MAIN COMPONENTS
KEY
No. C.E. S.E. Description
1 Uy Control panel
2 VG Gas valve
3 Burner cover
4 E. RIL. Ignition electrode
5 E. ACC. Detection electrode
6 SR Local heating sensor
7 TL Limit Thermostat
8 Burner
9 Silicon Aluminium Heat Exchanger
10 SL Condensate level sensor
11
Condensate collection pan /
Chimney tting
12 Frame
13 Condensation drainage outlet
14 Drain valve
15 SRR Global Return Sensor
