Unical MODULEX EXT Series

34
3.12.2 - POSITIONING THE SENSORS
To determine the combustion e󰀩ciency
one must make the following measurements:
- measurement of the combustion air temperature
- measurement of the ue gas temperature and content of
CO
2
taken in the relevant hole 2.
Take the measurements with the generator in steady state
conditions (see par. 3.12.1).
ATTENTION!

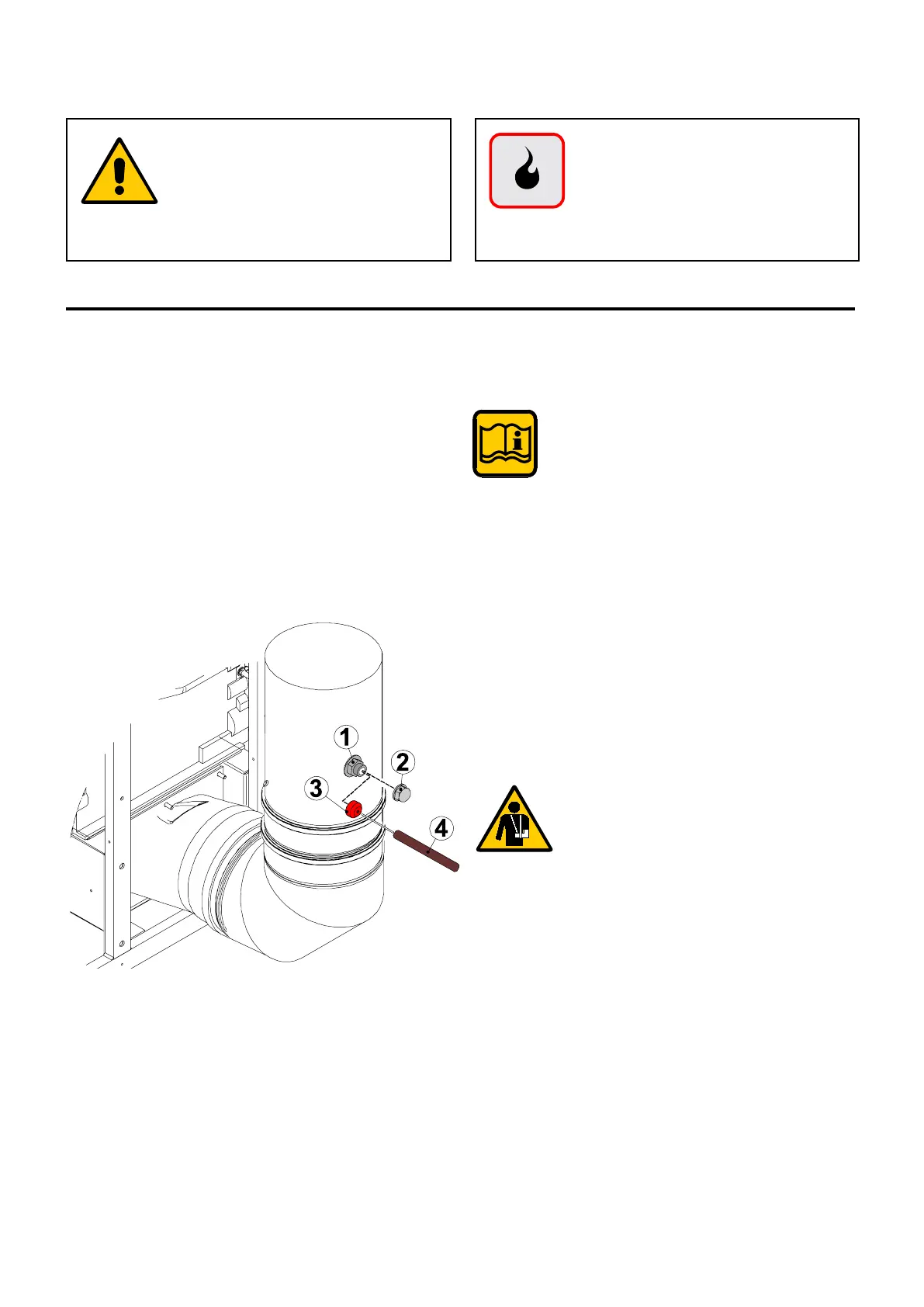

Remove cap 2, x the red cap 3 to the ue gas
inlet 1. Insert the CO2 analysis sensor 4 in the
cap hole.
Perform the measurement. Remove the cap
and close the ue gas exhaust inlet with the
specic cap 2.
All boilers leave the factory already calibrated
and tested. However, if the calibration conditions
should be modied, it is necessary to recalibrate
the gas valve.
3.12.1 - CALIBRATION FUNCTION (CHIMNEY SWEEP)
3.12 - MEASUREMENT OF THE COMBUSTION EFFICIENCY DURING INSTALLATION
Generator Menu
ATTENTION!
Function reserved for After Sale
Service Centres only.
ATTENTION!
These functions are explained in
chapter 2.9 (Burner menu) of the
Uy P. TOUCH CONTROL instal-
lation and maintenance manual.
