37
Installation instructions
ENGLISH

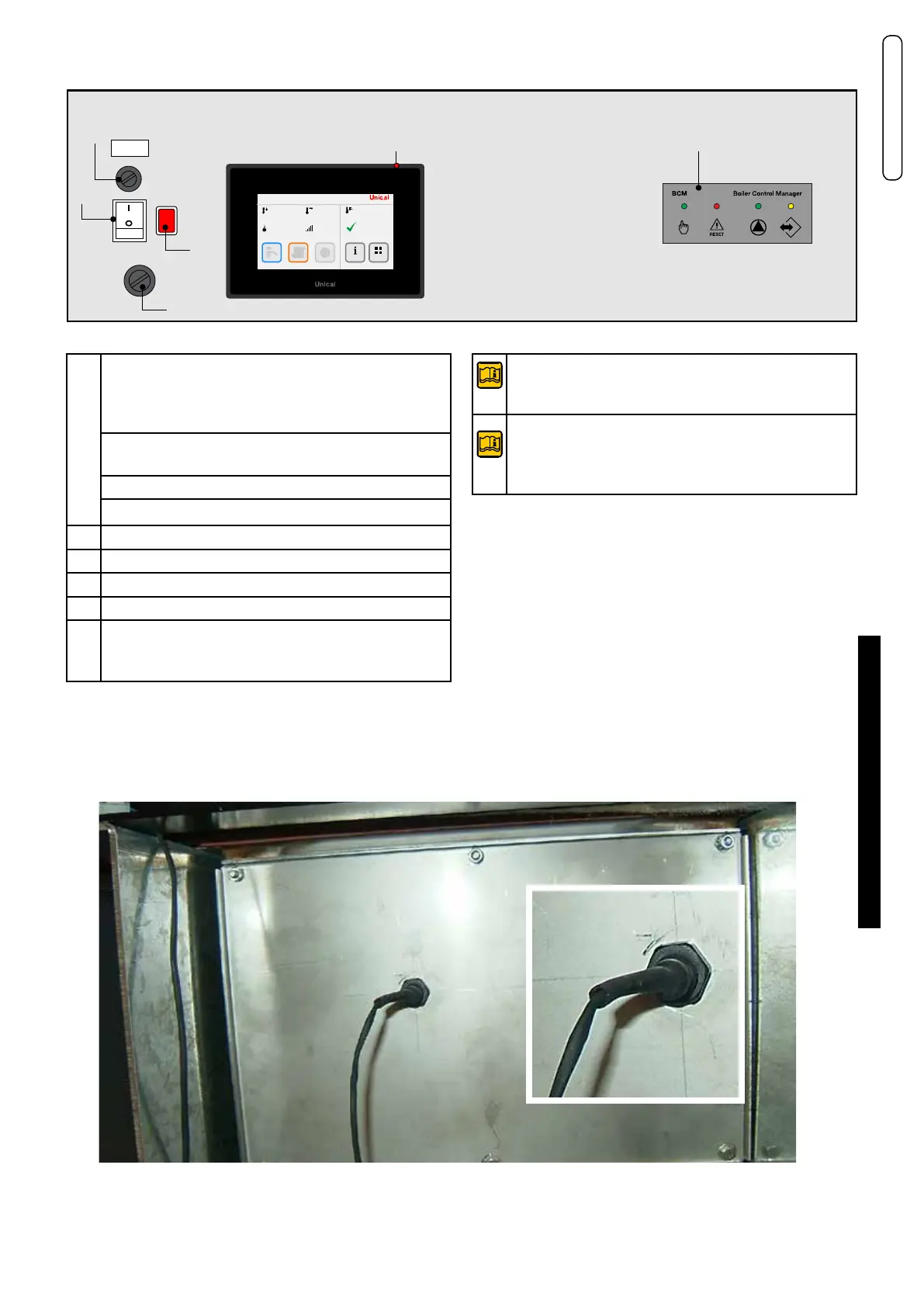

3.14 - EMERGENCY OPERATION AND SAFETY DEVICES
Condensate level sensor position
F1
AE
G
H
F
I
18:28
giov 30 20ott 18
effettiva
richiesta
76°C 84°C
generatore
10/10
modulazione
100
%
INFO MENU
status
sanitaria
25°C
A
The BCM prevents system shutdown if the man-
agement of the Uy system or main boiler system
is out of service
(Refer to the BCM manual)
YELLOW LED = ashing
(communication between BMM and BCM) ok
GREEN LED = on (Pump Active)
RED LED = on (Error code detected)
E Uy control panel
F TLG triggering lamp Main Limit Thermostat
G Fuse
H Main Switch
I
TLG Main Limit Thermostat, when it triggers it cuts
power to the boiler, the F lamp lights up. To rearm,
remove the cap and press.
NOTE:
The devices are positioned under the casing, next
to the control unit.
NOTE: The emergency function only activates the
boiler burners at 100% on ow. All system loads,
including the manifold pump, must be manually
controlled.
