Unical MODULEX EXT Series

12

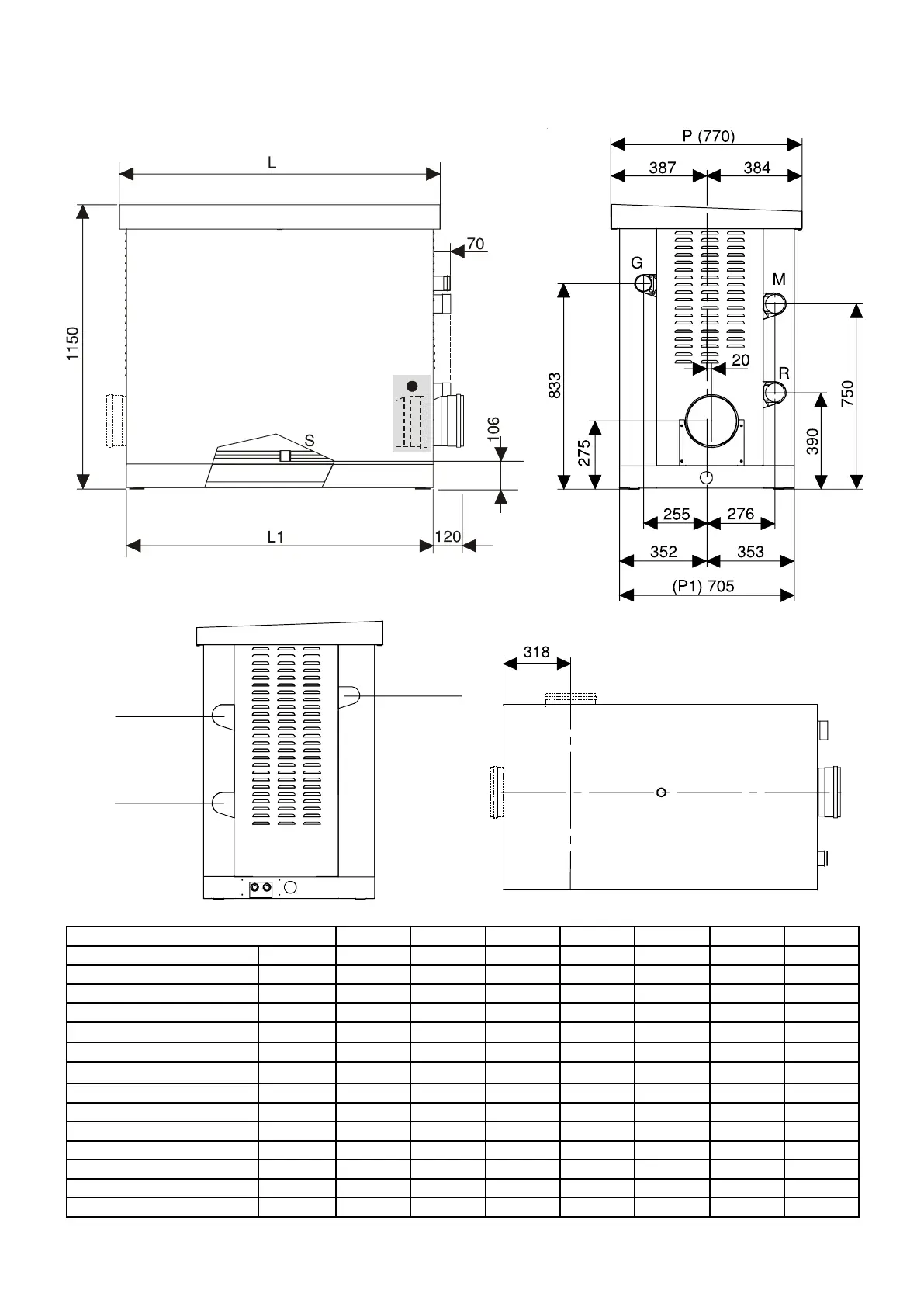

2.3 - DIMENSIONS
FRONT VIEW
RIGHT SIDE VIEW
(Supply conditions for right side connections)
TOP VIEW
LEFT SIDE VIEW
(•) Modulex EXT 100 - 200 - 300 Terminal inside casing
MODULEX EXT 100 116 150 200 250 300 350
Dimensions
No. of heating elements 2 3 3 4 5 6 7
Height mm 1150 1150 1150 1150 1150 1150 1150
Width “L” mm 764 764 764 1032 1032 1300 1300
Width “L1” mm 706 706 706 974 974 1242 1242
Depth “P” mm 770 770 770 770 770 770 770
Depth “P1” mm 705 705 705 705 705 705 705
Connection dimensions
Gas Fitting G mm (inch) 50(2 ) 50(2 ) 50(2 ) 50(2 ) 50(2 ) 50(2 ) 50(2 )
System ow M mm (inch) 64 (2½) 64 (2½) 64 (2½) 64 (2½) 64 (2½) 64 (2½) 64 (2½)
System return R mm (inch) 64 (2½) 64 (2½) 64 (2½) 64 (2½) 64 (2½) 64 (2½) 64 (2½)
Chimney tting mm 150 150 150 150 200 200 200
Condensation drain mm 40 40 40 40 40 40 40
PRE-CUT
LEFT SIDE
FLOW
PRE-CUT
LEFT SIDE
RETURN
PRE-CUT
LEFT SIDE
GAS
