Unical MODULEX EXT Series

15
Technical Features
ENGLISH
EXAMPLE:
For a ∆T 20K, of a MODULEX 250, the maximum
water ow rate required is 10514 l/h.

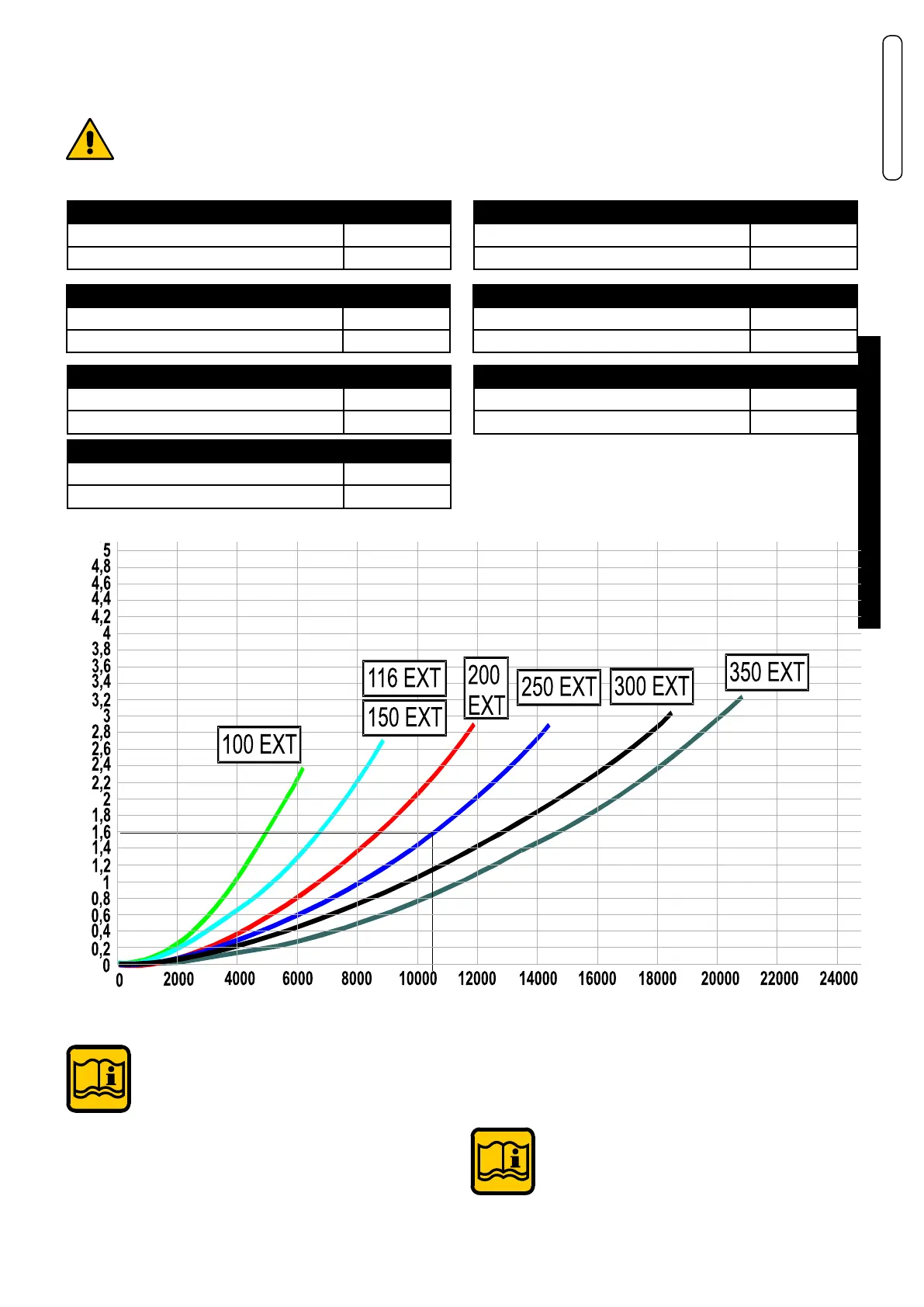

The graph of the boiler pressure drops shows that
the pump must ensure a head of at least 1.6 m/H
2
O
NOTE:
It is always advisable to use a hydraulic separator (*) between
the boiler circuit and the system.
FLOW RATE l/h
Pressure drop (mH
2
O)
2.4.2 - DETERMINATION OF THE PRIMARY CIRCUIT PUMP OR BOILER PUMP
The pumps must be determined by the installer
or designer according to the boiler and sys-
tem data.
The boiler pump must have head that is able to ensure the
pump's ow rates according to the circuit's ∆t.
MODULEX EXT 100
Maximum ow rate in l/h (∆t=15K) 5,573
Requested rated ow rate in l/h (∆t=20K) 4,180
MODULEX EXT 250
Maximum ow rate in l/h (∆t=15K) 14,018
Requested rated ow rate in l/h (∆t=20K) 10,514
MODULEX EXT 116
Maximum ow rate in l/h (∆t=15K) 6,471
Requested rated ow rate in l/h (∆t=20K) 4,853
MODULEX EXT 300
Maximum ow rate in l/h (∆t=15K) 16,856
Requested rated ow rate in l/h (∆t=20K) 12,642
MODULEX EXT 150
Maximum ow rate in l/h (∆t=15K) 8,376
Requested rated ow rate in l/h (∆t=20K) 6,282
MODULEX EXT 350
Maximum ow rate in l/h (∆t=15K) 19,712
Requested rated ow rate in l/h (∆t=20K) 14,784
MODULEX EXT 200
Maximum ow rate in l/h (∆t=15K) 11,192
Requested rated ow rate in l/h (∆t=20K) 8,394
The pump is not an integral part of the boiler.
It is recommended to select a pump with a ow rate
and head of approximately 2/3 of its characteristic
curve.
(*) For the features, refer to the SPINOX
installation manual, available on the website.
