Installation instructions
ENGLISH

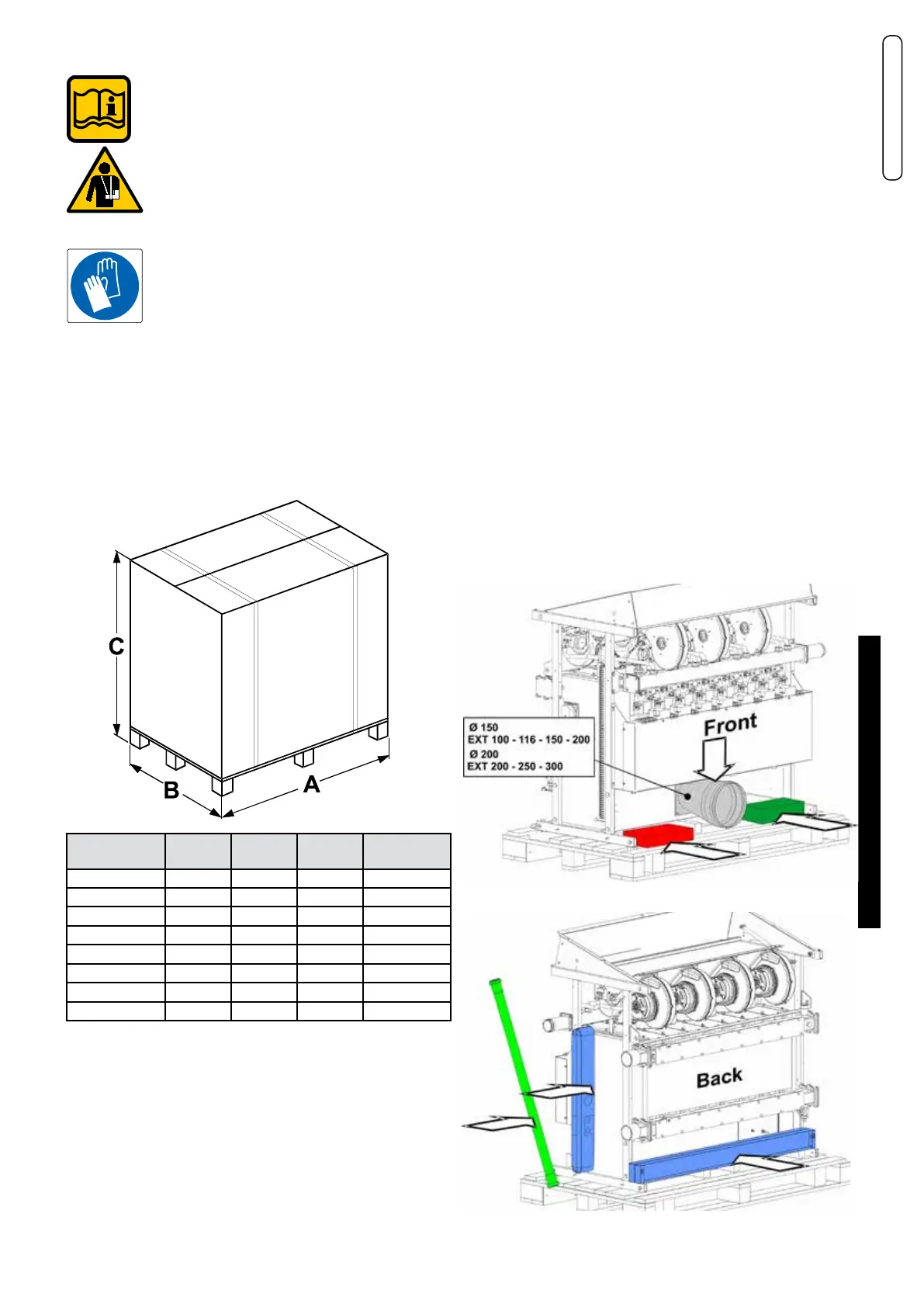

3.4 - PACKAGING
The boiler is supplied assembled in a sturdy cardboard box.
After removing the two straps, remove the card-
board from the top and ensure the integrity of the
contents.
Keep the packaging material (cardboard box,
straps, plastic bags, etc.) out of the reach of chil-
dren as they are potential sources of danger.
The manufacturer shall not be held liable for
damage to persons, animals or property due to
failure to comply with the instructions above.
- Transport the boiler using suitable transporta-
tion means.
- Protect all parts against impacts if they must be
transported.
- Follow the transport instructions on the pack-
aging.
• The boilers must always be lifted and carried
with a carrying trolley or equipment suitable for
transport.
OBLIGATION!
wear protective gloves
- One box containing:
Gasket between pan and terminal.
Collar gasket
Two elbows + a Tee + a plastic
condensate drain plug
The screws necessary for xing the ue gas terminal
The sensors: external, heater.
The ue inspection cap
Sheet and cable glands for power supply output
On the right side of the boiler:
- Condensate drain trap pipe
- RH and LH side basement
On the back of the boiler:
- Front and rear basement
Above the boiler cover:
- A plastic bag containing:
- Instruction manual for the installation and maintenance
technician
- Uy control unit operating manual
- BCM 2.0 manual
- Hydraulic test certicate
- Certicate of conformity
- Warranty certicate (IT only)
- Warranty extension 10 A (IT only)
- INAIL certicate (IT only)
- Spare parts coupon (IT only)
- Dowels to lock the fan set in raised position (for models
100 ÷ 350 kW)
The box contains
on the front side of the boiler:
- The ue gas exhaust manifold anchored with screws on the
front crosspiece.
- One box containing:
4 support feet
3 closing plugs for possible manifold inversion
3 insulation gaskets for manifolds
(boiler outdoors).
Modulex EXT A B C
Gross
Weight
mm mm mm kg
100 840 890 1250 203
116 840 890 1250 236
150 840 890 1250 236
200 1110 890 1250 295
250 1110 890 1250 325
300 1375 890 1250 386
350 1375 890 1250 419
