1x2 Video Wall (example)

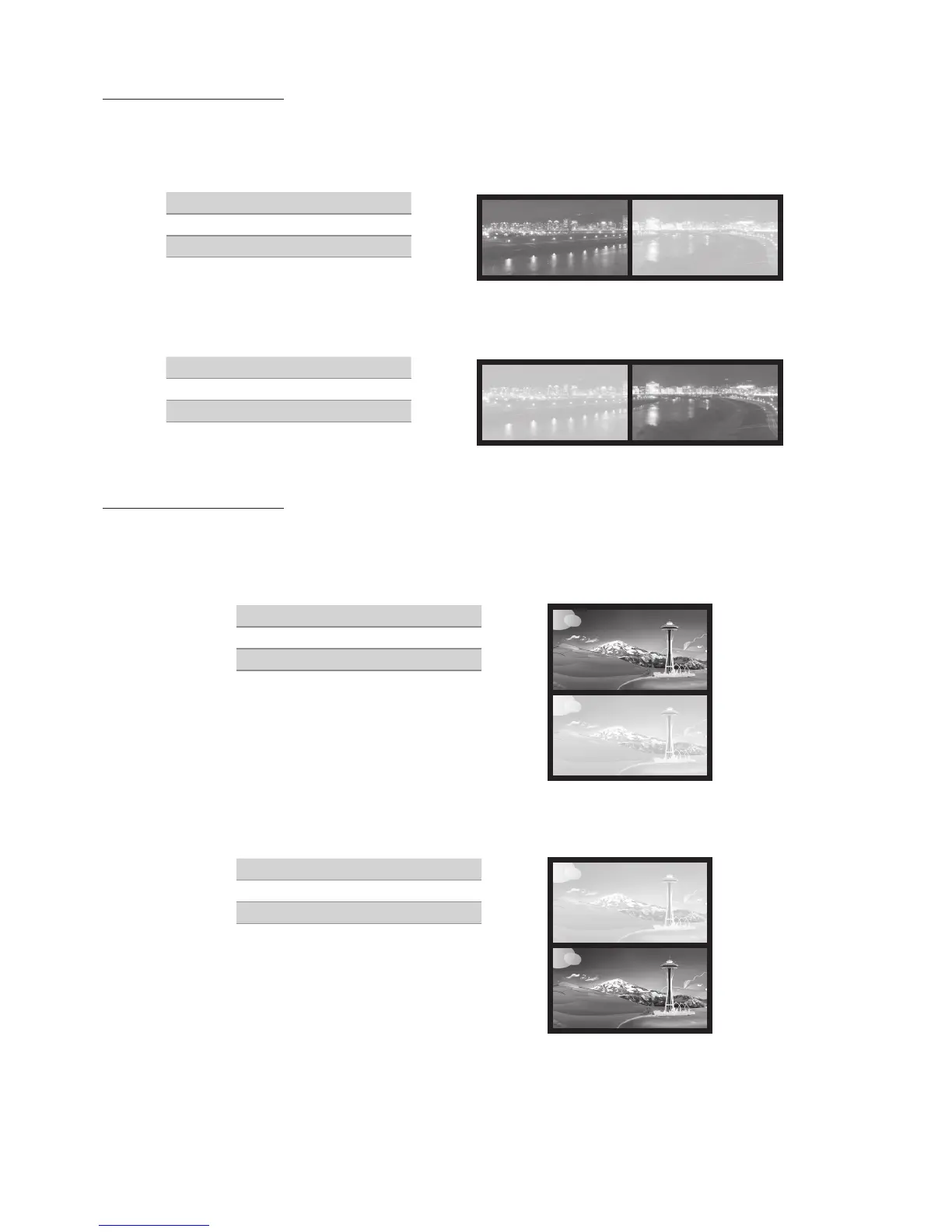

To extend the display on the Video Wall, setup the Wall Size and Position Layout by following the table
below:
Monitor 1
Numbers of Row
1
Numbers of Column
2
Row Position
0
Column Position
0
0 1
Monitor 2
0 1
Numbers of Row
1
Numbers of Column
2
Row Position
0
Column Position
1
2x1 Video Wall (example)
To duplicate the image on the Video Wall, setup the Wall Size and Position Layout by following the table
below:
Monitor 1
Numbers of Row
2
Numbers of Column
1
Row Position
0
Column Position
0
0
1
Monitor 2
Numbers of Row
2
Numbers of Column
1
Row Position
1
Column Position
0
0
1
