8
HX120

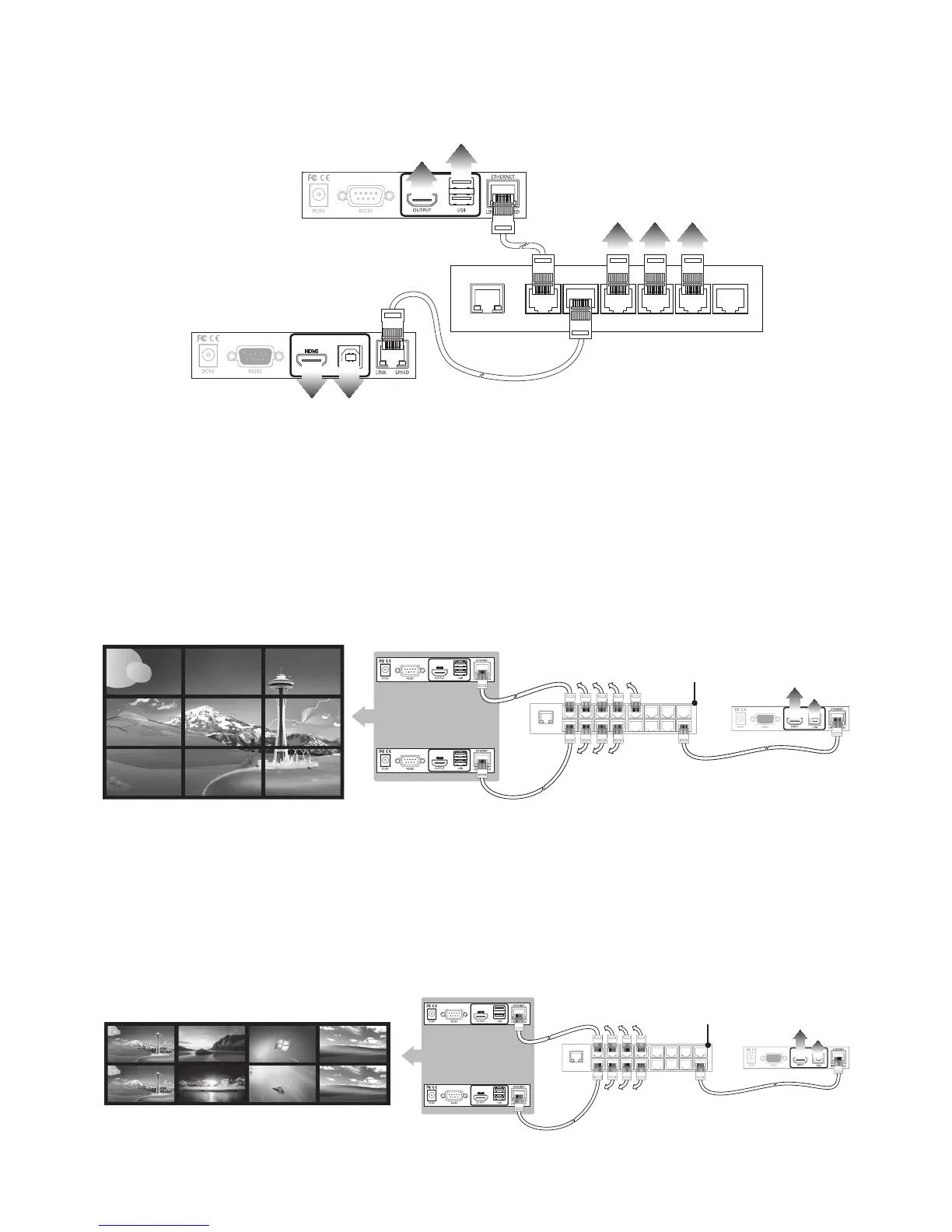

Point to multipoint
Receiver Receiver Receiver
Receiver
TV
USB devices
Transmitter
Gigabit Ethernet Switch
A/V source or PC
■
Except the point to point connection, the Transmitter can be extended to several Receivers using a
gigabit Ethernet switch.
Video Wall
With the combination of Transmitter and Video Wall, the HDMI signal can be sent to one or multi HDMI
display up to 8x8 using a single Cat5 cable.
Gigabit Ethernet
Switch
A/V source
or
Receiver
Video Wall x 9
PC
Transmitter
Matrix connection
The HDMI AV Matrix Extender provides varied and flexible extension for diversity requirements.
The display of A/V sources or PC can be mixed with matrix switch function through the pair of the
Transmitters and Receivers in the same channel. User can extend the matrix switch up to 16x16 works
with a Ethernet Gigabit Switch/Hub. Please refer to the illustrations below for the connection diagram.
Gigabit Ethernet
Switch
PC
A/V source
Transmitter
Receiver x 8
To Next Page
