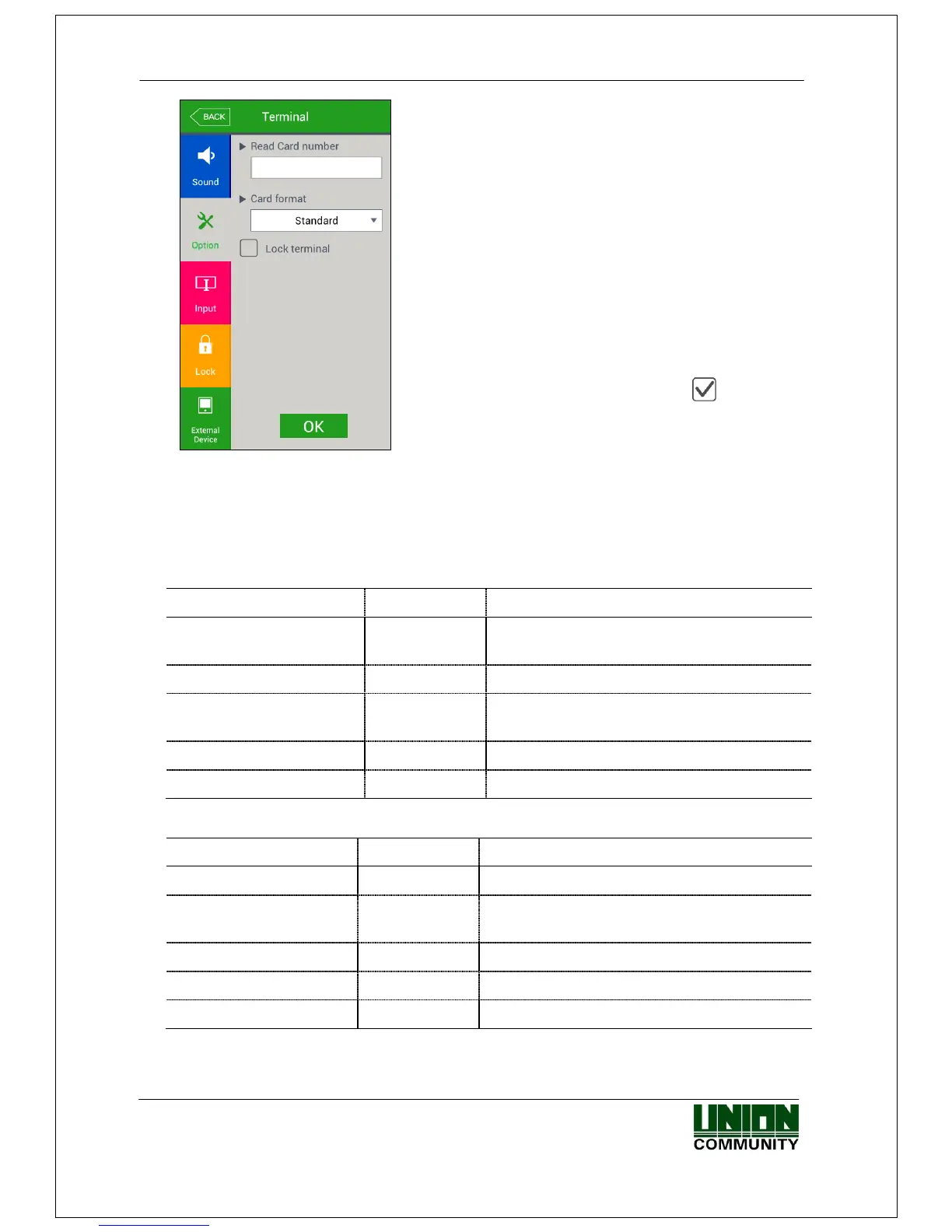

▶ Basic setting : Same with the window at the left
side.
▶ Read card number
If the user put the card on the screen, the card
number is displayed on the LCD. you can change the
[Card format] to check the card number according to
the set value.
▶ Lock terminal
This function enables the administrator to lock or
unlock the terminal directly on the terminal, not on
the server program. If it is checked ( ), none can
access due to the lock until the administrator unlock
the setting.
▶Card format
It determines the representation method of the card number. The card number is changed
according to the following settings. So if you have to change the card expression method,
you should register the card again.
RFcard EX) Card number(5byte): 08h 01h 16h 1Dh D6h
Card format
Card number
Expression
Standard
02207638
(3+5)digits decimal
[022(16h)+07638(1DD6h)]
Hexadecimal
0801161DD6
10digits hexadecimal
10 Digit Decimal
0018226646
Posterior 4byte: 10digits decimal
(01161DD6h)
3,5 Digit Decimal
02207638
Same with [Standard]
6 Digit Hexadecimal
161DD6
Posterior 3byte: 6digits hexadecimal
SCcard example) card number(4byte): 52h 9Dh 06h E3h
Card format
Card number
Expression
Standard
529D06E3
8 digits hexadecimal
Hexadecimal
E3069D52
8 digits hexadecimal with changing the
order of byte
10 Digit Decimal
1386022627
hexadecimal 529D06E3: 10 digits decimal
3,5 Digit Decimal
3808861522
hexadecimal E3069D52: 10 digits decimal
6 Digit Hexadecimal
069D52
Locate the foremost 3bytes backwards.
Click [OK] button to apply the set value, and click [BACK] button to cancel and return.
