General case. It does not use Wiegand out port.
26bit
Because it sends “Sitecode[1byte] + User ID[2 byte]”, set the user ID
less or equal than 4 digits.
Send example) In case of SiteCode:045(2Dh), UID:6543(198Fh)
Æ 1 00101101 0001 1001 10001111 0
l34bit
Because it sends “Sitecode[1 byte] + User ID[3 byte]”, set the user ID
less or equal than 7 digits.
But, if the user ID is 8 digits, ignore sitecode and send only the “User
ID[4byte]”.
Send example) SiteCode:001(1h), UID:123456(1E240h)
Æ 0 00000001 00000001 11100010 01000000 0
User
definition
It is set by the user definition, which only can be set in the server, and
the setting type only can be inquired in the terminal.
Click [OK] button to apply the set value, and click [BACK] button to cancel and return.
3.8.Display settings
3.8.1. Theme

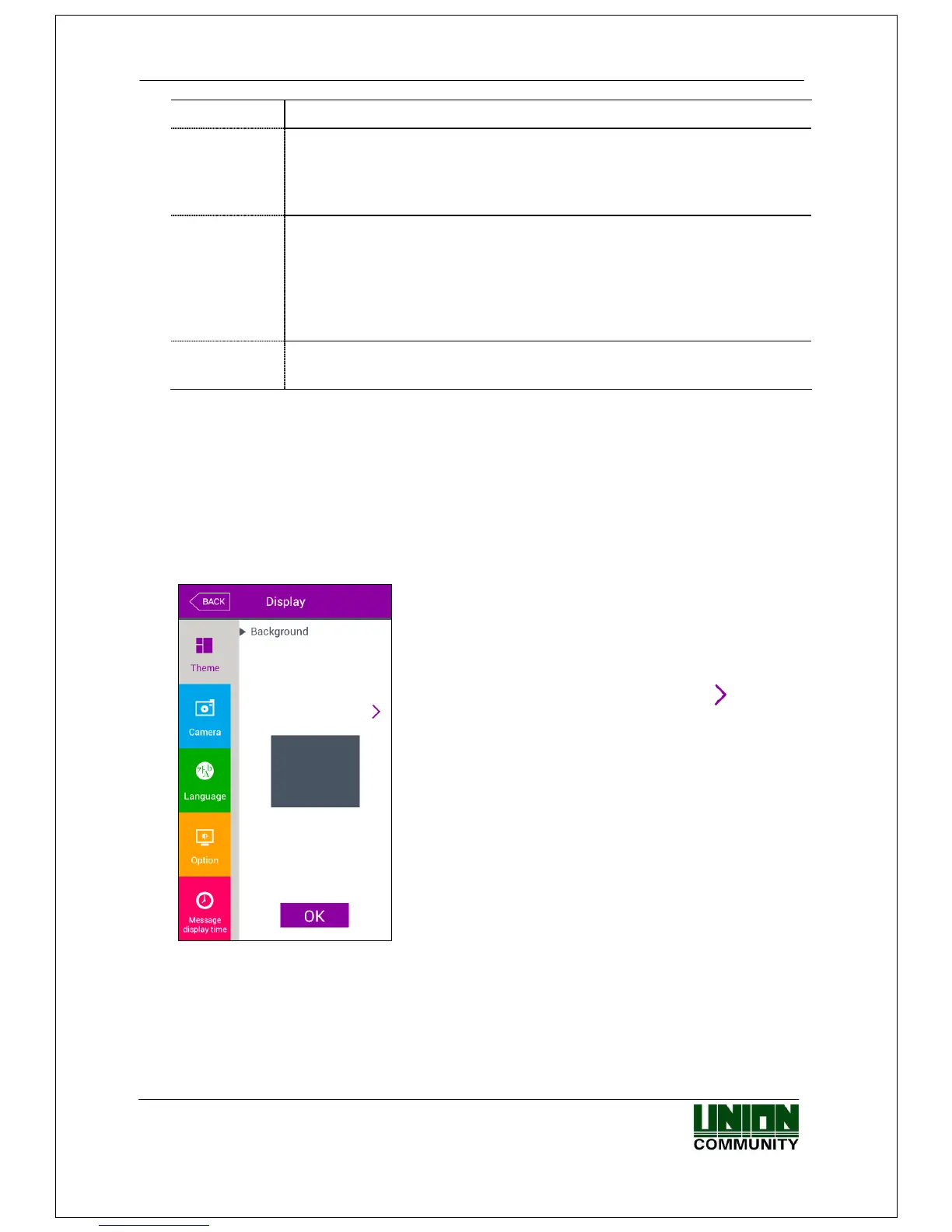

If you select [Display]->[Theme] in the main menu, the following window appears.
▶ Basic setting : Same with the window at the left
side.
▶The main background.
It sets the background of the basic window. You
can inquire the next image by clicking [ ] button.
Click [OK] button to apply the set value, and click [BACK] button to cancel and return. If
you want to set another items, click the menu you want to change at the left side.
