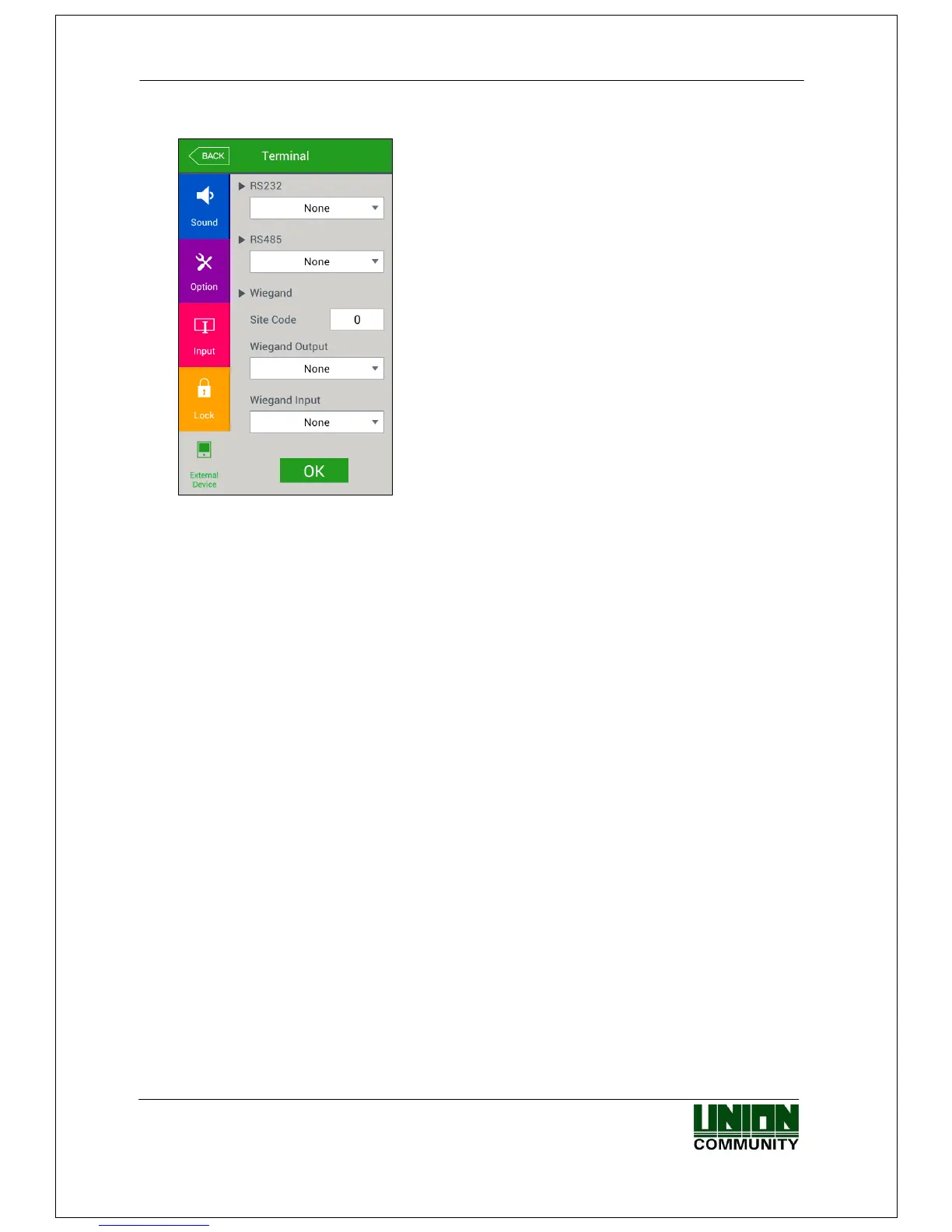

window appears.
▶ Basic setting : Same with the window at the left
side.
▶RS232 option: It sets the device connected to RS232 port
-None: When there is no device connected to the RS232 port
-Ticket Format1/ Ticket Format2: The authorization result is printed when the
authorization is successful. The terminal ID, user ID, authorization time, and
authorization mode are printed by the printer connected to the RS232 port.
The printing format differs as per the setting, and when setting as [Ticket Format2]
the “text for meal printer” which was set from the terminal option, becomes the title
on the top side. The printer used to print ticket is “SRP-350} serial type model.
▶RS485 option: It sets the connecting device to RS485 port.
-None: When there is no device connected to RS485.
-LC010: When LC010 is connected.
-LC015: When LC015 is connected.
-SR100: When SR100 is connected.
▶Site code
It sets the sitecode value sent in Wiegand output below.
▶Wiegand Output
It is used only when the special controller is equipped running by the Wiegand input.
When the authorization is finished, the data of the following format is sent to the
Wiegand port of the terminal.
