Page 19
dump to the screen as one or several ASCII string(s). Use any barcode
printing software, select Code 39 symbology, and use the string(s) to
generate bar code labels. You use this batch setup labels to duplicate
setting to the other scanners.
Dump Settings
If you have settings as the following:
* Device Type is “Keybaordless Wedge”.
* Do not send the check digit of UPC-A and EAN-13.
* Define Preamble as “<F1>”.
* Define Postamble as “<Tab>”.
* Define Label 0 as “START”.
When dumping settings on a PC/AT, you have the following strings:
...I800C06D51DJ8
08080A0O7C005354
415254.

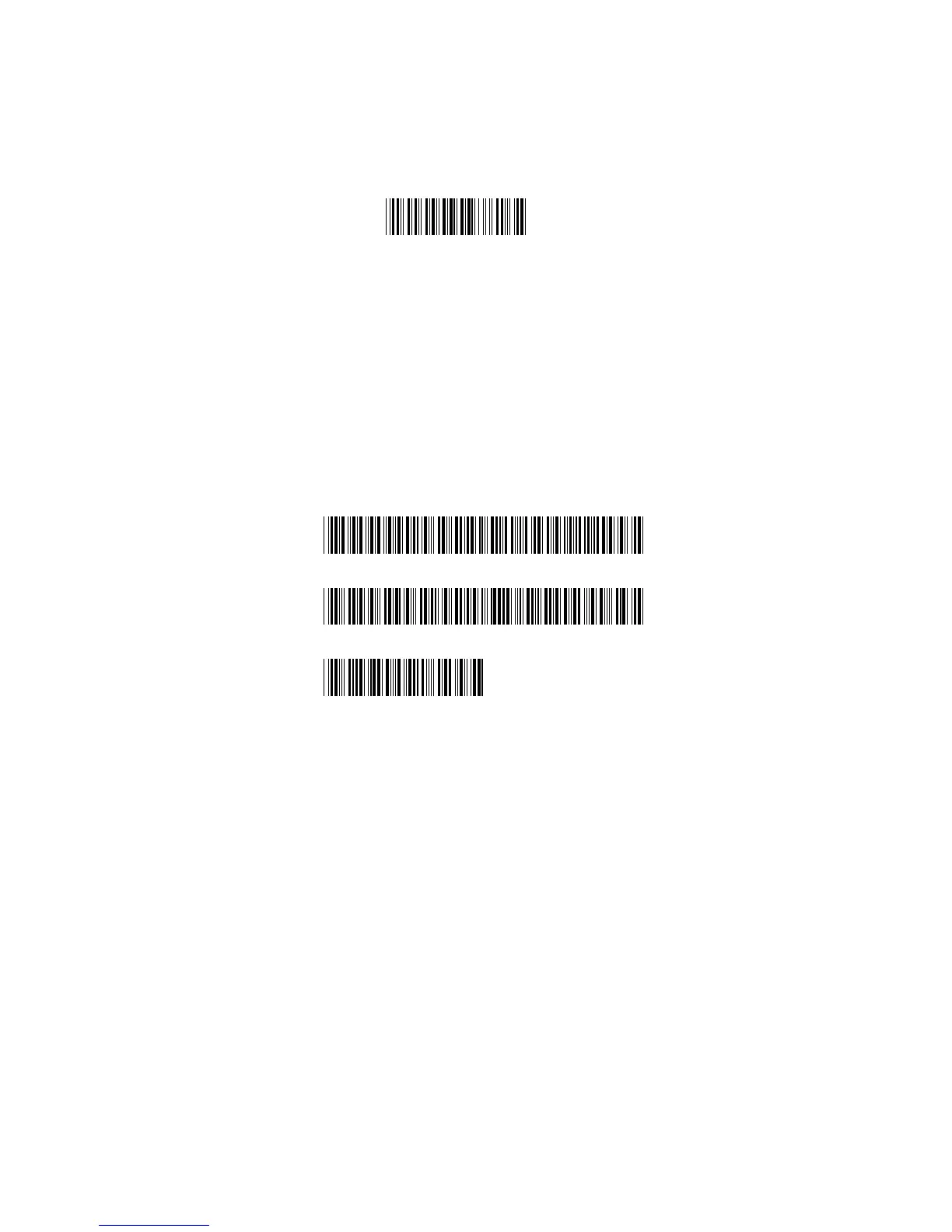

Print into Code 39 bar code labels:
. . . I 800C06D51DJ8
08080A0O7C005354
415254.
By scanning the labels from top to bottom sequentially, you may duplicate
the other scanners with the same settings.
The following issues should be observed:
