Page 33

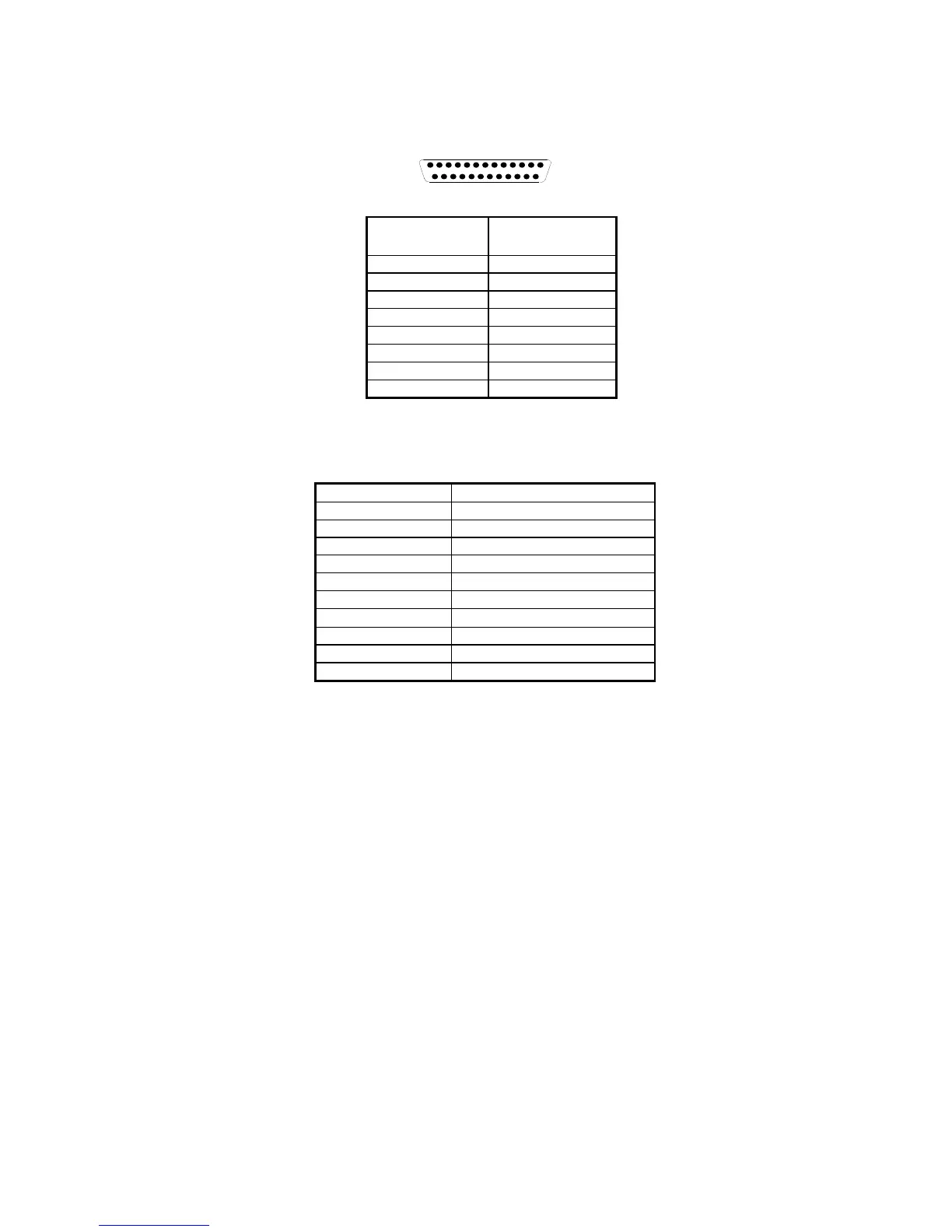

The connector for the terminal is a DB25 male and has following pinout:
DB25 Male (Front View)
1
13
14
25
Pin
Number
Signal
2 RXD
3 TXD
4 CTS
5 RTS
6 DTR
7 GND
8 CD
20 DSR
8.1.4.
Wand Emulation
The pinout on modular connector at the bottom of the scanner is:
Pin Number Signal
1 Not Used
2 VCC (+5V, output)
3 Not Used
4 GND
5 Not Used
6 Bar Code Output
7
Power Input (+5V
±5%) DC
8 Not Used
9 Not Used
10 Not Used
On the other end of the wand emulation cable is a squeeze released DB9
female connector. The pinout for this connector is:
