Unitech MS836 User Manual

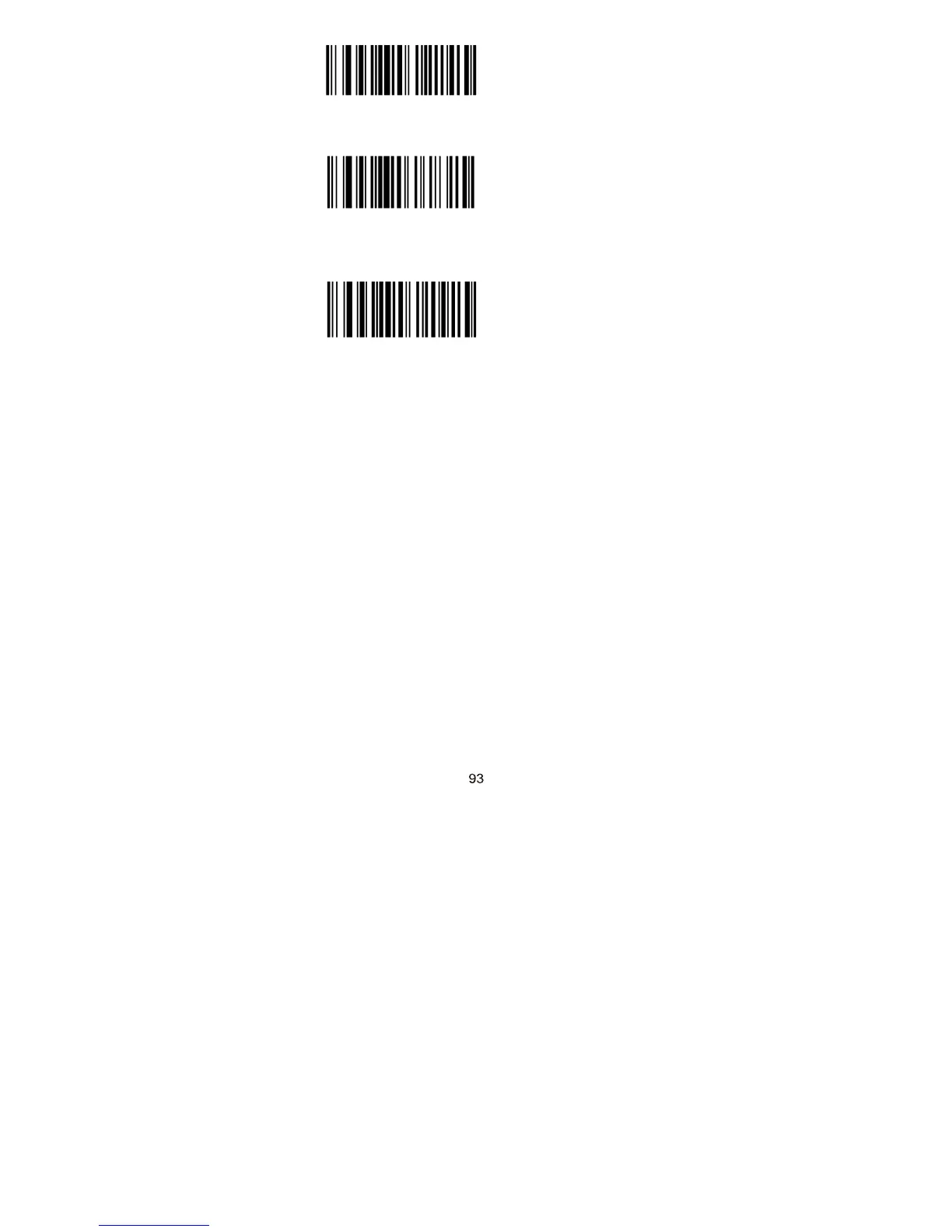

W187400
W187408
*Disable
Do Not Transmit Check Digit
After Verification
W187418
Transmit Check Digit
After Verification
Codabar
A check digit is optional for Codabar and can be
added as the last digit. It is a calculated value used to
verify the integrity of the data.
Disable: The scanner transmits Codabar barcodes as
is.
Do Not Transmit Check Digit After Verification: The
scanner checks the integrity of all Codabar
barcodes to verify that the data complies with the
check digit algorithm. Barcodes passing the check
will be transmitted except the last digit, whereas
those failing it will not be transmitted.
Transmit Check Digit After Verification: The
scanner checks the integrity of all Codabar
barcodes to verify that the data complies with the
check digit algorithm. Barcodes passing the
check will be transmitted, whereas those failing it
will not be transmitted.

Unitech MS836 Specifications

General

Type	Handheld bar code reader
Wavelength	650 nm
Sensor type	Laser
Scanner type	1D
Read rate (max)	100 reads/s
Maximum scan area	220 x 250 mm
Maximum scan width	220 mm
Linear (1D) barcodes supported	Codabar, Code 128, Code 39, EAN-13, EAN-8, GS1-128 (UCC/EAN-128), Interleaved 2 of 5, MSI, U.P.C.
2D (matrix & stacked) barcodes supported	Not supported
Standard interfaces	USB
Connectivity technology	Wired
Power consumption	85 mA
Buzzer	Yes
Certification	CE, FCC
Product color	Black
Housing material	Plastic
International Protection (IP) code	IP42
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	5 - 85 %

Weight and Dimensions

Depth	95 mm
Width	70 mm
Height	160 mm
Weight	150 g
