Unitech MS836 User Manual

Enable 2-Digit Add-On Code/ Enable 5-Digit Add-
On Code: The scanner decodes a mix of EAN-8
barcodes with and without 2-digit/5-digit add-on
codes.
Disable 2-Digit Add-On Code/ Disable 5-Digit Add-
On Code: The scanner decodes EAN-8
and ignores the add-on code when presented with an
EAN-8 plus add-on barcode. It can also decode

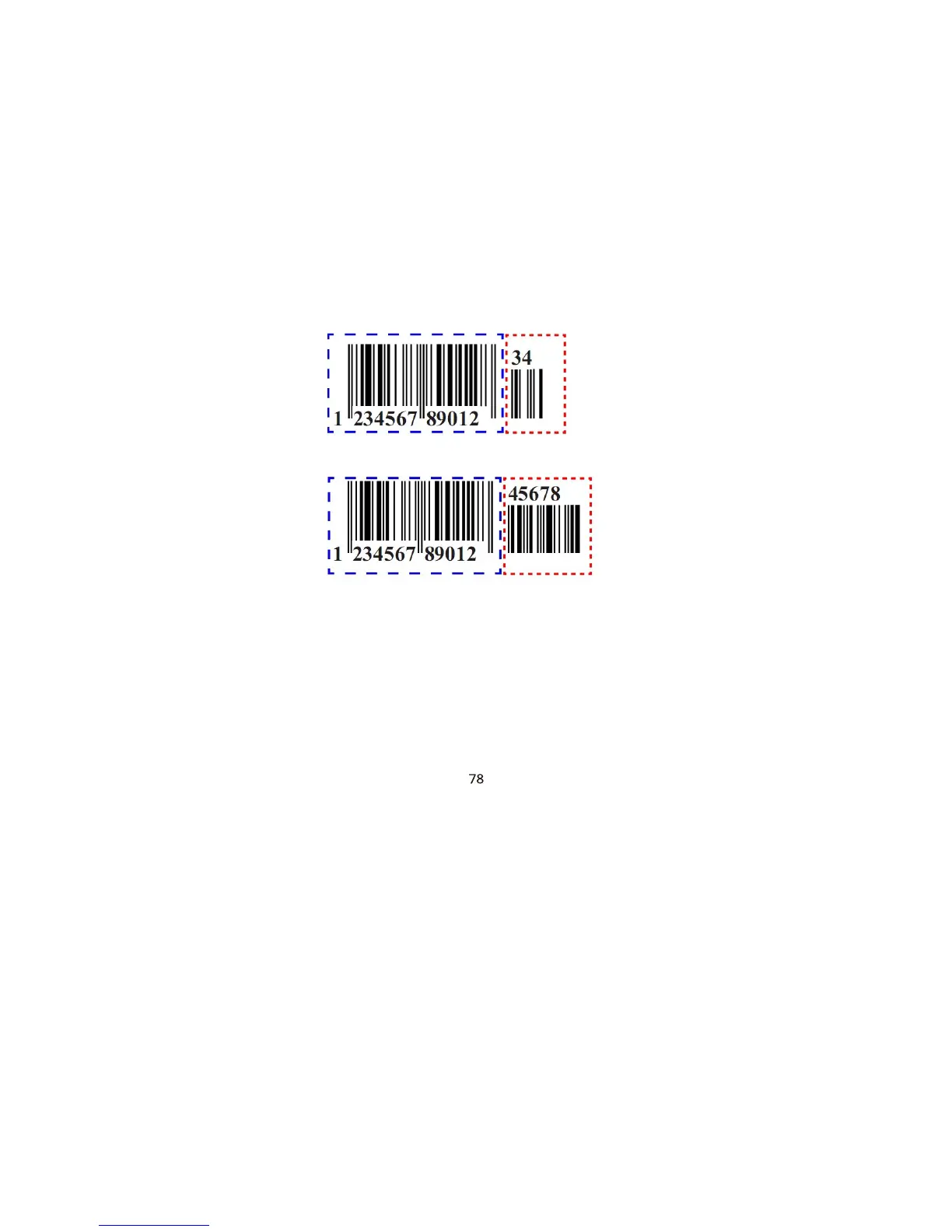

An EAN-13 barcode can be augmented with a two-
digit or five-digit add-on code to form a new one. In
the examples below, the part surrounded by blue
dotted line is an EAN-13 barcode while the part
circled by red dotted line is add-on code.

Unitech MS836 Specifications

General

Type	Handheld bar code reader
Wavelength	650 nm
Sensor type	Laser
Scanner type	1D
Read rate (max)	100 reads/s
Maximum scan area	220 x 250 mm
Maximum scan width	220 mm
Linear (1D) barcodes supported	Codabar, Code 128, Code 39, EAN-13, EAN-8, GS1-128 (UCC/EAN-128), Interleaved 2 of 5, MSI, U.P.C.
2D (matrix & stacked) barcodes supported	Not supported
Standard interfaces	USB
Connectivity technology	Wired
Power consumption	85 mA
Buzzer	Yes
Certification	CE, FCC
Product color	Black
Housing material	Plastic
International Protection (IP) code	IP42
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	5 - 85 %

Weight and Dimensions

Depth	95 mm
Width	70 mm
Height	160 mm
Weight	150 g
