Unitech MS836 User Manual

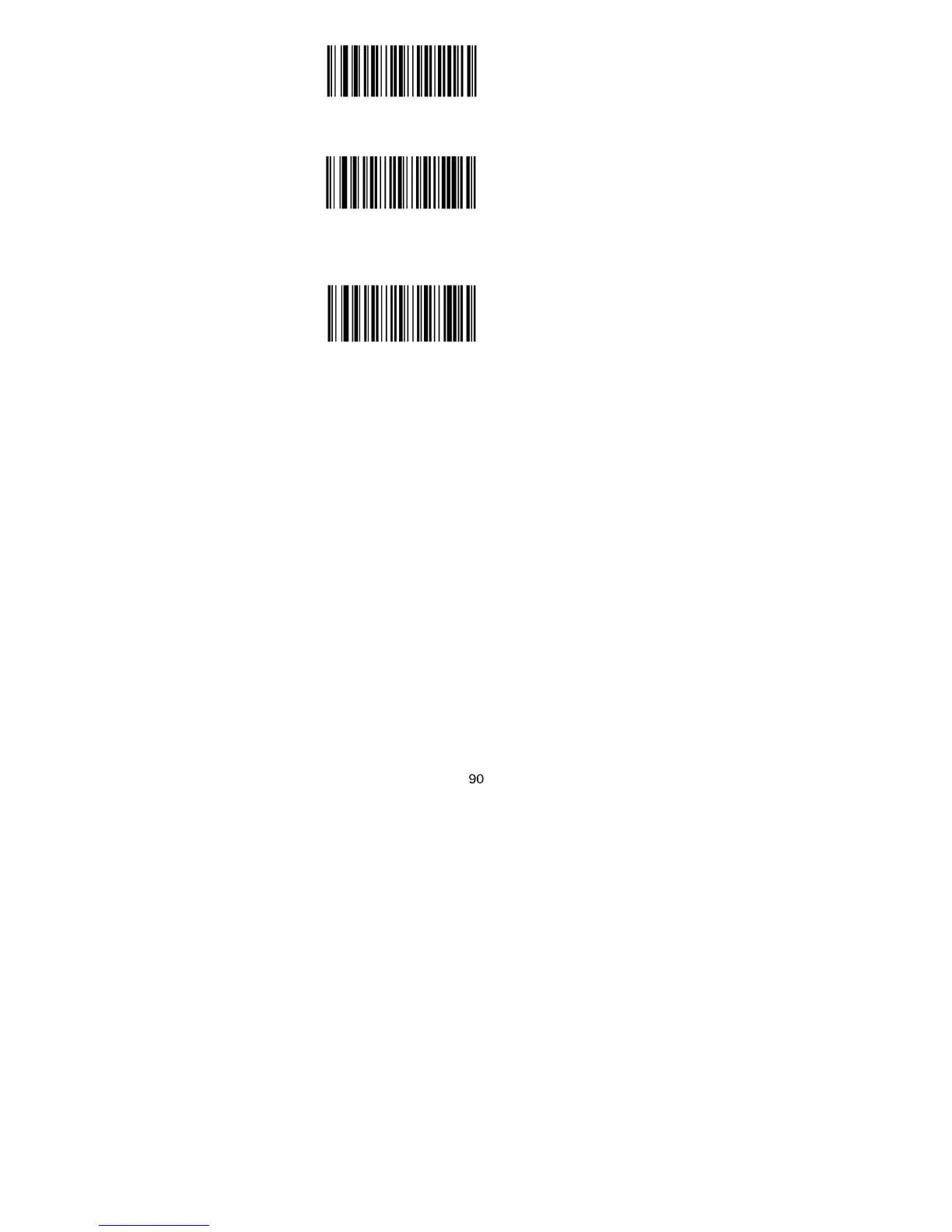

W0C6C00
W0C6C04
Disable
Do Not Transmit Check Digit
After Verification
W0C6C0C
Matrix 2 of 5
Transmit Check Digit
After Verification
A check digit is optional for Matrix 2 of 5 and can be
added as the last digit. It is a calculated value used
to verify the integrity of the data.
Disable: The scanner transmits Matrix 2 of 5
barcodes as is.
Do Not Transmit Check Digit After Verification: The
scanner checks the integrity of all Matrix 2 of 5
barcodes to verify that the data complies with the
check digit algorithm. Barcodes passing the check
will be transmitted except the last digit, whereas
those failing it will not be transmitted.
Transmit Check Digit After Verification: The
scanner checks the integrity of all Matrix 2 of 5
barcodes to verify that the data complies with
the check digit algorithm . Barcodes passing
the check will be transmitted, whereas those
failing it will not be transmitted.

Unitech MS836 Specifications

General

Type	Handheld bar code reader
Wavelength	650 nm
Sensor type	Laser
Scanner type	1D
Read rate (max)	100 reads/s
Maximum scan area	220 x 250 mm
Maximum scan width	220 mm
Linear (1D) barcodes supported	Codabar, Code 128, Code 39, EAN-13, EAN-8, GS1-128 (UCC/EAN-128), Interleaved 2 of 5, MSI, U.P.C.
2D (matrix & stacked) barcodes supported	Not supported
Standard interfaces	USB
Connectivity technology	Wired
Power consumption	85 mA
Buzzer	Yes
Certification	CE, FCC
Product color	Black
Housing material	Plastic
International Protection (IP) code	IP42
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	5 - 85 %

Weight and Dimensions

Depth	95 mm
Width	70 mm
Height	160 mm
Weight	150 g
