Unitech MS842P User Manual

19

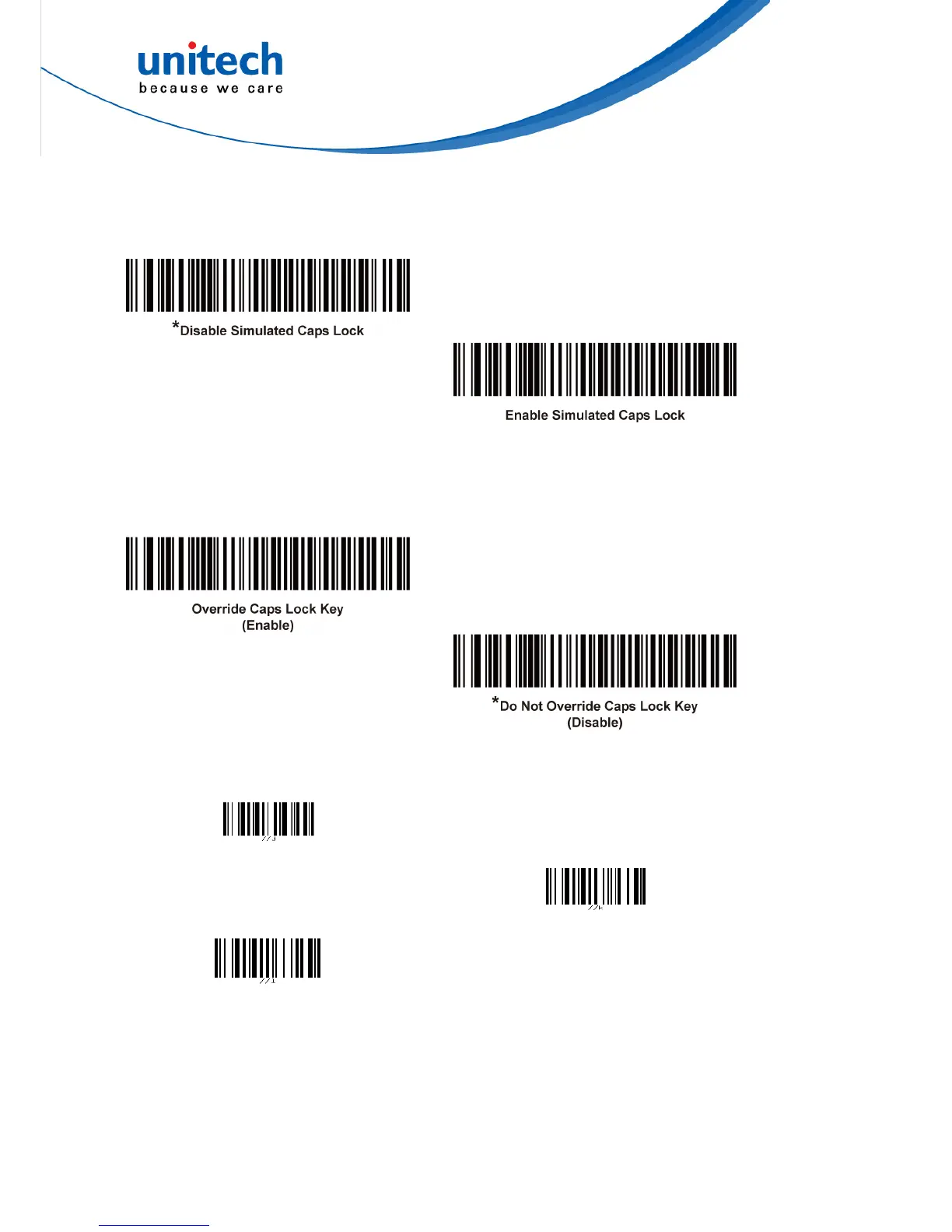

Simulated Caps Lock
Enable this to invert upper and lower case characters on the bar code as if the
Caps Lock state is enabled on the keyboard. This inversion occurs regardless of
the keyboard’s Caps Lock state. Note that this only applies to alpha characters.
USB CAPS Lock Override
This option applies only to the HID Keyboard Emulation device. Enable this to
preserve the case of the data regardless of the state of the Caps Lock key. This
setting is always enabled for the Japanese, Windows (ASCII) keyboard type and
cannot be disabled.
Note: If both Simulated Caps Lock and Caps Lock Override are enabled, Caps Lock Override
takes precedence.
Dongle HID Keyboard Case
Auto Trace
To Lower
To Upper

Unitech MS842P Specifications

General

Type	Handheld bar code reader
Sensor type	CMOS
Scanner type	1D/2D
Tilt reading angle	-60 - 60 °
Linear (1D) barcodes supported	Codabar, Code 11, Code 128, Code 25 (IR 2 of 5), Code 39, Code 93, EAN-13, GS1-128 (UCC/EAN-128), JAN, MSI, Telepen, Trioptic, U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code, Composite Codes, Data Matrix, MaxiCode, Micro QR Code, PDF417, QR Code, TLC-39
USB version	2.0
Wireless range	10 m
Operating frequency	2400 MHz
Standard interfaces	Bluetooth, USB
Connectivity technology	Wired & Wireless
Certification	CE, FCC, BSMI, VCCI
Product color	Black, Grey, Yellow
Housing material	-
International Protection (IP) code	IP54
Battery life	10 h
Charging time	4 h
Input voltage	5 V
Battery capacity	1620 mAh
Power consumption	400 mA
Power source type	DC
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Depth	74 mm
Width	89 mm
Height	176 mm
Weight	200 g
Base dimensions	73 x 95 x 200 mm
