Unitech PA500 User Guide

Chapter 5 Customizing PA50072

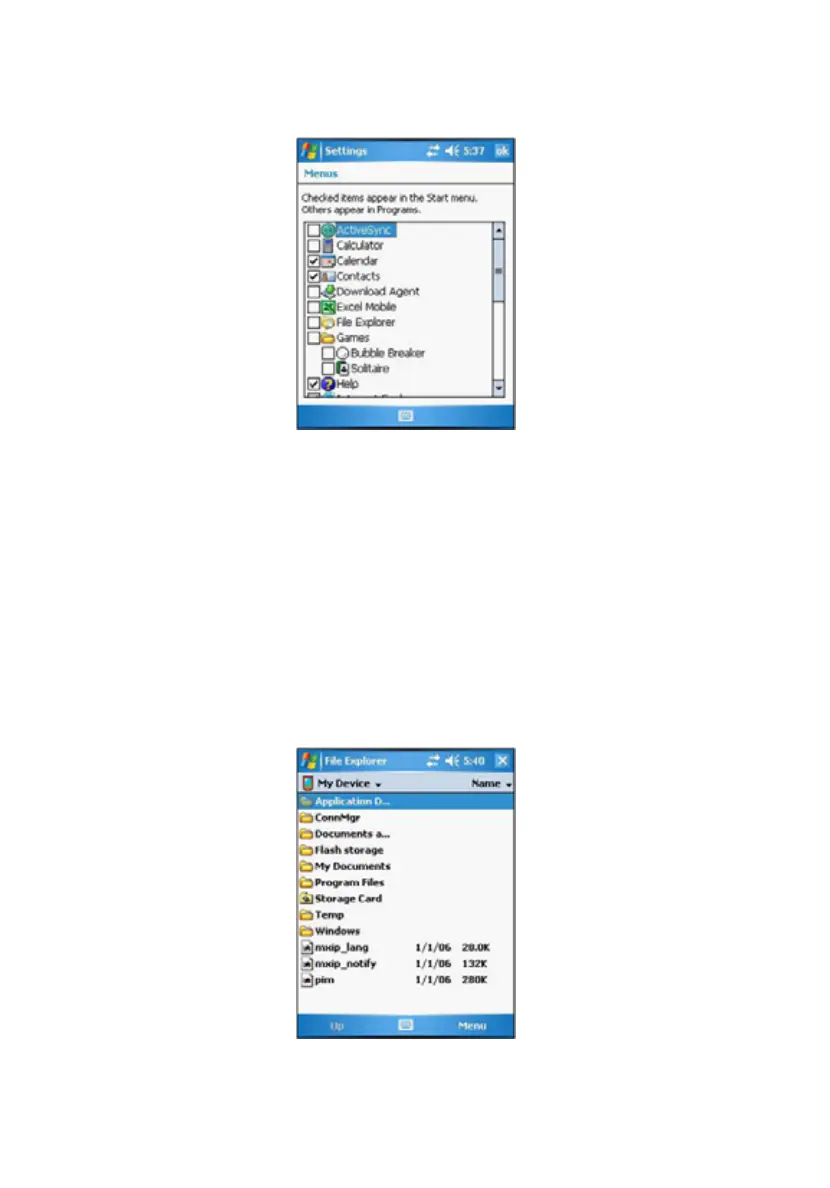

2 On the Personal tab, tap Menus.
3 Select the check box for the programs you wish to add.
If you do not see the program you want, you can either use File
Explorer on your device to move the program to the Start Menu folder,
or use ActiveSync on your computer to create a shortcut to the
program and place the shortcut in the Start Menu folder.
4 Tap OK.
To add a program to the Start menu program using File Explorer on your
device:
1 Tap Start > Programs > File Explorer.
2 Tap the My Device icon (tap the folder list, labeled My Documents by
default, and then My Device to see a list of all folders on your device).

Unitech PA500 Specifications

System Memory

SDRAM	64 MB
Flash ROM	64 MB

Display

display resolution	240x320 QVGA
display type	Color Transflective TFT
touch screen	yes

Laser Bar Code Scanner

scan rate	104 scans/sec ± 12 scans/sec
scan angle default	47°±3°
scan angle reduced	35°±3°

Power

main battery voltage	3.7 V
main battery capacity	2200 mAh
rechargeable time	3.5 hours

Operating Environment

operating temperature	32°F to 122°F (0°C to 50°C)
storage temperature	-4°F to 140°F (-20°C to 60°C)
relative humidity	5% ~ 95% (non-condensing)

Weight and Dimensions

weight with battery and scan engine	Under 213 g
length	126 mm
height	23 mm
