Unitech PA600 User Manual

C H A P T E R 5
U N I T E C H P A 6 0 0 C O M M U N I C A T I O N S
37
Match this IP on the Unitech PA600
Now, you must enter the same IP address on the PA600 through ITScriptNet.

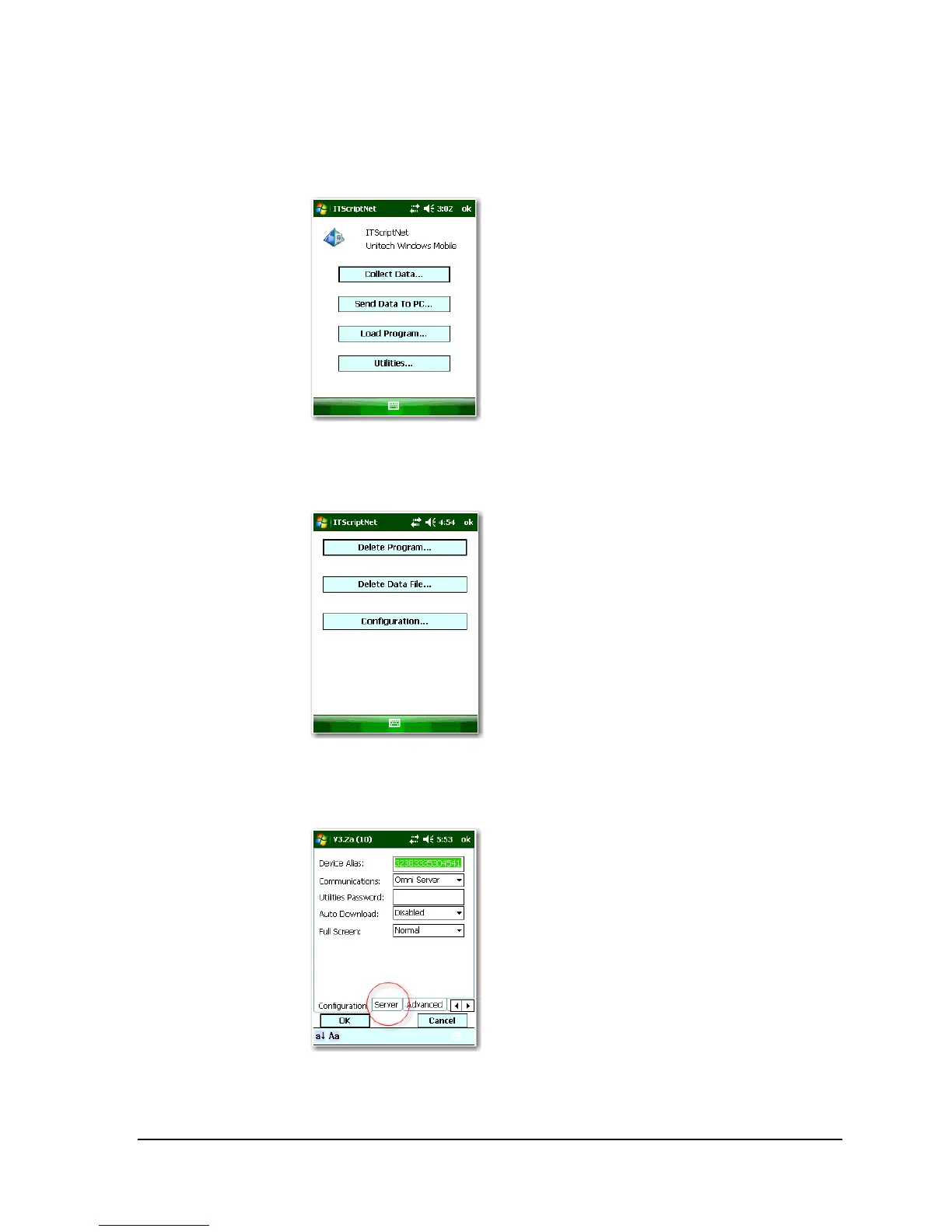

On the PA600, access the ITScriptNet Main Menu.
Then tap the Utilities button, followed by the Configuration button.
Select the Server tab.

Unitech PA600 Specifications

System Memory

SDRAM memory	64 MB
Flash ROM	128 MB
Flash ROM with WWAN	320 MB

Display

display resolution	240x320 QVGA
display type	Color Transflective TFT
touch screen	Yes

Power

main battery	3.7V 1950mAh Li-Ion Battery Pack
backup battery	One Rechargeable Ni-MH Backup Battery
power source	Main Battery

Operating Environment

operating temperature	32ºF to 122ºF (0ºC to 50ºC)
storage temperature	-4ºF to 140ºF (-20ºC to 60ºC)
relative humidity	5% ~ 95% (non-condensing)

Weight and Dimensions

weight	290g with Battery & Scan Engine
length	149.5 mm
height	26.6 mm
