12
OPERATIONS MANUAL Rev. 1.4

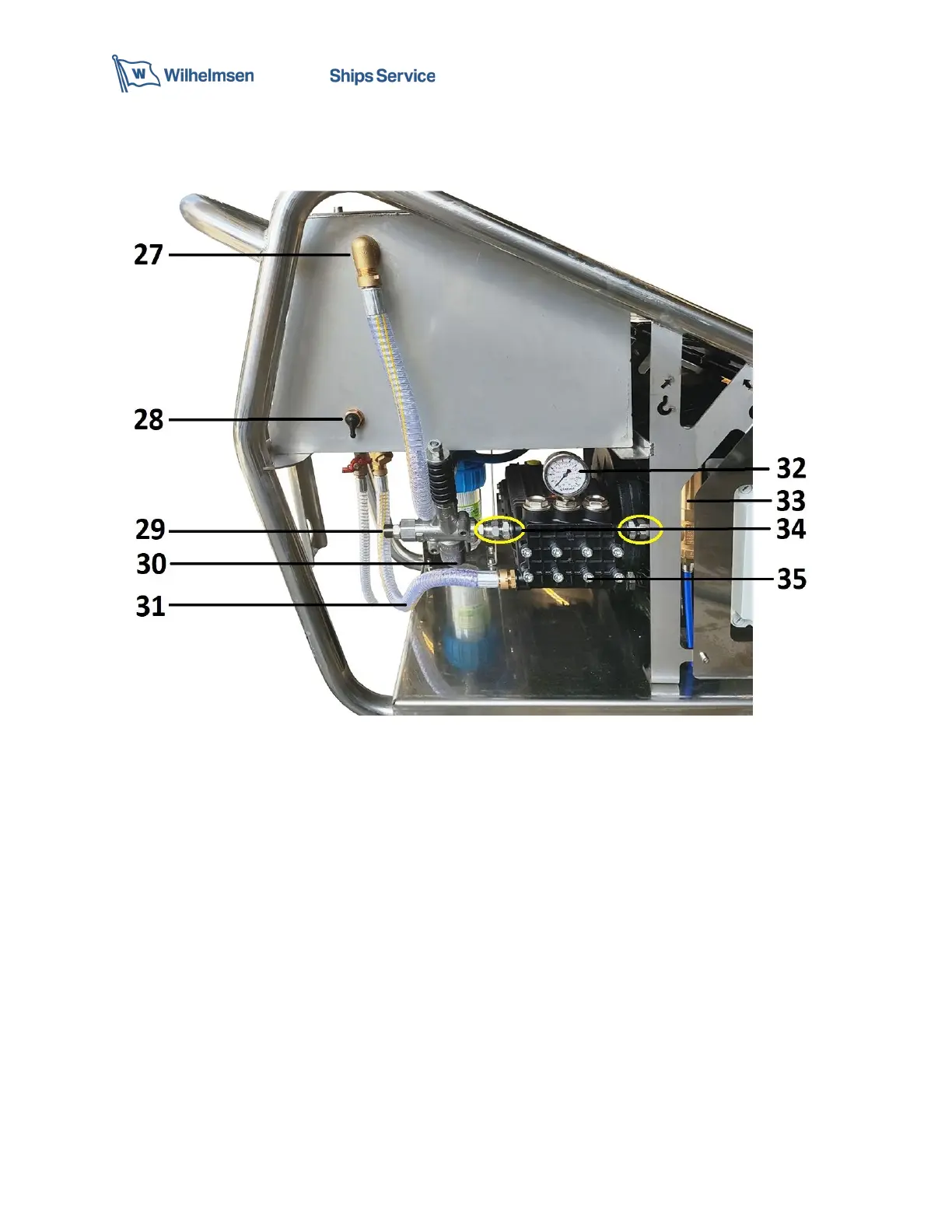

27. Water tank inlet
28. Thermal valve
29. HP outlet fitting, 24mm
30. Unloader – bypass valve
31. LP hose from tank to pump
32. High pressure gauge
33. Safety valve with drain hose
34. High pressure connection set (x2)
35. High pressure pump
