OPERATIONS MANUAL Rev. 1.4

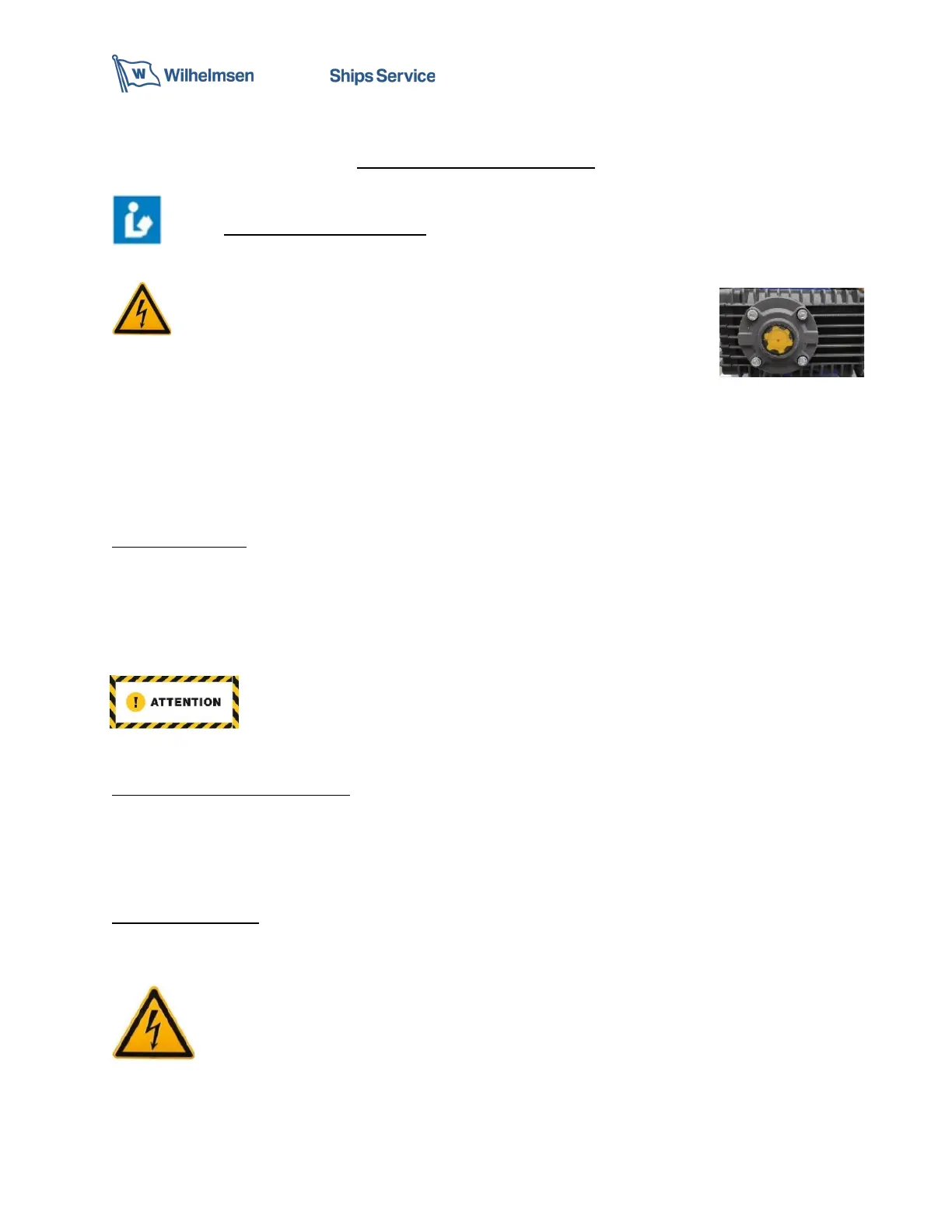

Operating the machine
Check points before start-up
• Place the high-pressure cleaner on a plain and secure it against rolling.
• Check the oil level of the high-pressure pump. If it is too low, refill oil.
(Pump oil specification: SAE 15W40 ISO VG100 DIN 51524)
• Maximum oil level from the high-pressure pump is on the top mark of
the oil dip stick or in the middle of the window.
• Do not overfill the pump with oil.
• Electrical mains voltage/frequency should be the same with the electrical data of the
machine. Recommended ship-side breaker: 50A, class D or K.
• Check general condition of the machine and accessories to be in good order (cable,
power & water connectors, hoses, handle, lance, nozzle etc.)
Attention: Use only original nozzles with the machine.
Water connections
Connect the water intake hose on the high-pressure cleaner.
Connection installed ¾’’ with GEKA coupling.
Always secure sufficient water supply, keep it well above the operational water flow. Minimum input
feed water requirement is an average of 22 liters/minute or 1320 liters/hour
Insufficient water supply will cause machine to stop.
Connection of high-pressure hose
Screw the female M22 coupling to the high-pressure outlet of the machine, use two spanner size 27 to
fasten. The male 3/8” coupling must be screw to the inlet swivel of the spray handle, use one spanner
size 22 and one 24.
Electrical connection
The voltage shown on the motor plate should correspond to the source.
1. 380 V/50 Hz/3 ph – max 50 A
2. 440 V/60 Hz/3 ph – max 50 A
Use the correct dimension of electric cable wire in case you connect an extension cable.
For cable extension lengths up to 50mtr, the cross section of the wire to be used is
6mm
2
.
