16
OPERATIONS MANUAL Rev. 1.4

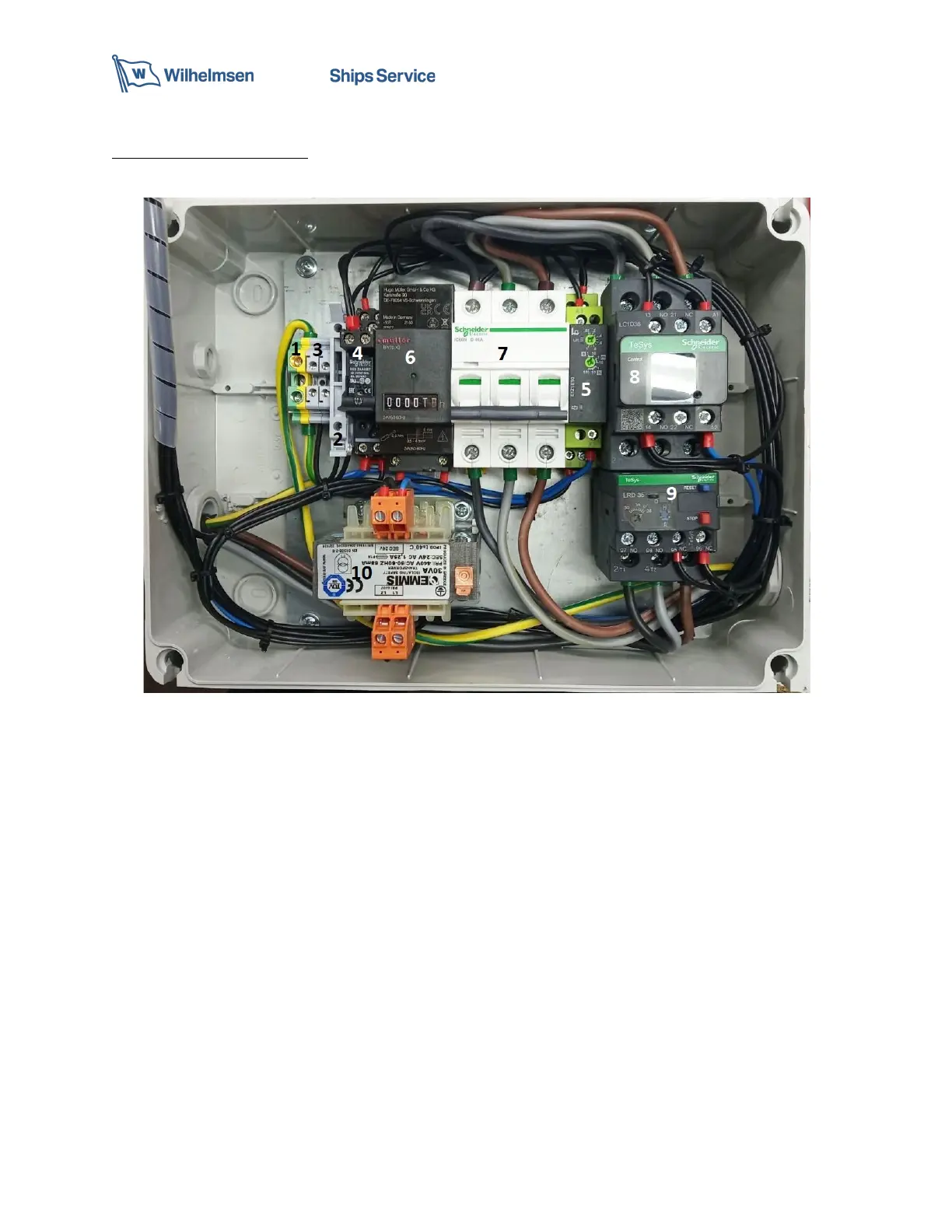

Electrical Control Cabinet
1. Terminal ground 6mm
2
2. Fuse Terminal
3. Terminal 4mm
2
4. Mini relay with base
5. Timer
6. Hour meter
7. Breaker 3P
8. Relay 38A
9. Thermal relay
10. Transformer 440V / 24V
