3 CREATING CONFIGURATI ON FILE AND CONFIGURATING THE PLC

3.1 UniBACnet configurator

UniBACnet configurator is a tool provided Unitronics that allows the user to create the configuration file for the GW-

BAC1 easily. Once created, the configuration file should be downloaded to the GW-BAC1 in order to enable it to

communicate with the Unitronics PLC. The UniBACnet configurator can be launched from both the VisiLogic and

UniLogic programing applications Tools menu.

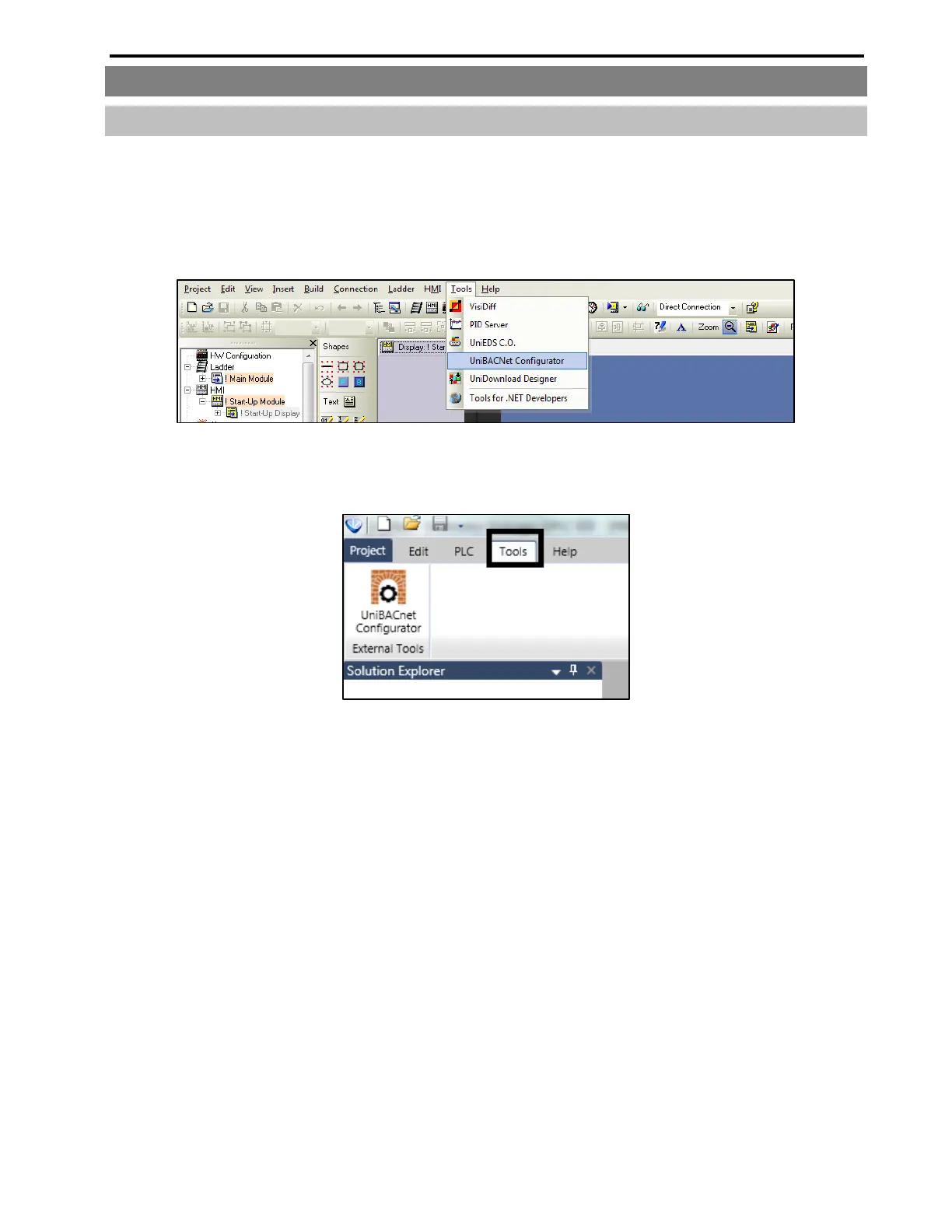

Figure 9: Tools menu on VisiLogic

Figure 10: Tools menu on UniLogic
