Unitronics
o
Select
full Diagnostic

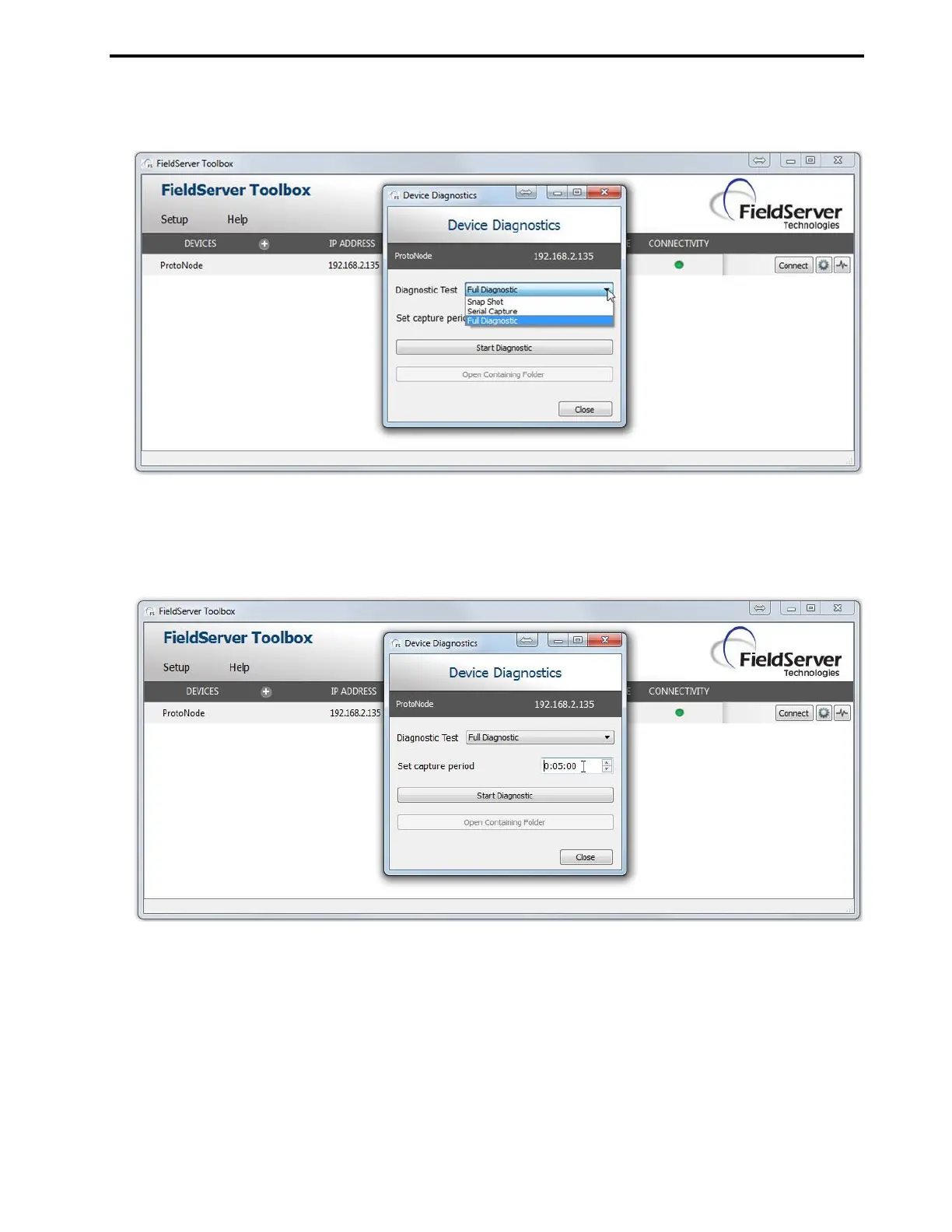

Figure
32
: Diagnostic selection
o
If desired, the default cap
ture period can
be changed.
o
Click on Start Diagnostic.
Figure
33
:
Diagnostic tool
–
start diagnostic
Wait for Capture period t
o finish. Diagnostic Test Co
mplete window will appear.
Continue to step 2.
