Installation Guide 10/06
Unitronics 3

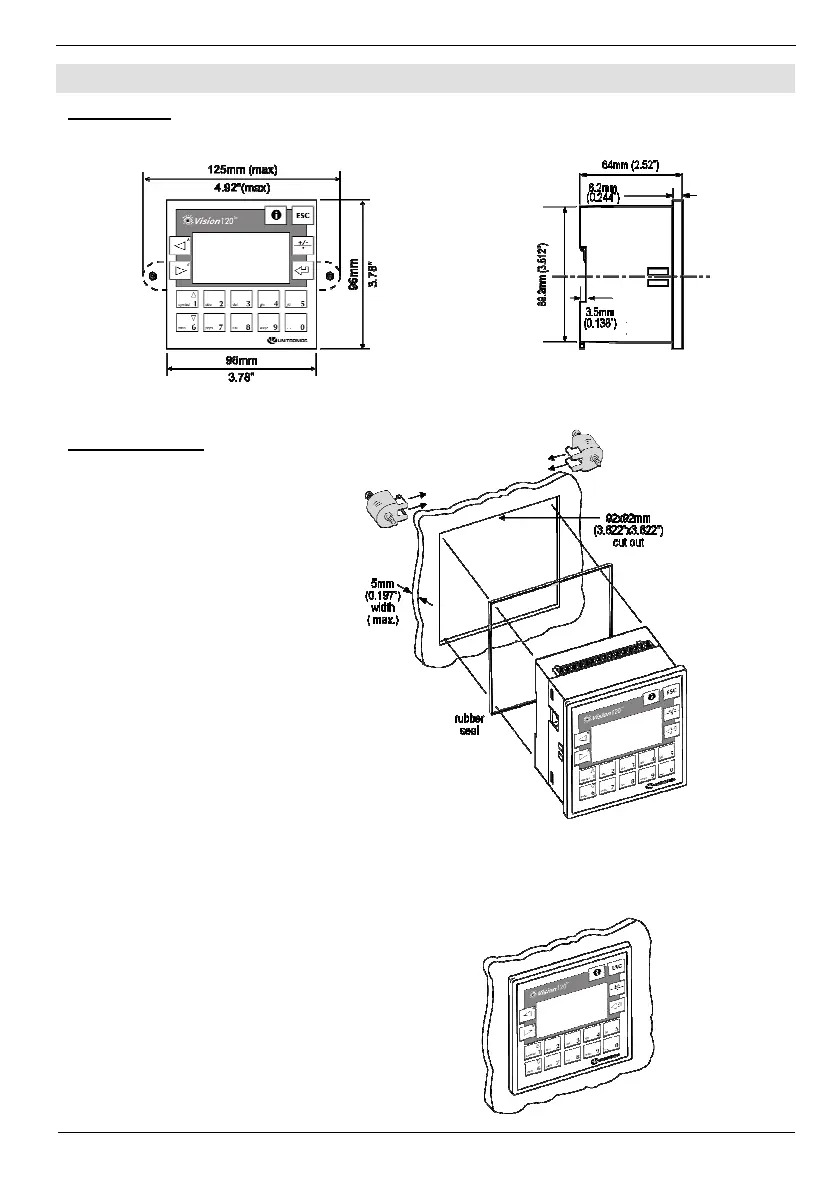

Mounting
Dimensions
Panel mounting
Before you begin, note that the
mounting panel cannot be more
than 5 mm thick.
1. Make a panel cut-out
measuring 92 x 92 mm
(3.622” x 3.622”).
2. Slide the controller into the
cut-out, ensuring that the
rubber seal is in place.
3. Push the 2 mounting brackets
into their slots on the sides of
the controller as shown in the
figure to the right.
4. Tighten the bracket screws
against the panel. Hold the
bracket securely against the
unit while tightening the
screw.
5. When properly mounted, the
controller is squarely situated
in the panel cut-out as shown
in the figure to the right.
