Universal Audio Apollo Twin X User Manual

Apollo Twin X Hardware Manual Controls & Connectors 22
Top Panel

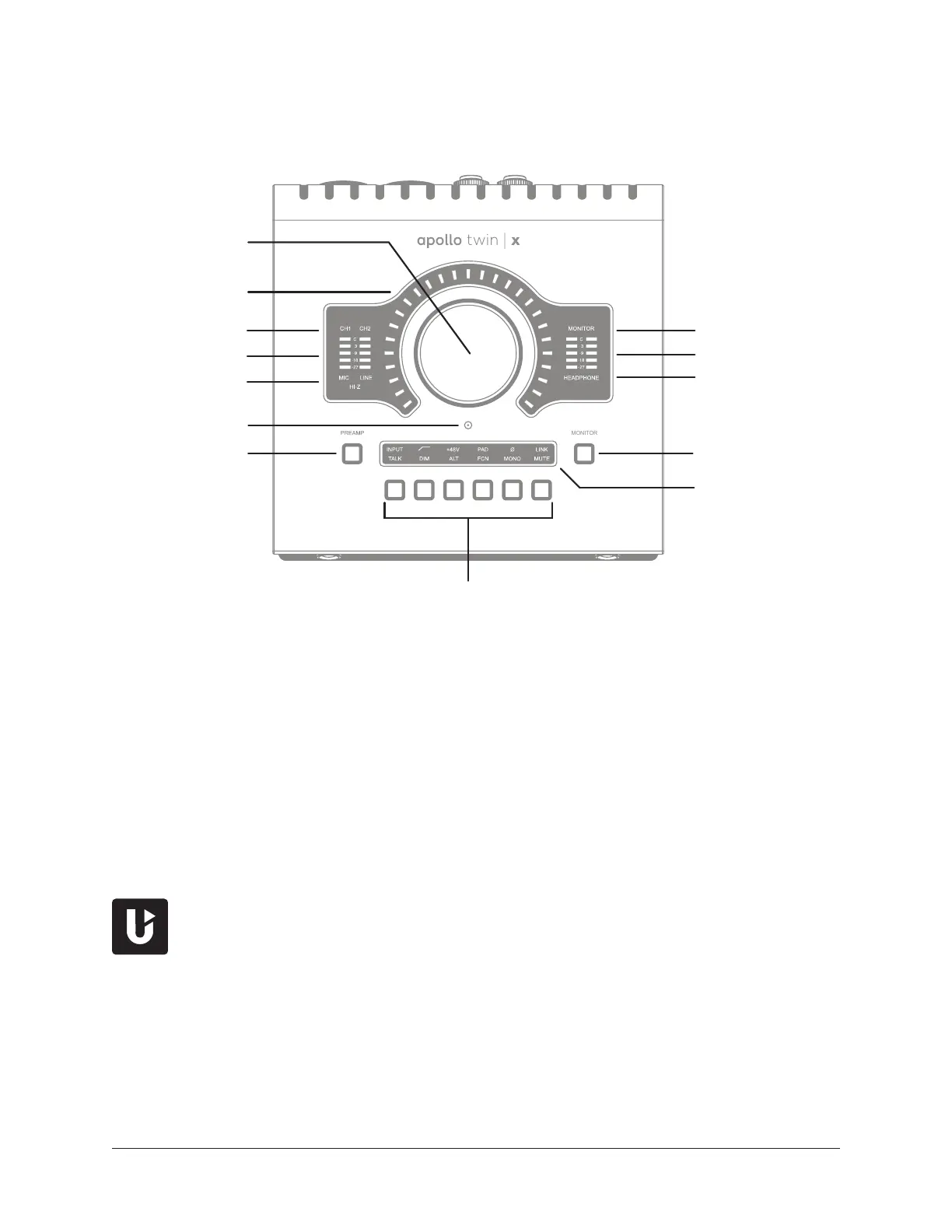

Refer to the illustration below for numbered control descriptions in this section.
Top panel elements
(1) Level Knob
The Level knob controls multiple functions. The knob’s current function is selected with
the PREAMP (7) and MONITOR (11) buttons.
When in PREAMP Mode, rotate clockwise to increase the amount of preamp gain for
the currently selected input channel (3). When in MONITOR Mode, rotate clockwise to
increase the monitor or headphones volume, depending on the stereo output currently
selected (8 or 10) with the MONITOR (11) button.
Unison Integration
The Level knob can also be used to control Unison-enabled UAD preamp,
guitar/bass amp, and pedal plug-in parameters. See the Apollo Software Manual
for complete Unison details.
(2) Preamp Gain & Volume Level Indicator LEDs
The LEDs surrounding the Level knob indicate the relative level of the selected function
(either input channel preamp gain or monitor/headphone volume).
Note: The Volume Level Indicator LEDs are RED when MONITOR (8) is selected
and MUTE (13-l) is enabled.
MONITOR
1
2
7
6
11
13
3
4
5
8
9
10
12

Universal Audio Apollo Twin X Specifications

General

Type	Audio Interface
Connectivity	Thunderbolt 3
Headphones	1 x 1/4"
AD/DA Conversion	24-bit/192kHz
Simultaneous I/O	10 x 6
Number of Preamps	2
Input Channels	2
Output Channels	4
UAD Plug-in Support	Yes
Monitor Outputs	2
Inputs	2 x XLR/TRS combo, 1 x Hi-Z Instrument
Outputs	2 x Monitor, 2 x Line
Phantom Power	Yes
Weight	2.35 lbs
Digital Inputs	1 x Optical Toslink (ADAT/SPDIF)
UAD Plug-in Processing	Realtime UAD Plug-in Processing
Included Software	Realtime Analog Classics Plus plug-in bundle
Operating System	Mac, Windows
Thunderbolt Connectivity	Yes (Thunderbolt 3)
DSP Processing	UAD-2
