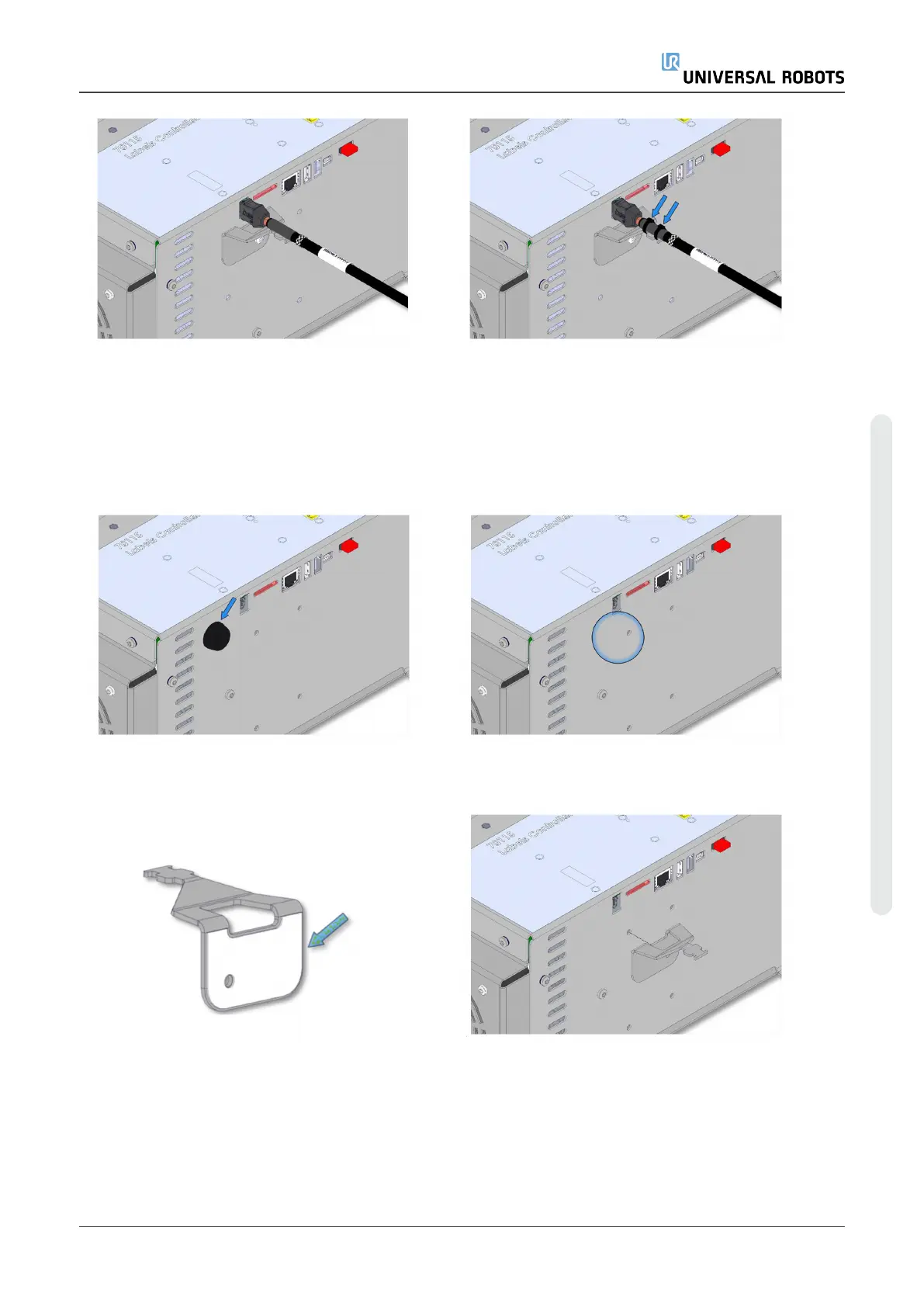

7.Connect TP cable 8.Secure the TP cable with the included zip ties
10.2. OEM Control Box DC
To install and use the cable strain relief bracket
1.Remove grommet
2.Clean area with alcohol solution and allow the
alcohol to evaporate.
3.Remove protective film from adhesive patch 4.Align the bracket using the screw hole
Installation Guide OEM Control Box
Copyright © 2019–2024 by UniversalRobotsA/S. All rights reserved.
