MSC-400 Reference Manual
Rev 4
71

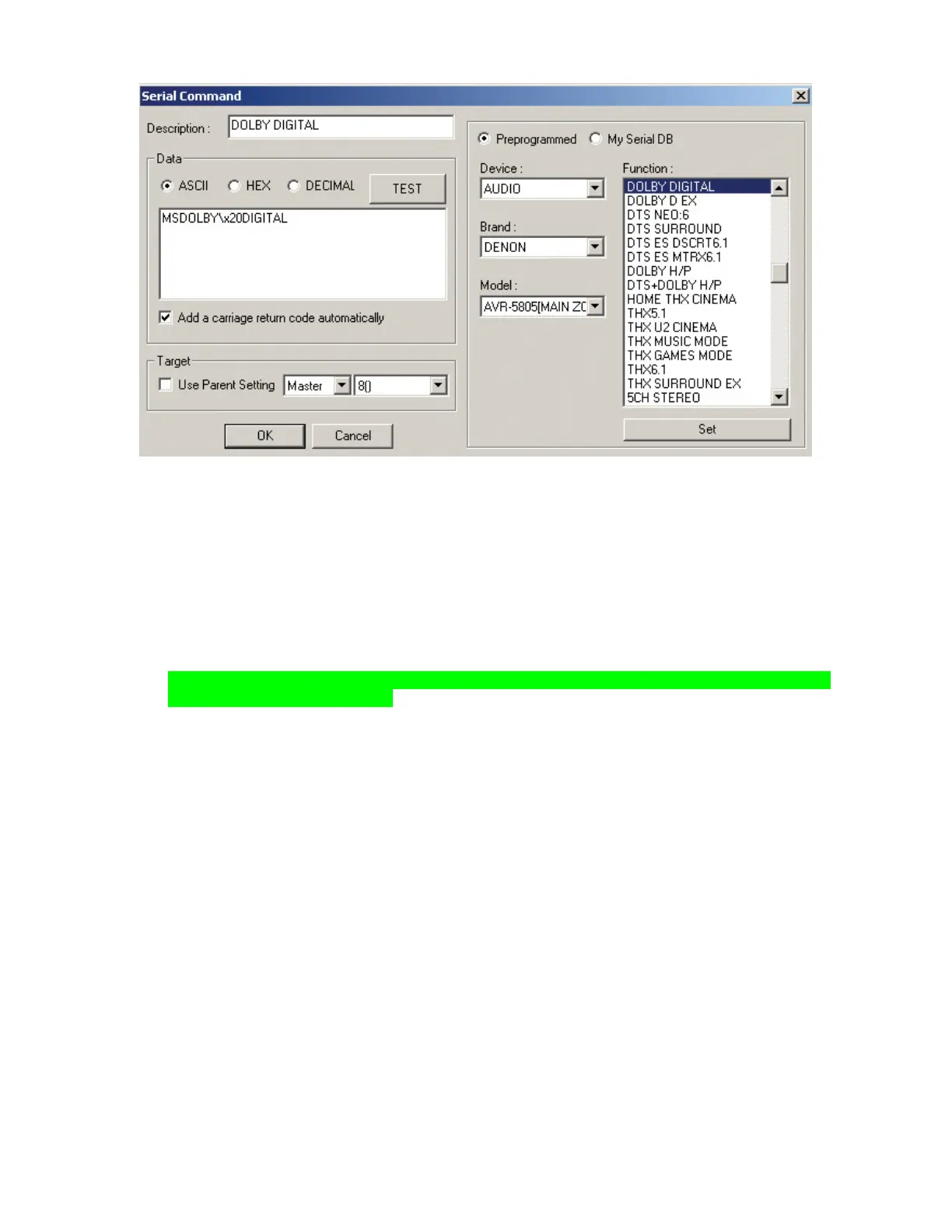

3. If a command IS available in the SERIAL DATABASE:
a) Select the DEVICE (DVD, CD, Audio [receiver/preamp], etc) using the pull-down.
b) Select the BRAND using the pull-down.
c) Select the MODEL using the pull-down.
d) Scroll the FUNCTION LIST, click the desired FUNCTION.
e) Click the SET BUTTON. The COMMAND DATA will appear in DESCRIPTION, the TYPE OF
DATA will be SELECTED, the STRING will appear in the DATA BOX and when appropriate ADD
CARRIAGE RETURN will be SELECTED.
f) In the TARGET BLOCK, select MASTER/SLAVE and SERIAL PORT as appropriate.
g) To test, with the PC connected to the MSC-400 USB1 PORT, and the DEVICE connected to the
proper MSC-400 SERIAL PORT, click the TEST BUTTON.
NOTE - Serial Port Settings must be downloaded to the MSC-400 before attempting to test
Embedded RS232 Commands.
h) Click OK. The command will appear in the SMART MACRO FUNCTION LIST, where it can be
moved and used in SMART MACROS and IF/ELSE STATEMENTS as with any other command.
